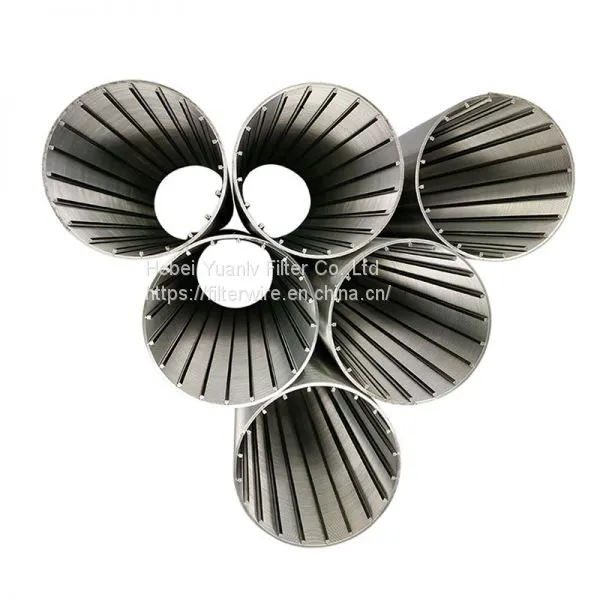

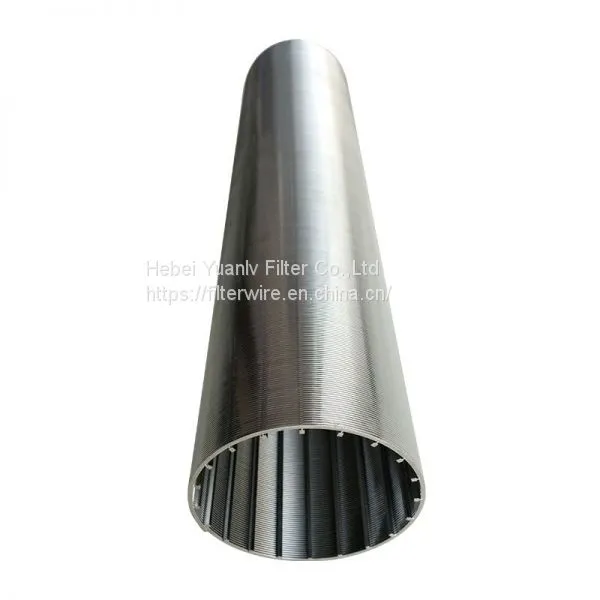

SS Wedge Wire Wrapped Screen Tube
- 10 Unit / Units per Month
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 5 micro pp filter cartridge for pre filter
- Vacuum Pump Exhaust Filter 71064773 for Leybold SV300 SV630
- Vacuum Pump Oil Mist Filter 71421180 for Leybold SV40B SV40BI
- R5 RA0100F Vacuum Pump Exhaust Filter 0532140157 Oil Mist Separator
- washable air filters
- Air Breather HY-GLQL-001 for India Power Plant
Product Description
SS wedge wire wrapped screen tube is a mechanical self-cleaning device that was developed to meet the growing need and demand for an efficient and economical method of removing suspended solids from mixed liquid streams. The continuous and self-cleaning effect of the rotating screens makes it possible to use higher flow capacities than those of any other type of screen thus resulting in substantial savings with respect to both investment and maintenance.
Wrapped screen tubes can be used for conventional filtration, outside-in and reverse filtration, inside-out. The fine wire typically used maximizes the open area. Various fitting options are available with cartridges to help incorporate it into almost any process.
Application of SS Wedge Wire Wrapped Screen Tube
The wedge wire wrapped screen tubes are mainly used for the water-treatment, water well drilling, oil well drilling, mineral processing, coal-cleaning plant, sewage treatment and other industries, water, oil or gas filter, and other filtration equipment.
Specifications of SS Wedge Wire Wrapped Screen Tube:
Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
OD Range | 19mm-2000mm | ||||||
ID Range | 13mm-1981mm | ||||||
Length Range | Up to 6000 mm | ||||||
Slot Range | 20 micron to 3000 microns (Tolerance:+-5 micron) | ||||||
Wedge Wire | 0.5x1.5 | 0.75x1.5 | 1x2 | 1.5*2 | 2x3 | 2*4 | 3*5 |
Support Rod | 1.5x2.5 2x3 | 1.5x2.5 2x3 | 1.5x2.5 2x3 | 1.8*2.5 2x3 | 2x3 2x4 3x5 3x6 3x10 4x7 | 2x4 3x5 3x6 3x10 4x7 5x6 | 3x5 3x6 3x10 4x7 5x6 5x8 |
End Finishing | Thread fitting, Flange, Closed Plated, Resistance welded closed plate, Metal Ring, etc | ||||||
Note | Customized According To Requirement |
The different Filtering direction for Wedge Wire Wrapped Screen Tube:
