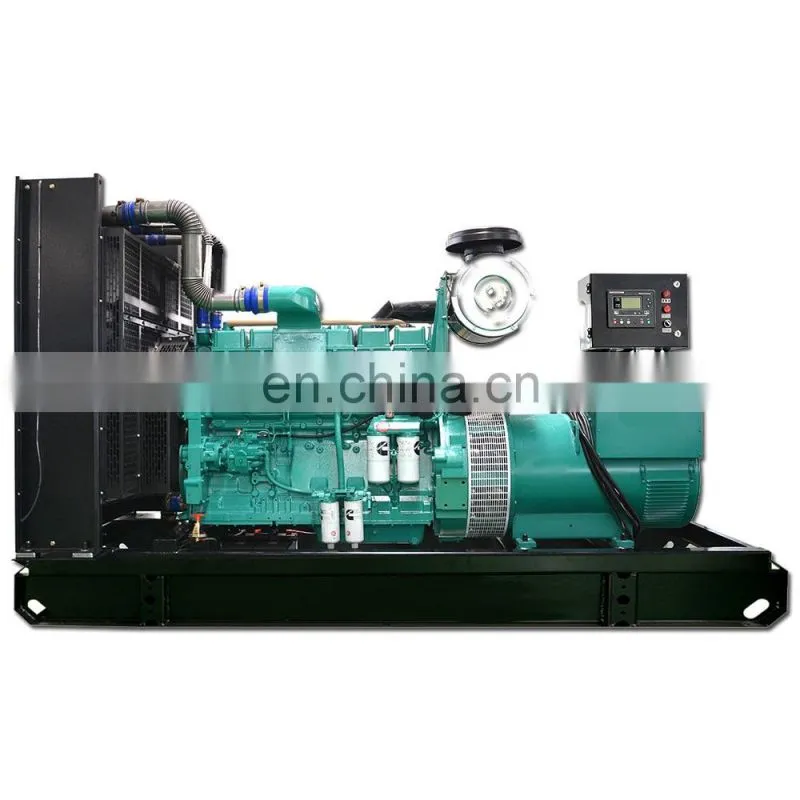

50HZ 3 Phase KTA19-G3 Engine 400kw 500Kva Diesel Generators Price 500Kva Diesel Generators

50HZ 3 Phase KTA19-G3 Engine 400kw 500Kva Diesel Generators Price 500Kva Diesel Generators thumbnail-1
50HZ 3 Phase KTA19-G3 Engine 400kw 500Kva Diesel Generators Price 500Kva Diesel Generators thumbnail-2
50HZ 3 Phase KTA19-G3 Engine 400kw 500Kva Diesel Generators Price 500Kva Diesel Generators thumbnail-3
50HZ 3 Phase KTA19-G3 Engine 400kw 500Kva Diesel Generators Price 500Kva Diesel Generators thumbnail-4
50HZ 3 Phase KTA19-G3 Engine 400kw 500Kva Diesel Generators Price 500Kva Diesel Generators thumbnail-5
50HZ 3 Phase KTA19-G3 Engine 400kw 500Kva Diesel Generators Price 500Kva Diesel Generators thumbnail-6
50HZ 3 Phase KTA19-G3 Engine 400kw 500Kva Diesel Generators Price 500Kva Diesel Generators photo-1
50HZ 3 Phase KTA19-G3 Engine 400kw 500Kva Diesel Generators Price 500Kva Diesel Generators photo-2
50HZ 3 Phase KTA19-G3 Engine 400kw 500Kva Diesel Generators Price 500Kva Diesel Generators photo-3
50HZ 3 Phase KTA19-G3 Engine 400kw 500Kva Diesel Generators Price 500Kva Diesel Generators photo-4
50HZ 3 Phase KTA19-G3 Engine 400kw 500Kva Diesel Generators Price 500Kva Diesel Generators photo-5
50HZ 3 Phase KTA19-G3 Engine 400kw 500Kva Diesel Generators Price 500Kva Diesel Generators photo-6
US$ 16,700 - 19,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
datoo
Place of Origin:
Hebei, China
Model Number:
GF-500C
Contact Supplier Request Quote Chat Now
Shenzhen Eshare Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin /Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name datoo
Place of Origin Hebei, China
Model Number GF-500C
Rated Current Depend
Speed 1500/1800rpm
Frequency 50/60HZ
Rated Voltage 400/230V
Product Description
Technical parameters of diesel generator sets:
Technical data
Genset Model
GF-550C
 Prime Power
400KW/500KVA
Rated Voltage
400/230V
Frequency
50/60Hz
Power Factor
0.8(lagging)
The regulating rate of steady voltage
≤±0.5%
The regulating rate of instantaneous voltage
≤-15%/ +20%
The time of steady voltage
≤1.5sec
The waving rate of voltage
≤1.0%
The regulating rate of steady frequency
≤3%
The regulating rate of instantaneous frequency
≤±10%
The time of steady frequency
3sec
Dimension (L×W×H) (mm)
3250*1360*2020
Genset weight (kg)
4450
Diesel Engine
Brand
With Cummins
Model
KTA19-G4
Number of Cylinders
6
Rotating Speed
1500/1800RPM
Cycle
Four stroke
Type
waste gas turbine boost,direct spurting type
Bore×Stroke(mm)
159*159
Displacement(L)
18.9
Compression Ratio
13.9:1
Speed Governor
Electrical
Cooling System
Water-cooled
Speed Stability (%)
≤5%
Fuel Consumption at 100% Load
107L/H
Starting Method
DC24V Electrical starting
Alternator
Brand
Stamford type
Model
HCI544D
Number of Phase
3
Connecting Type
Three Phase and Four Lines
Number of Bearing
1
Grading Protection
IP22
Altitude
≤1000m
Exciter Type
Brushless (AVR automatic voltage regulating)
Insulation Class
H degree
The components of the genset
(1) Cummins Diesel Engine;        (2)Shanghai Stamford Alternator;     (3) Control Panel
The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection.
Product Sheetdata


More Details Information Please Contact Us

Diesel Engines for Wechai Shangchai (SDEC) Yuchai Deutz Ricardo Lovol Cumminss...and so on

Genset with cummins engine+Stamford Alternator(50Hz,1500Rpm)

Genset

Model
With Cummins engine model
Alternator Model
Gensets Power
Standby Power
Gensets Power
Rated Power
Engine Power
engine
Stamford
Kva
KW
Kva
KW
KW/Kva
GF-22C
4B3.9-G2
PI144D
22
18
20
16
24kw/30kva
GF-28C
4B3.9-G2
PI144E
28
22
25
20
24kw/30kva
GF-30C
4B3.9-G2
PI144F
30
24
27
22
24kw/30kva
GF-33C
4BT3.9-G2
PI144G
33
26
30
24
36kw/40kva
GF-39C
4BT3.9-G2
PI144H
39
31
35
28
36kw/40kva
GF-44C
4BT3.9-G2
PI144J
44
35
40
32
36kw/40kva
GF-47C
4BTA3.9-G2
PI144K
47
37
43
34
50kw/62.5kva
GF-55C
4BTA3.9-G2
UCI224D
55
44
50
40
50kw/62.5kva
GF-62C
4BTA3.9-G2
UCI224E
62
50
56
45
50kw/62.5kva
GF-80C
6BT5.9-G2
UCI224F
80
64
73
58
87kw/109kva
GF-94C
6BT5.9-G2
UCI224G
94
75
85
68
87kw/109kva
GF-103C
6BT5.9-G2
UCI274C
103
83
94
75
87kw/109kva
GF-110C
6BTA5.9-G2
UCI274C
110
88
100
80
110kw/135kva
GF-124C
6BTA5.9-G2
UCI274D
124
99
113
90
110kw/135kva
GF-138C
6BTAA5.9-G2
UCI274E
138
110
125
100
120kw/150kva
GF-154C
6CTA8.3-G2
UCI274E
154
123
140
112
163kw/204kva
GF-176C
6CTA8.3-G2
UCI274F
176
141
160
128
163kw/204kva
GF-200C
6CTA8.3-G2
UCI274G
200
160
182
146
163kw/204kva
GF-220C
6CTAA8.3-G2
UCI274H
220
176
200
160
200kw/250kva
GF-253C
6LTAA8.9-G2
UCDI274J
253
202
230
184
235kw/294kva
GF-275C
6LTAA8.9-G2
UCDI274K
275
220
250
200
220kw/240kva
GF-275C1
NT855-GA
UCDI274K
275
220
250
200
231kw/289kva
GF-313C
NTA855-G1A
HCI444D
313
250
275
220
261kw/326kva
GF-330C
NTA855-G1B
HCI444D
330
264
300
240
284kw/355kva
GF-344C
NTA855-G1B
HCI444ES
344
275
313
250
284kw/355kva
GF-378C
NTA855-G2A
HCI444E
378
303
344
275
313kw/391kva
GF-385C
NTA855-G4
HCI444E
385
308
350
280
317kw/391kva
GF-413C
NTA855-G7
HCI444FS
413
330
375
300
343kw429kva
GF-440C
NTA855-G7A
HCI444F
440
352
400
320
360kw/450kva
GF-440C1
KTA19-G2
HCI444F
440
352
400
320
336kw/420kva
GF-495C
KTA19-G3
HCI 544C
495
396
450
360
403kw/504kva
GF-550C
KTA19-G4
HCI544D
550
440
500
400
448kw/560kva
GF-578C
KTA19-G5
HCI544E
578
462
525
420
470kw/588kva
GF-649C
KTA19-G8
HCI544E
649
519
590
472
510kw/640kva
GF-633C
KTAA19-G6
HCI544E
633
506
575
460
520kw/650kva
GF-660C
KTAA19-G6A
HCI544E
660
528
600
480
540kw/675kva
GF-688C
KTAA19-G6A
HCI544F
688
550
625
500
540kw/675kva
GF-688C1
QSKTAA19-G3
HCI544F
688
550
625
500
574kw/718kva
GF-688C2
KT38-G
HCI544F
688
550
625
500
679kw/849kva
GF-798C
KT38-GA
LVI634B
798
638
725
580
640kw/800kva
GF-825C
KTA38-G2
LVI634B
825
660
750
600
664kw/830kva
GF-891C
KTA38-G2A
HCI634G
891
713
810
648
813kw/1016kva
GF-1001C
KTA38-G2A
LVI634D
1001
801
910
728
813kw/1016kva
GF-1100C
KTA38-G5
HCI634J
1100
880
1000
800
880kw/1100kva
GF-1348C
KTA50-G3
PI734A
1348
1078
1225
980
1097kw/1371kva
GF-1496C
KTA50-G8
PI734B
1496
1197
1360
1088
1200kw/1500kva
GF-1581C
KTA50-GS8
PI734B
1581
1265
1438
1150
1287kw/1609kva
Genset Features

B and F series product
1. Original European Technology, Independent R and D.
2. Gen-sets Power Matching Coefficient.
3. Matched with Professional High-temperature Radiator.
4. Professional Application and Integration Capabilities.
5. Option Automation, Auto-switch, Auto-parallel Connection and other Functions Freely.
6. Key Components of The Controller, Circuit Breakers, Generators for the Domestic and International Famous
7.Strong power,high reliability

8.Diesel Engines for Wechai Shangchai (SDEC) Yuchai Deutz Cumminss
