Help Center200KN Max Bending Test Force Hydraulic Bend Testing Machine for 6 to 40 mm Diameter Steel Rods
Related Products
-
200KN Universal Material Compression Bending Tensile Testing MachineUS$ 3,000 - 3,000MOQ: 1 Unit -
Manual 2.5 D Video Measuring Machine 92 mm Working Range Multiple Data ProcessingUS$ 7,462.31 - 7,462.31MOQ: 1 Unit
-
Pressing Punching Servo Press Machine Positioning Straightening CalkingUS$ 7,561.23 - 7,561.23MOQ: 1 Unit
-
X-ray Fuorescence SpectrometerUS$ 5,000 - 5,000MOQ: 1 Set
-
Factory Price Melt Blown Fabric Production Equipment and Extruder LineUS$ 120,000 - 130,000MOQ: 1 Set
GB / T232-2010 "Bend Test Method for Metal Materials"
GB 1499.2-2018 "Steel for reinforced concrete Part 2: Hot-rolled ribbed steel" Process performance in 7.5.
1.Adopt vertical structure, convenient test operation. The integrated design of the main engine oil source saves space on the equipment.
2.Use PLC and touch screen mode to realize equipment control and display.
3. The span of the two curved support rollers is adjusted by a screw rod. It only needs to turn the hand wheel during adjustment, and there is no need to tighten it, which is very convenient.
4. The roller stand is equipped with an angle meter, which is convenient to observe the bending angle in real time and read the numbers.
6.It is equipped with a dust-proof device to prevent the oxide scale falling on the steel bar from falling on the screw during the test and affecting the span adjustment.

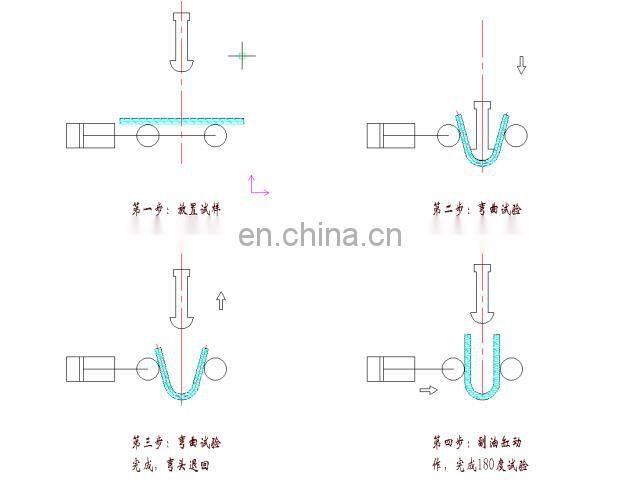

7.During the test, the steel specimen can be bent and formed at one time.
8. It can display the bending speed and bending angle in real time.
9. Convenient operation, quick and easy replacement of bent core, one person can complete all work.
10. The experimental space is completely enclosed, and the operation is safe and reliable.
11. A sample recovery truck is set at the bottom of the device to facilitate sample recovery.
| rods diameters(mm) | Core diameters for ribbed steel |
| 6 | 24 |
| 8 | 32 |
| 10 | 40 |
| 12 | 48 |
| 14 | 56 |
| 16 | 64 |
| 18 | 72 |
| 20 | 80 |
| 22 | 88 |
| 25 | 100 |
| 28 | 140 |
| 32 | 160 |
| 36 | 180 |
| 40 | 200 |
