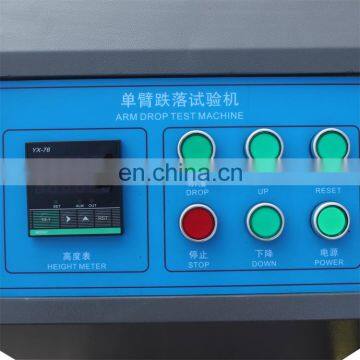

300-1500mm Single-wing Drop Impact Test Equipment for Packaging Carton photo-4
300-1500mm Single-wing Drop Impact Test Equipment for Packaging Carton photo-5
300-1500mm Single-wing Drop Impact Test Equipment for Packaging Carton photo-6
US$ 2,000 - 3,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
AISRY
Place of Origin:
Guangdong, China
Model Number:
ASR-8516
Contact Supplier Request Quote Chat Now
Guangdong Aisry Instrument Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name AISRY
Place of Origin Guangdong, China
Model Number ASR-8516
Power Electronic

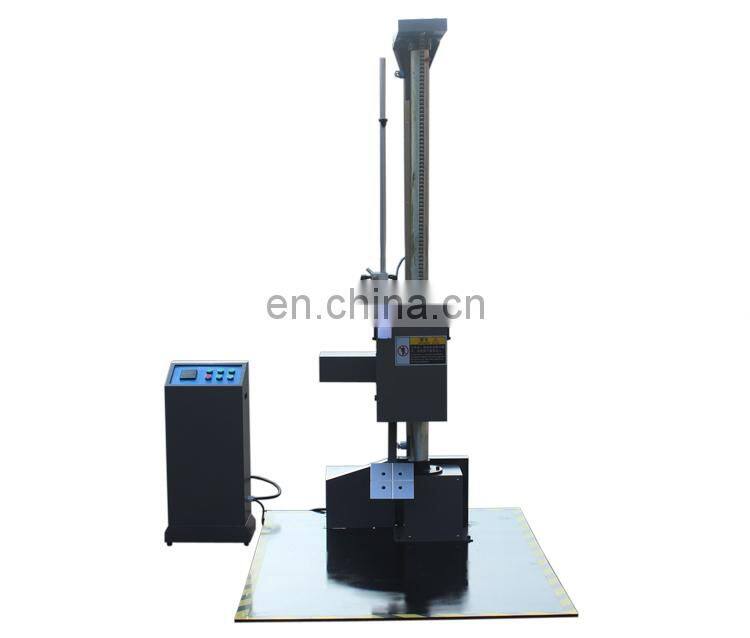

300-1500mm Single-wing Drop Impact Test Equipment for Packaging Carton

300-1500mm Single-wing Drop Impact Test Equipment for Packaging Carton

Product Description

Application :

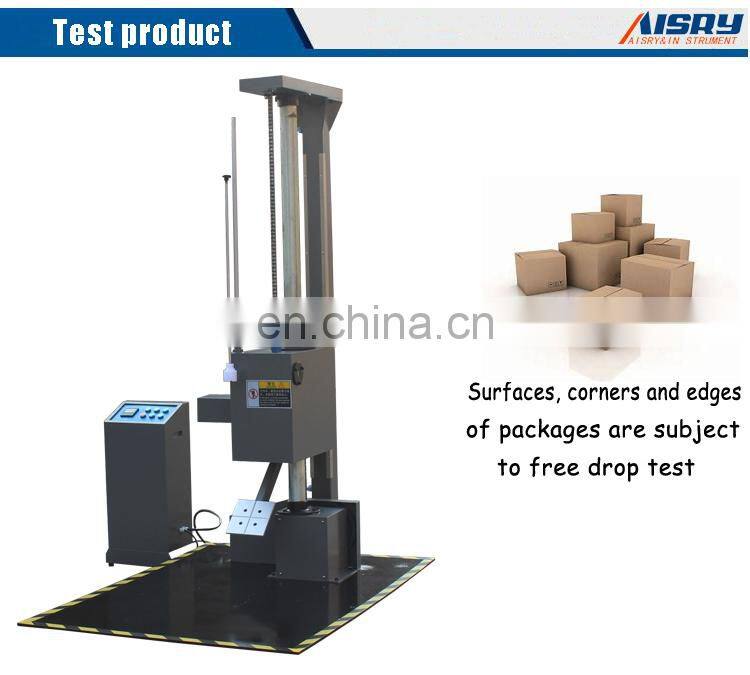

Single wing drop impact tester is used to measure the dropping impact incidence when the package in using, transportation and decorating. Besides precision plane drop testing, it also can undertake edge and angle test to ensure the complete performance evaluation for the package.



 Features :

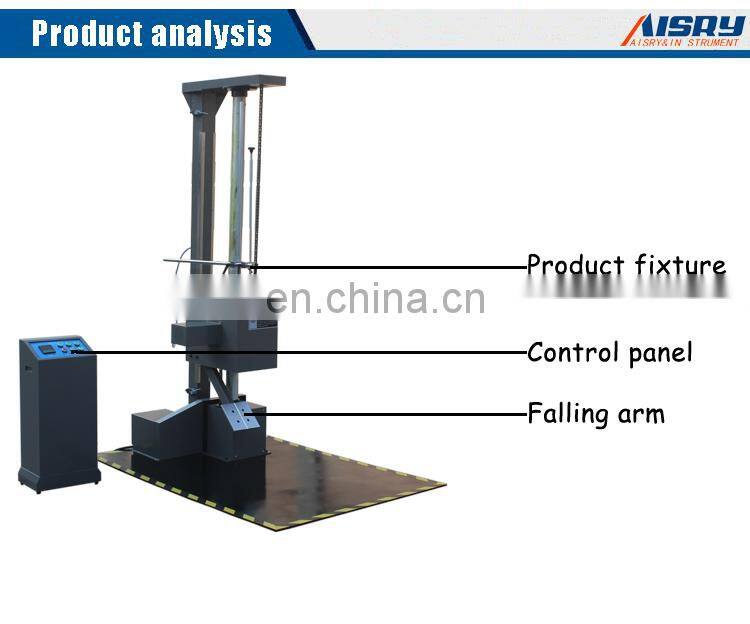

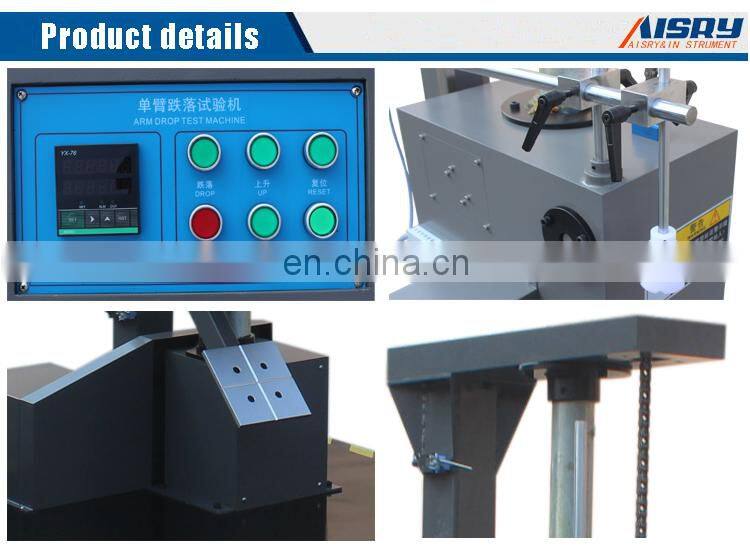

 1,Unique swing arm mechanism design, swing arm break away from acceleration more than 3      G/SEC.

 2,With double column guide and hydraulic buffer absorb residual swing arm force, movements smooth, reliable, low noise.

 3,Damping screw lifting mechanism, preventing drop institution unexpectedly glide.

 4,Pneumatic automatic chain, preventing swing arm unusual break away.

 5,Extensible support bracket and baseboard.



Specification :

Model ASR-8516
Drop height range(mm) 300---1500/300----2000
Specimen max.weight(kg) 85
Specimen max. size(mm) 800*800*800
Drop mode Freedom
Machine Dimension(mm) 1500*1000*2150/1700*1200*2750
Machine weight(kg_ 480/550
Power supply AC220V   50Hz compressed air 0.5~0.7Mpa
Standards ISO2248-72(E)  GB/T4857.5  JISZ0202-87 IEC68-2-27

 300-1500mm Single-wing Drop Impact Test Equipment for Packaging Carton300-1500mm Single-wing Drop Impact Test Equipment for Packaging Carton300-1500mm Single-wing Drop Impact Test Equipment for Packaging Carton300-1500mm Single-wing Drop Impact Test Equipment for Packaging Carton



300-1500mm Single-wing Drop Impact Test Equipment for Packaging Carton

300-1500mm Single-wing Drop Impact Test Equipment for Packaging Carton 300-1500mm Single-wing Drop Impact Test Equipment for Packaging Carton 300-1500mm Single-wing Drop Impact Test Equipment for Packaging Carton 300-1500mm Single-wing Drop Impact Test Equipment for Packaging Carton

300-1500mm Single-wing Drop Impact Test Equipment for Packaging Carton

Send Inquiry to This Supplier

Message
0/5000

Want the best price? Post an RFQ now!

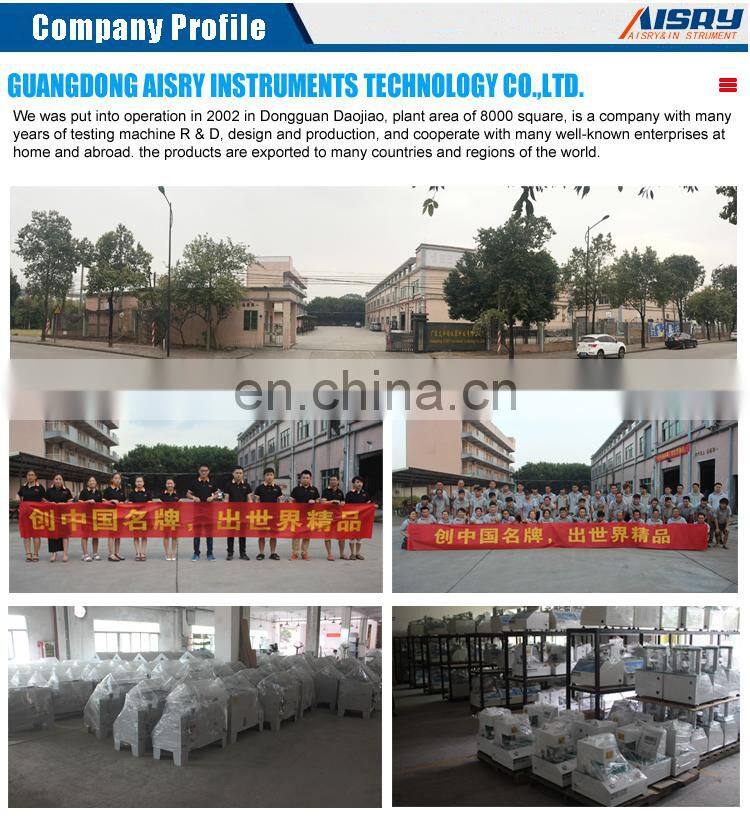

Guangdong Aisry Instrument Technology Co., Ltd.
