Help CenterZONHOW Universal Tensile Strength Elongation Testing Machine
Related Products
-
ZONHOW Cable and Wire Tensile Testing MachineUS$ 4,870 - 5,570MOQ: 3 Sets -
ZONHOW 5kn 5000n 500kg Rubber Tensile Strength Test MachineUS$ 3,270 - 7,770MOQ: 1 Set
-
ZONHOW 2kn Electric Tensile Testing MachineUS$ 1,570 - 1,970MOQ: 1 Set
-
Micro Computer 5kn Rubber Tensile Testing Machine PriceUS$ 3,270 - 8,700MOQ: 1 Set
-
ZONHOW 500 kn 1000KN Hydraulic Universal Tensile Testing MachineUS$ 8,000 - 45,000MOQ: 1 Set
Introduction: Universal Tensile Strength Elongation Testing Machine
Application-Universal tensile strength elongation testing machine
Applications Testing:
- 1. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.

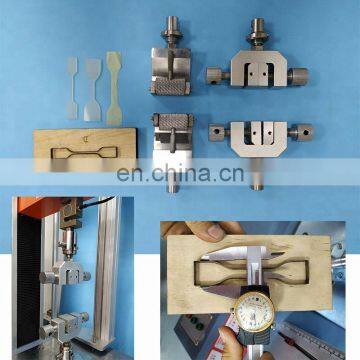

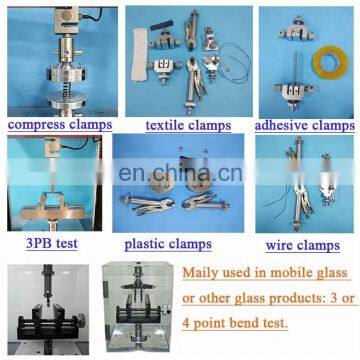

- 2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
- 3. Deformation under defined load: Test deformation under defined load of tested sample
- 4. Load under defined deformation: Test load under defined deformation of tested sample
- 5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
Test Standards-Universal tensile strength elongation testing machine
Metals
- ASTM E8/E8M-13: "Standard Test Methods for Tension Testing of Metallic Materials" (2013)
- ISO 6892-1: "Metallic materials. Tensile testing. Method of test at ambient temperature" (2009)
- ISO 6892-2: "Metallic materials. Tensile testing. Method of test at elevated temperature" (2011)
- JIS Z2241 Method of tensile test for metallic materials
Composites
- ASTM D 3039/D 3039M: "Standard Test Method for Tensile Properties of Polymer Matrix Composite Materials"
Flexible materials
- ASTM D638 Standard Test Method for Tensile Properties of Plastics
- ASTM D828 Standard test method for tensile properties of paper and paperboard using constant-rate-of-elongation apparatus
- ASTM D882 Standard test method for tensile properties of thin plastic sheeting
- ISO 37 rubber, vulcanized or thermoplastic—determination of tensile stress–strain properties
Technical parameters-Universal tensile strength elongation testing machine
| Model | DZ-101 |
| Item | Universal tensile strength elongation testing machine |
| Capacity | 100/200/500/1000/2000Kg/5000Kg |
| Resolution | 1/300000 |
| Range of speed | 0.005~500mm/min |
| Machine Weight | About 300~500Kg |
| Power supply | 220V, 50/60Hz |
| Accuracy | 0.5 class |
| Operate | computer control |
| Accessory | grips |
| Effective test width | Standard:400mm; specials:500mm(can be customized) |
| Motors | Panasonic Servo Motor |
| Distance between the beam and the table | Standard:1100mm;specials:1600mm(can be customized) |
| Test space(includes fixtures) | Standard: 800mm; specials:1300mm |
| Overload protection | Over 10% automatic stop |

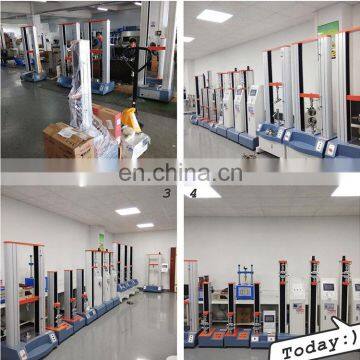

Real imagines-Universal tensile strength elongation testing machine

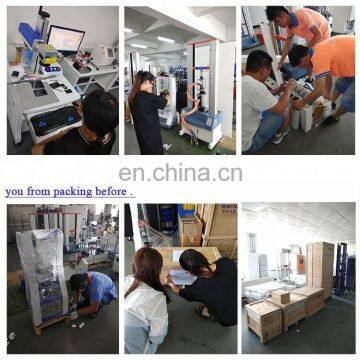

We have professional packing workers to pack your products!
Packing:
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
Shipping:
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.
Universal tensiel tester(5T) Universal tensile tester(200kg) Mobile drop tester(1.5/2m) Wire elongation tester
Humidity climatic chamber Dust test chamber 339 Abarasion tester Moving die Rheometer
Though 11 years of continous development, our company has established the main products line of universal strength testing machines for tension ,compression, flexure, and shear, environment testing chambers and abrasion testing machines. Our equipment is used in over 80 countries wordwide and supported by a network of offices and approved agencies. Our products are used in all industries and educational sectors and we have an enviable reputation for innovation, quality product and excellent customer support.
Our Products
Hi, this is Tracy from ZONHOW, China. We specialized in many different testing machines . Warmly welcome to contact us share your cares. The following is my contact way, i am waiting for your good news.
| QQ number | 2355780557 |
| 13825704520(It's very popular in China , and i do believe you will also like it.) | |
| What'sapp | +86 13825704520 |
| Skype | +86 13825704520 |
1.Are your company a trading one or a factory ?Factory + trade (integration),10 years focusing on test instruments field,3 years exporting experience.
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you
need to do and the required specification.
3.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.
4.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
5.Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to
arrange hotel and pick up you from airport.
6.Do you have customers of our country before?
Now our testing machines have been sold to more than 26 countries, like USA, Canada, Russia,UK,
Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,Iran,
Brazil and so on.
7.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and
part parts change, necessarily, our engineers may go to your place for better service.
8.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many
testing machines abroad by sea or by air without damage.
9.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and
debugging - balance payment - packing - delivery - customer receiving - after service.
10.How to install and use the product
The product is shipped with an operating instructions and video of English version.
