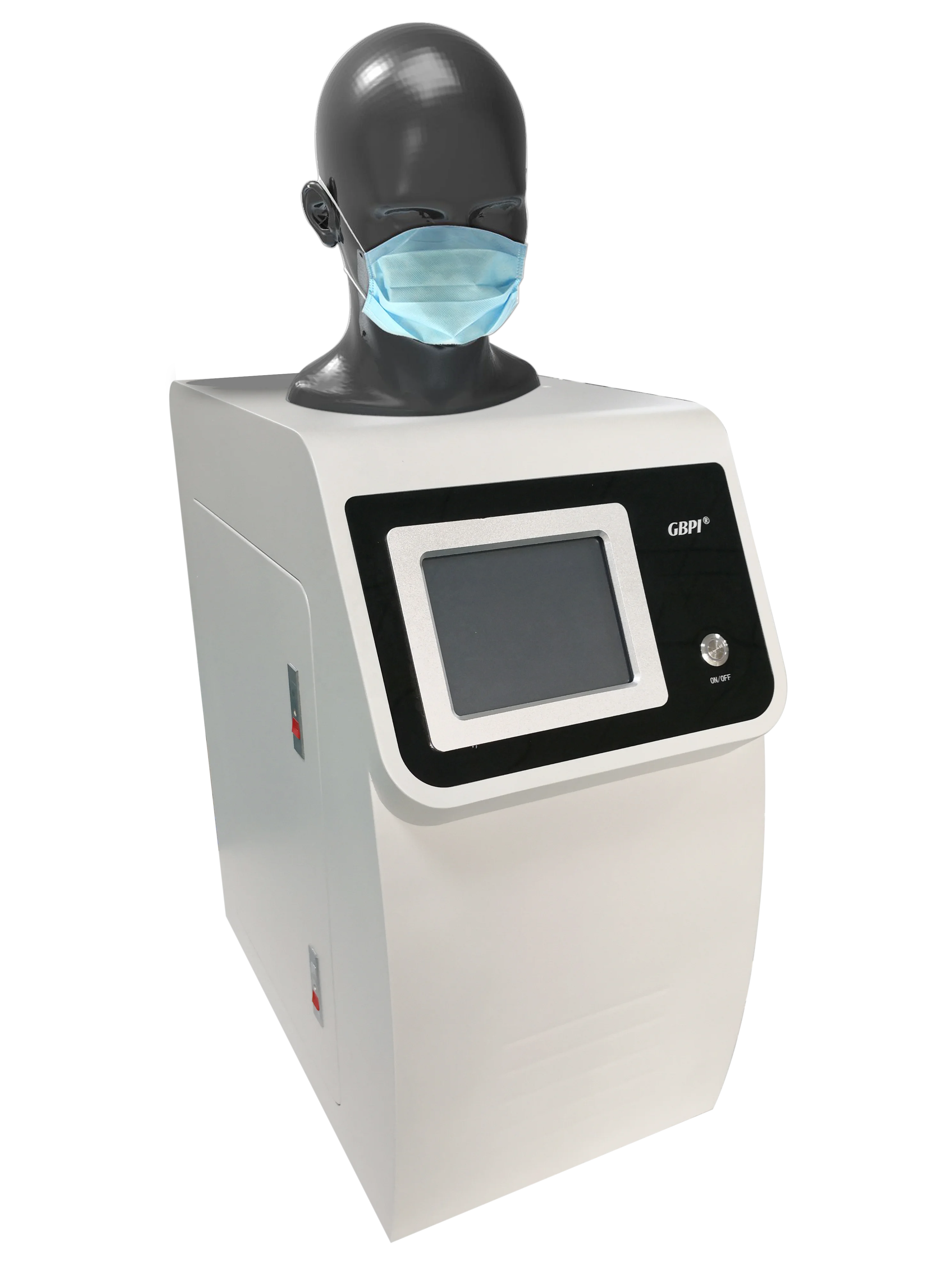

Medical Protective Mask Mask Airflow Resistance Tester
US$ 25,000 - 38,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
GBPI
Place of Origin:
Guangdong, China
Model Number:
GBN702
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GBN701 Air Flow Resistance and Differential Pressure TesterUS$ 15,000 - 19,000MOQ: 1 Set -
Particulate Filtration Efficiency Tester ASTM F2100 PFEUS$ 40,000 - 69,230MOQ: 1 Set
-
Mobile Atomizing Humidification And Disinfection EquipmentUS$ 56,000 - 59,000MOQ: 1 Set
-
Resistance Blood Splashes MachineUS$ 10,000 - 15,000MOQ: 1 Set
-
Gas Chromatography Organic Solvent Testing MachineUS$ 10,000 - 15,000MOQ: 1 Set
Brand Name
GBPI
Place of Origin
Guangdong, China
Model Number
GBN702
Power
Electronic
Product Description
Item | Technical Parameters |
Flowmeter range | 0 L/min～100L/min |
Flowmeter range accuracy | ±2% |
Micro-pressure measuring range | -1000Pa～1000Pa |
Micromanometer accuracy | 1Pa |
Pumping capacity of suction pump | Not less than 100L / min |
Ventilation | Constant (85 ± 1) L / min |
Power Supply | AC220V，50Hz |
Application
The respiratory resistance tester is suitable for determining the inhalation resistance and exhalation resistance of respirators and mask protective products under specified conditions, and for the related testing and inspection of common mask products by manufacturers of national labor protection article inspection agencies.

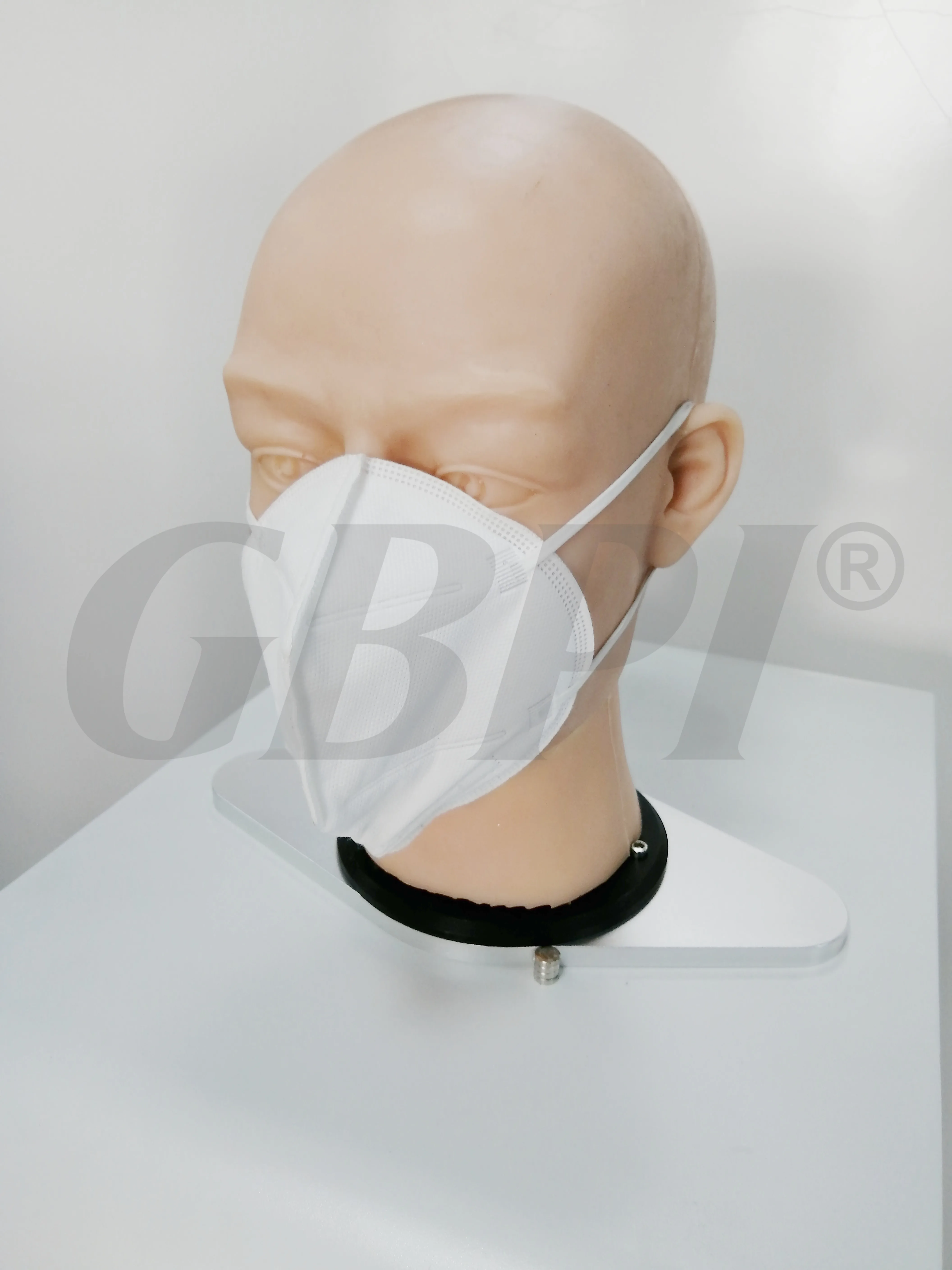

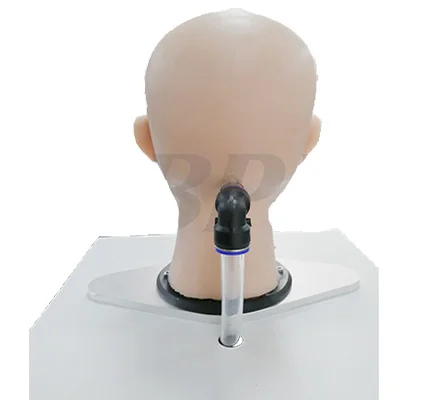

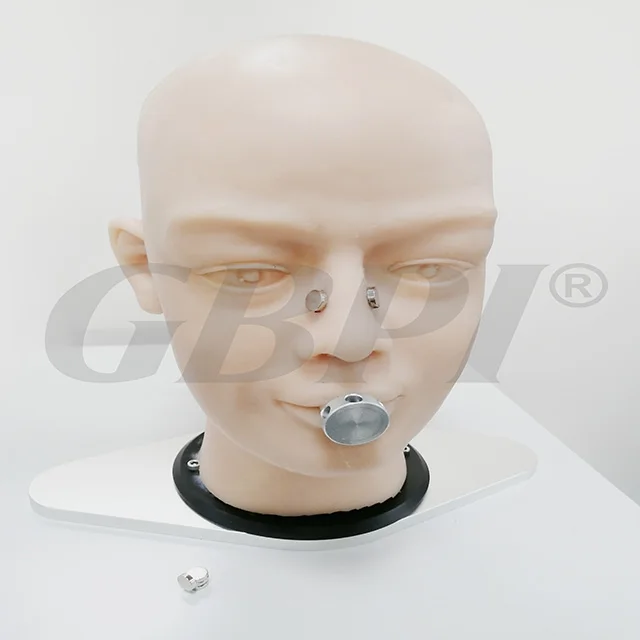

Detailed Images
Features
1. The instrument consists of an air source that can adjust the flow rate, a human head mold specified in the standard, two intubation systems for inhalation and exhalation, and a respiratory resistance measurement system.
2. The flow sensor has high sensitivity and has a very small starting flow.
3. The flow sensor chip uses a thermal mass flow meter, which does not require temperature and pressure compensation, ensuring high-precision measurement of the sensor.
4. Multiple sensors are integrated on a single flow sensor chip, which greatly improves the range ratio of the sensor.
5. The zero point stability of the flow sensor is high, with full range and high stability, high accuracy over the full range, excellent repeatability, low power consumption, low pressure loss and fast response speed.
6. The data logger uses a graphic dot matrix LCD with a resolution of 128 × 64 and a full Chinese interface, which is easy to operate.
7.the data logger has 4M memory for measurement value recording.
8. The micromanometer sensor uses a two-wire system, with high accuracy and good stability; it is safe and reliable to use an explosion-proof design.
9. The range and zero point of the micromanometer sensor are continuously adjustable, the damping is adjustable, there is no mechanical moving part, and the maintenance workload is small.
10. The whole instrument adopts special gas path conversion elements, which ensures the convenient and fast conversion of the two-pipe system of exhalation and inhalation.
11. Applicable to the latest national standard requirements, compatible with labor protection protective masks and daily protective mask standards
Related Products
Company Introduction
GBPI is a professional manufacturer focused on developing and producing packaging material test instruments.Founded in 2002, the company received IOS9001 certification and recognized as high-tech enterprise and software enterprise by the national authority. We hold numerous technology patents and software certificates from the national authority, and gained awards for tchnological progress.
