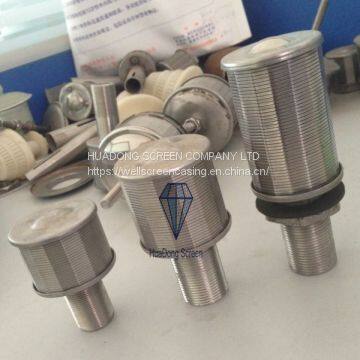

Help CenterStainless Steel Wedge Wire Screen Nozzle/resin Screen Nozzle for Water Treatment
Related Products
-
API 5CT Slotted Casing Pipe/stainless Steel or Galvanized Steel Laser Cutter Slot Casing PipeUS$ 45 - 100MOQ: 1 Meter -
4'' 6'' 8'' 10'' Stainless Steel Johnson Type Continuous Slot Wedge Wire Wind Screen/water Well Screen for Water WellUS$ 15 - 50MOQ: 1 Meter
-
Stainless Steel 316L Drilling Pipe Screen for Oil Well ToolsUS$ 80 - 120MOQ: 1 Piece
-
Galvanized Steel/stainless Steel Bridge Slot Screen for 300-1200m Depth WellUS$ 10 - 100MOQ: 1 Meter
-
Filter Tube Wedge Wire Screen NozzleUS$ 5.69 - 7.51MOQ: 100 Sets

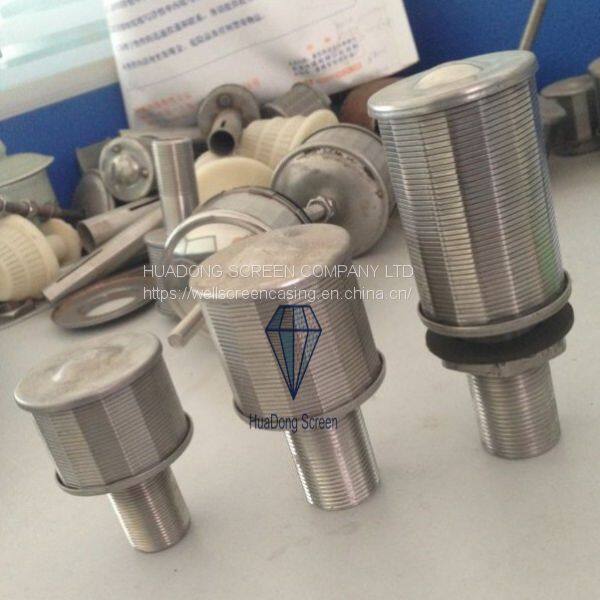

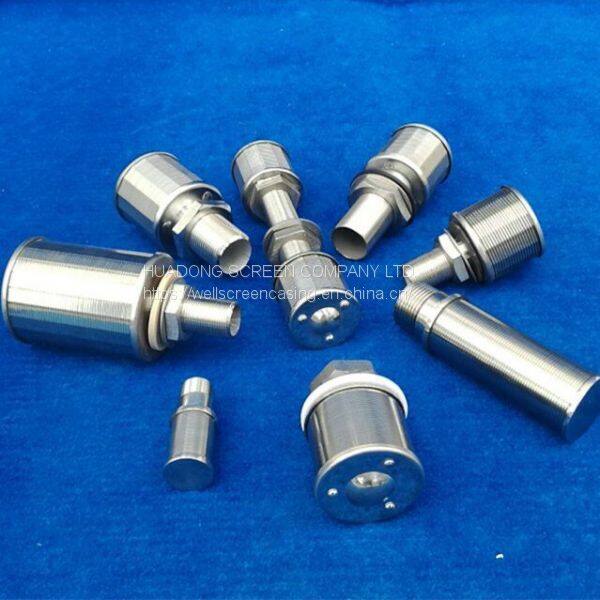

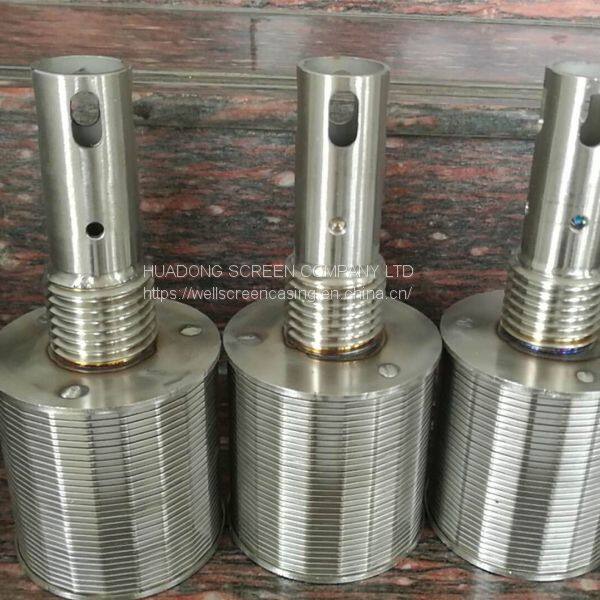

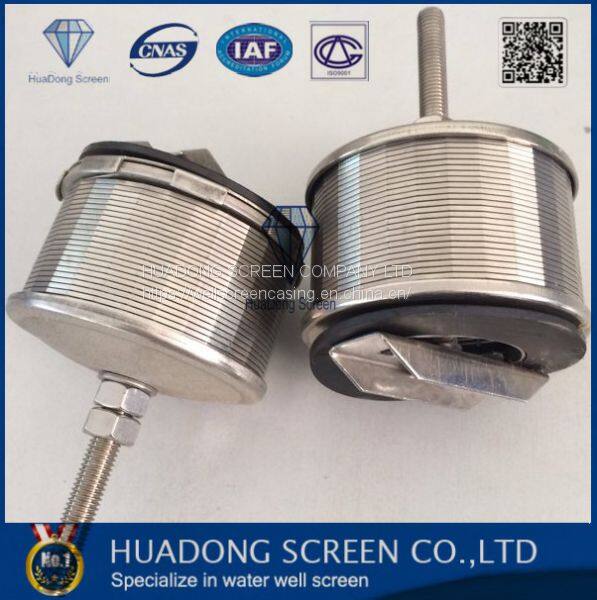

Wedge wire screen nozzle intruction
Wedge wire screen nozzle is a filter element,the festures of wegde wire screen make it an attractive solution for separating solids from liquids, retaining media (such as resin,sand, catalyst), filtering,sizing,dewatering,collecting, and distributing,and water treatment or media retention and always made from stainless steel or customized material, which is mounted on the support plate.The dimensions and the distribution of the nozzles on the support plate can be altered to obtain an optimized flow distribution.
Usage
Above mentioned designs are used widely in down-flow reactors for liquid/solid or gas/solid separation mixed beds, ion exchangers and regenerators of condensate polishing system.The liquid or gas can flow through the nozzles while the solids are retained in the vessel by the nozzles.
advantage
High open area of the wedge wire screen provides excellent capacity.
Wedge wire screen offers continuousl slot openings that widen inwardly so that particles tend to pass through the screen, plug-resistant slot design.
High strength compare with the plastic nozzle.
flexibility in design
Specification of Stainless Steel Wedge Wire Strainer Nozzles Johnson Screen Water Nozzle
|
Type |
Ton |
Slot Opening |
Size |
0.2-0.25mm slot opening Area of through-flow mm2(reference) |
|||
D |
L1 |
L |
M |
|||||
1 |
SH45-1-C |
0.5 |
0.2-0.5 |
45 |
45 |
95 |
24 |
500 |
2 |
SH53-2-B |
1 |
0.2-0.5 |
53 |
45 |
100 |
24 |
570 |
3 |
SH53-2-C |
1.5 |
0.2-0.5 |
53 |
50 |
110 |
32 |
700 |
4 |
SH57-3-B |
2 |
0.2-0.5 |
57 |
45 |
110 |
32 |
600 |
5 |
SH70-4-B |
3 |
0.2-0.5 |
70 |
55 |
120 |
32 |
1000 |
