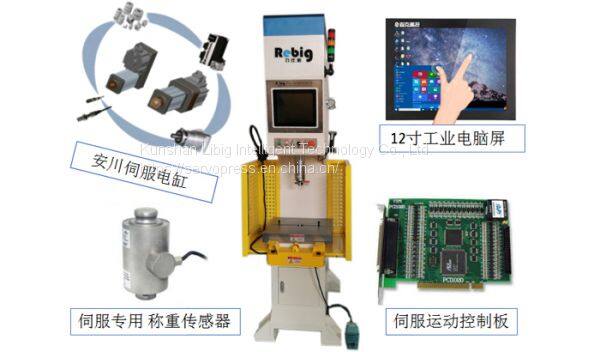

The electronic press is driven by a servo motor to carry out precision ball screwing to perform precision pressing operations:
Pressing mode:
1) Constant press speed, set precise position to stop;
2) Constant press speed, set precise pressure to stop;
3) Constant press speed, set precise displacement stop;
Environmental protection, energy saving and safety:
The electronic pressure driven by the AC servo motor can provide a clean working environment. Compared with pneumatic and hydraulic equipment, electronic presses save 80% energy. To ensure safety, electronic presses are equipped with safety protection circuits.
Quality judgment function:
Online quality inspection function to ensure product quality; sampling point can be set freely (5 points)
Parameter report storage function:
Through the USB interface connection, the results of the press-fitting operation data can be stored in the U disk in an orderly manner. To ensure the traceability of product data and effectively control the production quality.
Touch control screen:
The man-machine interface is a clear large-screen LCD touch screen, providing a friendly man-machine dialogue function.
Self-diagnosis can:
If the equipment fails, the electronic press can display error information and prompt solutions, which is convenient for finding and solving problems quickly.
Multi-function 1/0 communication interface:
Through this interface, it can communicate with external equipment to facilitate the integration of full automation;
Equipment functions and features:
1. According to customer requirements, different press modes can be set (more on this later) to meet the diverse needs of customers.
2. Multi-level braking speed separation, safe and efficient.
3. Use high-precision sensors, read data in real time, output curves, efficient and fast, intuitive image. Error range (+/-0.001mm, +/-1kg)
4. Automatically record data, which can achieve fixed-point tracking of each product to facilitate statistical data.
5. Automatically analyze the product stress curve to judge the quality of the product.
6. Multi-level emergency stop early warning mechanism, safe and reliable.
7. According to production requirements, configure different types of press parameters.
8. The press program has a password protection mode to prevent unauthorized persons from modifying parameters without authorization.
9. Real-time signal output, to achieve humanized service, convenient for personnel to operate.
Advantage:
1. Precise control of displacement and pressure
Realize precise displacement and pressure control without hard limit and precision tooling. Using industrial tablet computer control program, realizing hyperbolic real-time display and storage of retrieved data
Equipped with automatic compensation function to realize the press assembly control that the hydraulic press cannot
Second, the quality is optimized and pressed to remove bad
Online assembly quality management technology, real-time removal of defective products
According to the specific product requirements, specify the most optimal pressing process
3. Application data analysis, one machine for multiple purposes
Specific complete and accurate operation process recording and analysis functions
Can realize multi-purpose, flexible group line and remote equipment management
Equipment specifications and technical parameters:
Equipment name BG09SF-5000-250 precision servo press

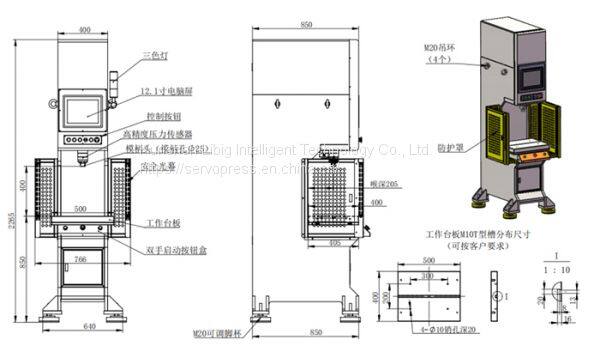

Appearance size See drawing
Equipment weight 1300Kg
Equipment power 7.5KW
Working voltage Three-phase 380V, 50HZ
Environmental temperature 0-40OC
Relative humidity 20-80%
Protection grade IP46
Display 2 inch color industrial computer screen
I/O interface USB2.0
I/O switching power supply Provide built-in DC24V power supply (2.5A)
Program can store 100 sets of applications
Maximum pressure 5000Kgf
Allowable pressure range 500—5000Kgf
Pressure setting unit 0.1Kgf
Maximum travel 300mm
Displacement repeat accuracy ±0.01mm
Pressing speed 0.1-35mm/s
Fast forward speed 0-90mm/s
Holding time 0-99S
Pressure repeatability ±1%F.S
