product description:
Servo hydraulic MIM automatic shaping machine adopts imported servo valve combined with precision control, high sensitivity and fast response; high repeat positioning accuracy, repeating up to three ten thousandths. Compared with traditional models, the production cycle can be shortened to 70%; the use of servo hydraulic control system saves more than 60% of electricity year-on-year, which can meet the requirements of different processes for speed and pressure changes, and the movement is more stable.

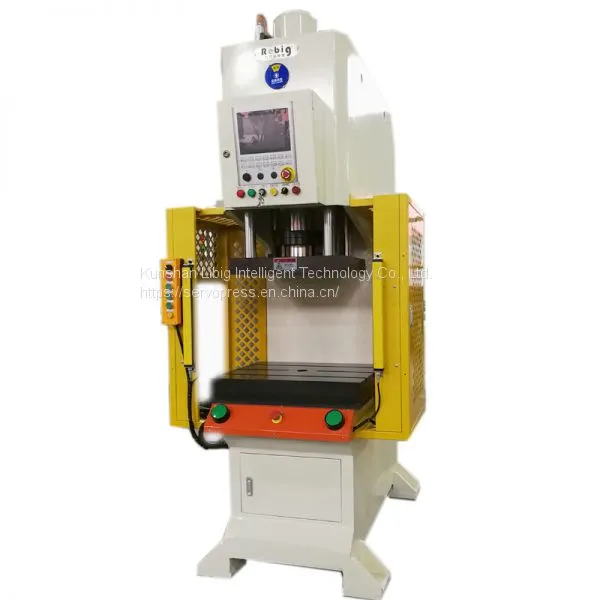

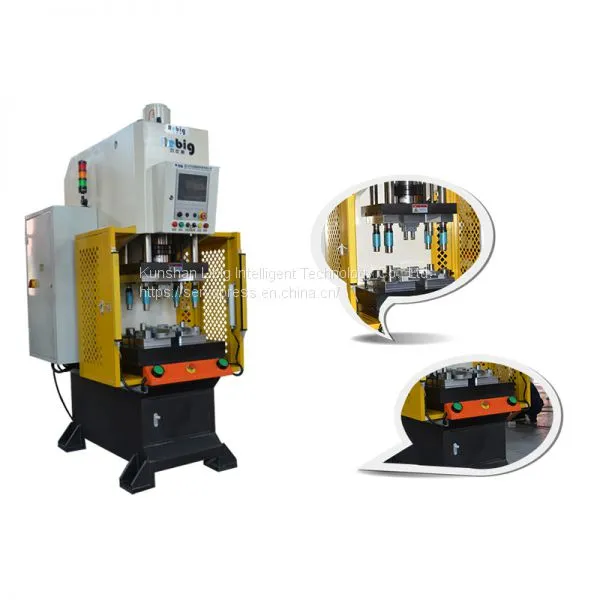

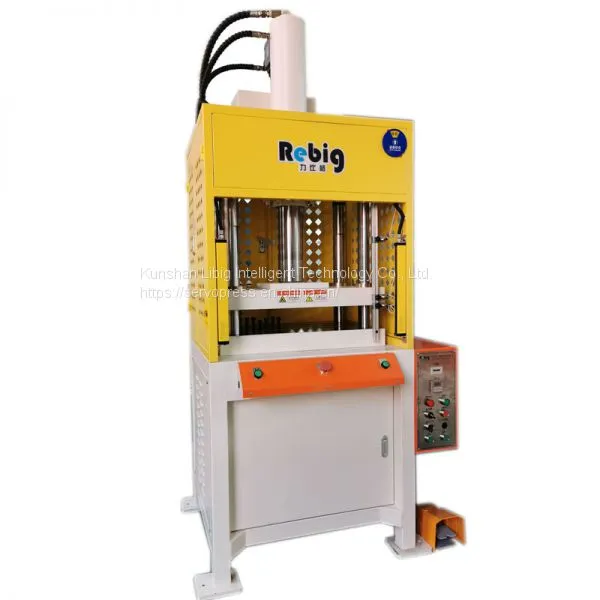

MIM servo shaping machine mobile phone parts automatic hydraulic pressing machine Detailed introduction

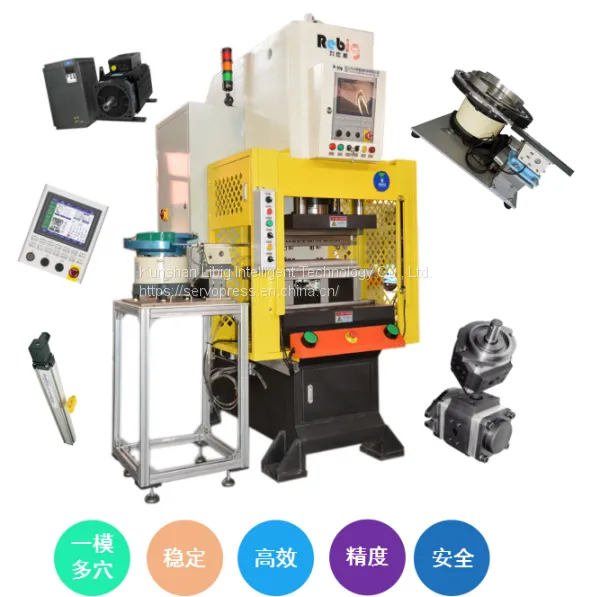

The servo motor is combined with imported oil pump and imported servo valve for precise control, with high sensitivity and quick response. A
Using high-precision displacement sensor detection (displacement sensor is imported non-contact magnetic suspension structure), high repeat positioning accuracy, repeatability can reach three ten thousandths. A
The machine operation is more user-friendly, the man-machine interface is simple and easy to operate, and the pressure, position and speed can be set and adjusted on the computer screen.
Equipment information can communicate with the computer and PC, remote monitoring, data storage cloud, can achieve lean management.
In the fully automatic production mode, the production cycle can be shortened by about 60% compared with traditional models. A
Adopt servo hydraulic system control, which can meet the requirements of speed and pressure changes of different processes, and the movement is more stable.
1. Power saving performance:
The servo hydraulic press uses a synchronous servo motor to drive the hydraulic pump. When the hydraulic press is not turned on, the motor is stationary, consumes no power, and does not waste energy. The use of servo hydraulic presses saves 50%-70% of electrical energy compared to Pu Neng hydraulic presses. A
2. Low noise:
The servo motor has lower operating noise than ordinary motors. Adjustable speed, quieter at low speed. A
3. Quick response:
The servo motor has high sensitivity and fast response, and the startup time is only 0.05 seconds. A
4. Low temperature performance:
The servo hydraulic press does not overflow, so it generates very little heat. No cooling system is required. A
5. High-precision positioning function:
The servo hydraulic press can be directly positioned, and the pressure position can be set arbitrarily. Especially suitable for pressing and other pressing processes
Innovative features of hybrid drive system:
●Pump control technology replaces conventional valve control technology, eliminates throttling loss, no overflow loss, significant energy saving
●The servo motor can be significantly overloaded in a short time, the actual installed power is only 50% of the theoretical installed power
● The volume of the oil tank is reduced by 75%, reducing the amount of hydraulic oil used
●Low thermal equilibrium temperature, no need for cooling device, life extension of hydraulic components
●Noise, fast down, holding pressure, return state, noise is significantly reduced, improve working environment
●Servo motors brake faster than ordinary motors, and cut off pressure and flow quickly in an emergency
●Reduced sensitivity of oil particles from NS7 to NS9
●Temperature sensitivity drops, the working temperature is from -10C~60°C, widen to -10C~80°C
●Speed matching is very high.
●Under certain conditions, the maximum speed of fast down and return can reach 320mm/s (1-320mm/s can be set).
●Working speed can reach 100mm/s (0.1-100mm/s can be set).
●200mm travel fastest 1.7S one cycle action
●Repetition positioning accuracy can reach +0.005mm, high precision
●High synchronization accuracy, synchronization accuracy within t 0.020mm during operation
●The maximum torque control of the system for different specifications of machine tools to prevent man-made
Factors causing machine tool overload
