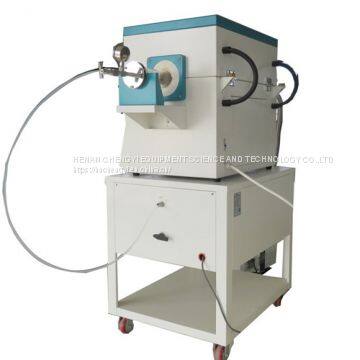

CHY-T12100A-3Z4C 1200 degree CVD system for Garaphene Film Preparation CHENGYI CVD System CVD machine price
1.O.D100*1000mm high purity quartz tube
2.High quality ceramic fiber chamber
3.PID Programmable controller
4.Three gas way mass flow controller with precision gas flow controller
5.Two stage Vacuum Pump
5.Made by Henan Chengyi
CHENGYI Laboratory CVD Tube Furnace APPLICATION
1.Laboratory heat thermal processing
2.High Vacuum Sintering Heating Annealing Brazing
3.Laboratory Thin Film Preparation,Nano tube growthing
4.Laboratory CVD system,graphene growthing,preparation.
1200 degree CVD system PARAMETERS
Product Name |
1200 degree CVD Furnace |
Modle No. |
CHY-T12100A-3Z4C |
Heating zones |
Single heating zone |
Heating zone length |
400mm |
Constant temperature zone length |
200mm |
Tube Material |
high purity quartz tube |
Tube diameter |
O.D100*I.D94*1000mm Quartz Tube |
Tube Length |
1000mm,750mm,1000mm,1200mm as enquiry |
Thermcouple |
K type |
Maximum heating temper |
1150 dgree |
Heating rate |
20c/min,adjustable suggestion 10 degree/min |
Heating element |
Fe-Co-Al by Mo alloy |
Sealing Method |
stainless steel vacuum flange |
Vacuum Air-tightness |
9.8×10-4Pa |
Temperature Accuracy |
±1℃ |
Control Mode |
Intelligent PID programmable Control,30 steps sintering curve restore |
Mass Flow Controller |
3 gas way mass flow controller |
Flowmeter Core |
304 stainless steel |
Measure Accuracy |
+/- 1.0% F.S |
Pressure Range |
-0.1~0.15MPa |
A way gas range |
0~100SCCM |
B way gas range |
0~200SCCM |
C way gas range |
0~500SCCM,or as customized |
Vacuum Pump |
4C |
Power Supply |
AC220V 50Hz |
Our CVD machine has three gas way mass flow controller with precision gas flow controller. Our products are very popular, please contact us as soon as possible!
Founded in 2013, CHENGYI is a manufacturer of lab equipment. We not only can supply standard lab equipment, but also we do customized as request. We sincerely welcome worldwide friend come to visit us!
For more laboratory equipment, please click here to visit our website..If you have any question on CVD machine. We will give the professional answers to your short questions.
