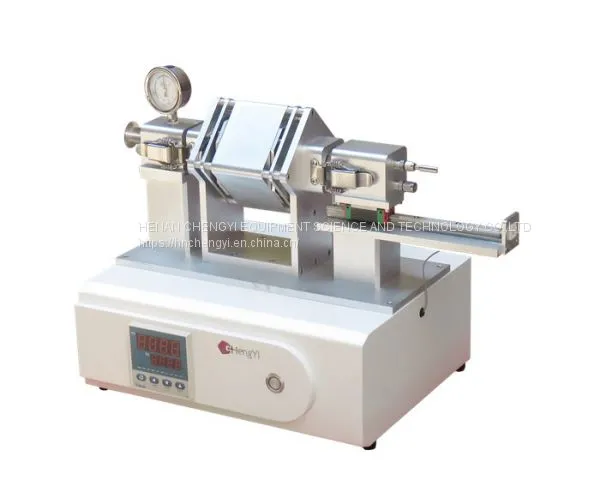

Mini RTP 1200 degree Tube Furnace with Halogen Tube Tube Furnace with Quartz Tube RTP Tube Furnace for Lab
CHENGYI Tube Furnace with Quartz Tube APPLICATION
1.Fast Annealing,Post-ion implantation annealing
2.RTO,RTN
3.Silicidation
4.Diffusion
5.Electrode alloying
6.Crystallization and densification
RTP Tube Furnace PARAMETERS
Product Name |
Mini RTP Tube Furnace |
Model |
Mini-RTP |
Furnace Type |
Fast Heating/Cooling Sintering |
Display Model |
LED Digital Light |
Maximum Temperature |
1100℃ |
Working Temperature |
≤1000℃ |
Heating rate |
≤20℃/Second |
Heating zones |
Single heating zone |
Quartz Tube Diameter |
O.D50*600mm |
Inner Diameter |
I.D 42*600mm |
Heating Zone Length |
100mm |
Max Sample |
35*25mm |
Control mode |
Intelligent PID auto control |
Temperature Accuracy |
±1℃ |
Temperature curve |
30 segments programmable |
Over heat alarm |
Have |
Overcurrent protection |
Have |
Thermocouple Failure Protection |
Have |
Temperature Sensor |
K-type thermocouple |
Heating Element |
3pieces Infrared tube |
Quartz Tube Material |
High Purity Quartz |
After-sales service |
12 month warranty, durable maintaince and repair support |
Power Supply |
220V 50HZ |
Rated power |
1.5kw |
Overall dimensions |
610×400×410 (mm ) |
Packing |
3-ply wooden case |
Accessories |
Protective Glove,Crucible Tong,Crucible,Quartz Tube,Vacuum Flange,User Manual. |
As a professional tube furnace exporter, we can supply high quality laboratory tube furnace with cheap price. For more industry information, view online today.
