Help CenterSteam Pipe Sputtering Aluminum Target Plate
Related Products
-
450*50*8 Titanium Sputtering Target Target Melamine PlatesNegotiableMOQ: 1 Piece -
1020*50*6 Target White Plates 6061/5052 Aluminum Target PlateNegotiableMOQ: 1 Piece
-
Hearth And Hand Dinnerware Titanium Sputtering Target 1020*50*6NegotiableMOQ: 1 Piece
-
320*30*5 Target Christmas Plates Target Plate Pipeline Purging DeviceNegotiableMOQ: 1 Piece
-
3003 Material Mirror Target Plate Hearth And Hand DinnerwareNegotiableMOQ: 1 Piece

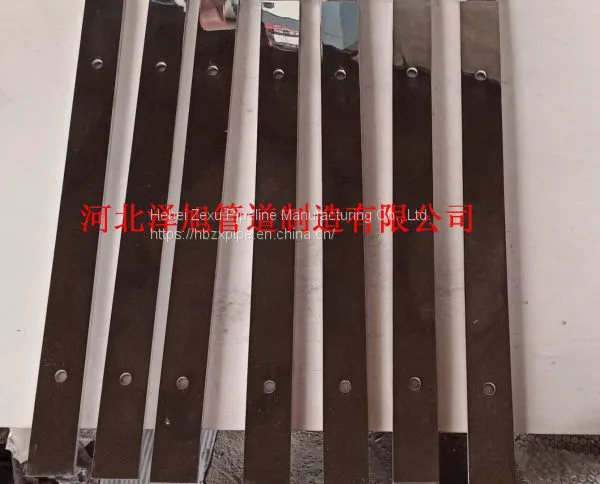

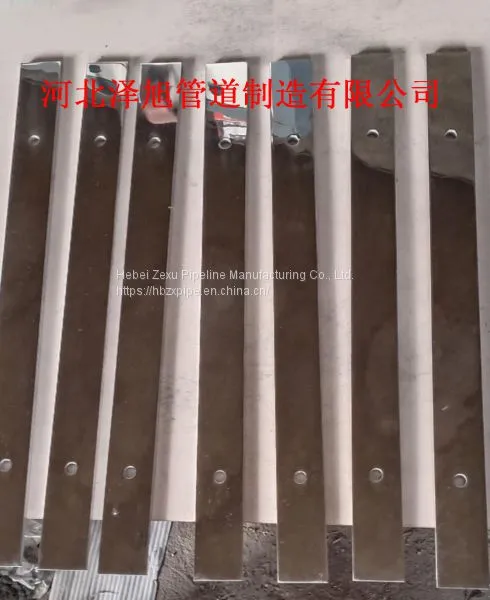

Target plate axis: 8cm in diameter round steel length is longer than the pipe diameter 5cm, the side milling is inserted into the groove of the target plate, there are two blind tapping holes inside the milling groove for fixing the target plate, and there are two corresponding through holes on the target plate , Diameter 8mm. 8cm round steel is welded with a flange cover at one end, but not at the other end. Welding handle on flange cover.
Target plate seat: two through holes are opened in the radial direction of the temporary pipe, and a DN100 length 5cm pipe is welded on it, and a flange is welded for connecting the target plate shaft. Weld the DN100 5cm length pipe at the lower end, and seal the end to seal the target shaft.
The entire target shaft is installed in the target seat.
