Plastic Adjustable Clamp Water Spray Nozzle for Washing

Shanghai Xinhou Industrial Co., Limited
Plastic Adjustable Clamp Water Spray Nozzle for Washing thumbnail-1
Plastic Adjustable Clamp Water Spray Nozzle for Washing thumbnail-2
Plastic Adjustable Clamp Water Spray Nozzle for Washing thumbnail-3
Plastic Adjustable Clamp Water Spray Nozzle for Washing thumbnail-4
Plastic Adjustable Clamp Water Spray Nozzle for Washing thumbnail-5
Plastic Adjustable Clamp Water Spray Nozzle for Washing photo-1
Plastic Adjustable Clamp Water Spray Nozzle for Washing photo-2
Plastic Adjustable Clamp Water Spray Nozzle for Washing photo-3
Plastic Adjustable Clamp Water Spray Nozzle for Washing photo-4
Plastic Adjustable Clamp Water Spray Nozzle for Washing photo-5
US$ 0.85 - 5 MOQ: 30 Pieces
Key Specifications
Get Latest Price
Brand Name:
XINHOU
Place of Origin:
China
Model Number:
26988
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
2 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name XINHOU
Place of Origin China
Model Number 26988
Condition New
Product Description

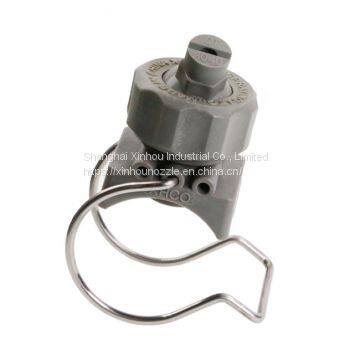

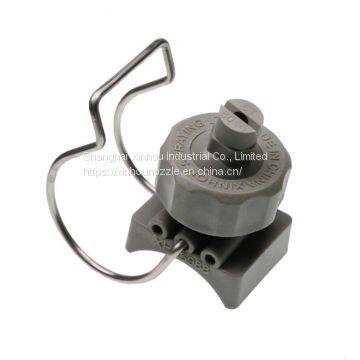

Name
Plastic Adjustable Clamp Spray Nozzle
Original
Shanghai, China (Mainland)
Material
Plastic, polypropylene, plastic body used together with a threaded ball and SS spray tip
Color
Gray, yellow, red, green, blue
Size
3/4", 1", 1-1/4", 1-1/2", 2"
Features
Quick release, corrosion resistance, clogging resistance, impervious to most chemicals
Delivery time
About 3-5 days after payment confirmation
Delivery method
1.By air express: DHL, FEDEX, UPS, TNT, EMS;
2.By sea;
Payment
 Western union, Paypal, T/T, Visa, Our bank account,
Application
Coating, lubricating, chemical application;
Cooling, humidifying, moistening;
Cleaning, washdown, rinsing;
Metal finishing and parts washing

Customized service
Custom nozzle designs are available upon request
Detailed Information

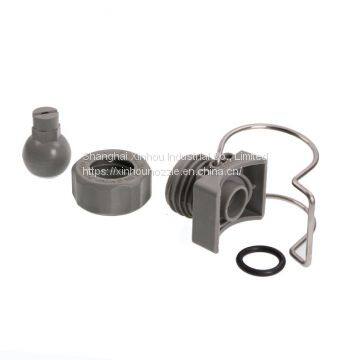

There are two kinds of assemblies in your selection: single clamp and double clamp. The reference data is as follows:

(1)When work pressure is less than 4 bar or pipe diameter of nozzle is smaller than 1.5inch, the single clamp is better.;
(2)When work pressure is more than 4 bar or pipe diameter of nozzle is gigger than 1.5inch, the double clamp is better.;
Tips are available in full cone, hollow cone and flat fan configuration as follow data sheet shows:

Similiar Products:

Our Company
Shanghai Xinhou Industrial Co..Limited

•  One of the top professional spray nozzle manufacturers in China .

• Established in 2002 with experienced technology and sales team

• Located at Xujing Industry Zoon , close to Shanghai Hongqiao Air Port and National Exhibition Centre.

• XINHOU nozzles are class ified according to different natures  :

    a)  Material :  stainess steel |  Brass | Plastic

    b)  Structure :  Spiral nozzle | Fine atomising nozzle | Adjustable  Ball Nozzle | Air Blowing Nozzle |

        Quick Release Nozzle | Mixing Eductor Nozzle | One-Piece Nozzle

    c)   Shape:  Fan Nozzle | Full Core Nozzle | Hollow Core Nozzle | Liquid Column Nozzle

    d)  Purpose: Cleaning Nozzle | Humidification Nozzle | Dedusting Nozzle | Spray Drying Nozzle | Spray Coating Nozzle

         | Strong Cold Air Shower Nozzle | Strong Hot Air Shower Nozzle

*   XINHOU Nozzles have done good job of drying and coating in auto pretreatment process. We cooperate with some world famous companies for some big auto projects like Audi, Bens, BMW etc.

*  XINHOU Nozzles are also used in the many other industries such as Coating | Electronics | Motor | Food | Steel | Vehicle| Chemical Industry | Paper Making | Environmental Protection


XINHOU  Workshop

                     Testing in Work Shop

Our Exhibitions

    XINHOU at Exhibition

    China International Auto Products Expo




Product Tags: nozzle , spray nozzle , clamp nozzle , washing nozzle , water spray nozzle , plastic spray nozzle , clip eyelet nozzle , low pressure nozzle , clamp spray nozzle
