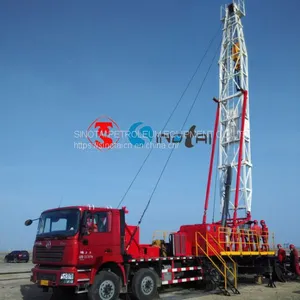

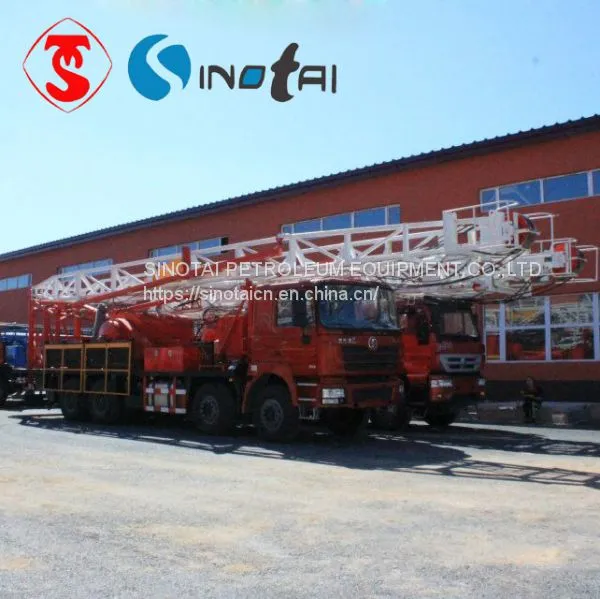

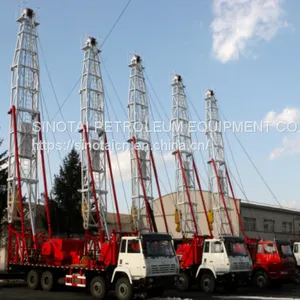

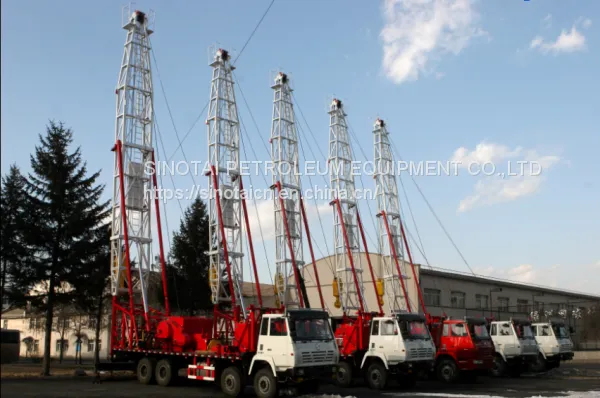

40Ton Pulling Unit Without Guyline

Name: 40Ton Pulling Unit Without Guyline
Brand: TS-SINOTAI
SKU: 162887261
Availability: InStock

40Ton Pulling Unit Without Guyline thumbnail-1

40Ton Pulling Unit Without Guyline thumbnail-2

40Ton Pulling Unit Without Guyline thumbnail-3

40Ton Pulling Unit Without Guyline photo-1

40Ton Pulling Unit Without Guyline photo-2

40Ton Pulling Unit Without Guyline photo-3

US$ 100000 - 200000 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

TS-SINOTAI

Place of Origin:

China

Certification:

API

Contact Supplier Request Quote Chat Now

Sinotai Petroleum Equipment Co.,ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

2 days

Product Details
Company Profile
Contact Us

Brand Name TS-SINOTAI

Place of Origin China

Certification API

After-sales Service Provided Engineers available to service machinery overseas

Warranty 12 Months

Weight 29460kg

Dimension(L*W*H) 15100*2500*4000mm

Condition New

Voltage 24V/220V/380V

Power(W) 206kW

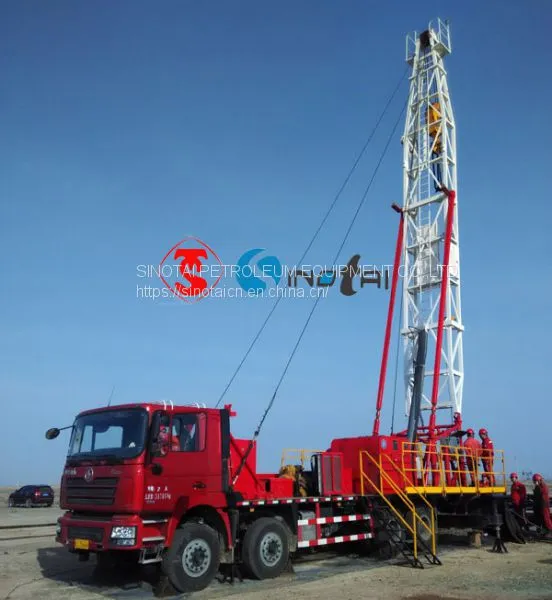

XJ250 Pulling Unit without Guyline

No-guyline workover is an innovative revolution for traditional workover hoist, it is no longer subject to the geographical location and surface conditions of oil field, eliminating the installation and pulling out of the fixed anchor before and after the operation, greatly reducing the installation and operation area, reducing the operating time and complexity of operations, improving the working efficiency, so it suitable for all kinds of harsh and complex ground conditions and climate environment, especially for urban areas, desert or other small or complex areas where guy lines are not convenient.

The profile of mast is a trapezoidal structure, which increases the strength and stiffness of mast

The mast body and back bracket are connected by automatic pull rod to facilitate operation

The rear of chassis adopts a large span hydraulic telescopic jack, which increases the distance between the fulcrum and improves the stability of vehicle.

Technical parameters		Unit	XJ250(40T)
Nominal service depth	73mm(2-7/8'')EUE Tubing	m	3200
Nominal workover depth	73mm (2-7/8'' )DP	m	2000
Max. Hook Load		kN	675
Rated Hook Load		kN	400
Drawworks HP rating		kW	206
Mast Height		m	18(single section)
Qty. of effective rope			6
Wirelines diameter		mm	22
Lifting speed of hook		m/s	1—1.5
Moving dimension (length x width x height)		m	15.10×2.50×4.00
Weight		kg	29460
Chassis			Steyr
