CSG-45/CSF-45 Crossed Cylindrical Roller Bearings for Industrial Robots Harmonic Drive Dimension 32x147x27mm

CSG-45/CSF-45 Crossed Cylindrical Roller Bearings for Industrial Robots Harmonic Drive Dimension 32x147x27mm thumbnail-1

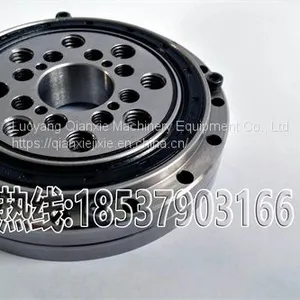

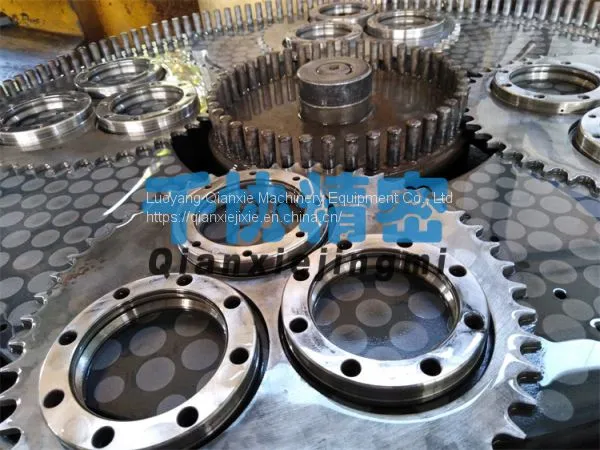

CSG-45/CSF-45 Crossed Cylindrical Roller Bearings for Industrial Robots Harmonic Drive Dimension 32x147x27mm photo-1
US$ 100 - 1000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
ZLYQX
Place of Origin:
China
Model Number:
CSG-45/CSF-45
Contact Supplier Request Quote Chat Now
Luoyang Qianxie Machinery Equipment Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ZLYQX
Place of Origin China
Model Number CSG-45/CSF-45
Precision Rating P5 / P4 / P2
Outside Diameter 147,
Bore Size 32,
Model: CSG-45/CSF-45 Material: GCr15
Structure: Crossed Cylindrical Roller Bearings Dimension: 32x147x27mm
Application: Robots Harmonic Drive Use Name: Crossed Cylindrical Roller Bearing

Products structure

Harmonic drive bearing is cross roller structure.According to its application area there are two types one is our ring split and inner ring integraty another one is outer ring and inner ring all integraty.Rolling body are cylindrical rollers which arranged orthogonality,this structure can make one bearing can bear the load from every direction e.g. radial,axial and tilting torque etc. Bearing with high rigidity,rotation accurancy and load carrying capacity. This series bearing has compact appearance,with mounting hole,customer can mount directly,suitable for every kinds of harmonic drives.

Harmonic drive bearing series

CSF(CSG) Series(Outer ring split,inner ring integraty)

Outer ring split,inner ring integraty structure ,there is no need of flange and bearing seat.suitable for every kind of CSF(CSG) series harmonic drives.

CSF/CSG series model(Dimension dxDXH)mm

CSF-14/CSG-14 dimension-9x55x16.5mm

CSF-17/CSG-17 dimension-10x62x16.5mm

CSF-20/CSG-20 dimension-14x70x16.5mm

CSF-25/CSG-25 dimension-20x85x18.5mm

CSF-32/CSG-32 dimension-26x112x22.5mm

CSF-40/CSG-40 dimension-24x126x24mm

CSF-50/CSG-50 dimension-32x157x31mm

CSF-65/CSG-65 dimension-44x210x39mm

Model Dimension(mm) Basic Load rating(KN) Weight
d D T D1 D2 D21 D3 n 1-d 1 n 2-d 2 n 21-d2 1 n 3-d 3 d 31 t 31 rsmin Cr Cor Kg
CSF14 9 55 16.5 49 23 14.5 15.5 8-Ф3.5 6-M4 6-M3 2-Ф3 ---- ---- 0.3x45° 4.6 5.1 0.25
CSF17 10 62 16.5 56 27 17.5 17.5 10-Ф3.5 6-M5 6-M4 2-Ф3 ---- ---- 0.3x45° 5.2 6.4 0.27
CSF20 14 70 16.5 64 32 24 19 12-Ф3.5 8-M6 8-M5 4-Ф3 4-Ф2.8 7 0.3x45° 6.1 8.4 0.36
CSF25 20 85 18.5 79 42 30 26 16-Ф3.5 8-M8 8-M6 4-Ф3 4-Ф2.8 7 0.5x45° 11.2 16 0.65
CSF32 26 112 22.5 104 55 40 34 16-Ф4.5 8-M10 8-M8 4-Ф5 4-Ф4.7 10 0.5x45° 18.5 28.3 1.1
CSF40 24 126 24 117 68 50 42 20-Ф5 8-M10 8-M8 4-Ф5 ---- ---- 0.5x45° 18.9 30.7 1.6
CSF50 32 157 31 147 84 60 50 16-Ф5.5 8-M14 8-M14 4-Ф5 ---- ---- 0.5x45° 42.8 67.7 3.6
CSF65 44 210 39 198 110 80 64 20-Ф6.5 8-M16 8-M16 4-Ф6 ---- ---- 0.5x45° 67.7 114.9 7.8
SHF14 38 70 15.1 64 64 ----- 44 8-Ф3.5 2-M3 ----- 12-M3 ---- 5 0.5x45° 5.4 7.1 0.28
SHF17 47 80 17 74 74 ----- 54 12-Ф3.5 4-M3 ----- 20-M3 ---- 5 0.5x45° 10.4 14.2 0.39
SHF20 54 90 18.5 84 84 ----- 62 12-Ф3.5 4-M3 ----- (16+4)-M3 ---- 6 0.5x45° 16.1 22.4 0.5
SHF25 68 110 20.7 102 102 ----- 77 12-Ф4.5 4-M3 ----- (16-M4)+(4-M3) ---- 6/8 0.5x45° 17.8 27.4 0.81
SHF32 88 142 24.4 132 132 ----- 100 12-Ф5.5 4-M4 ----- (16-M5)+(4-M4) ---- 8 0.5x45° 25.6 42 1.7
SHF40 108 170 30 158 158 ----- 122 12-Ф6.6 6-M4 ----- (16-M6)+(4-M5) ---- 8/10 0.5x45° 42.1 68.4 2.79
SHF50 135 214 36 200 200 ----- 154 12-Ф9 6-M5 ----- (16-M8)+(8-M5) ---- 10/12 0.5x45° 69.8 121.6 5.19


Product Tags: CSG-45/CSF-45 , Crossed Roller Bearings , Crossed Cylindrical Roller Bearings
