SHF-25/SHG-25 Harmonic Reducer Use Crossed Roller Bearings Price

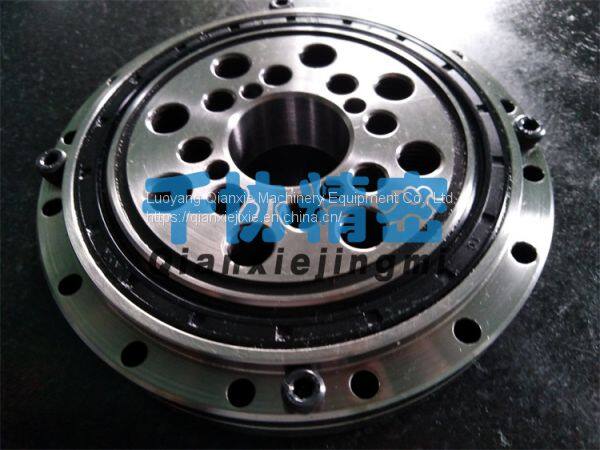

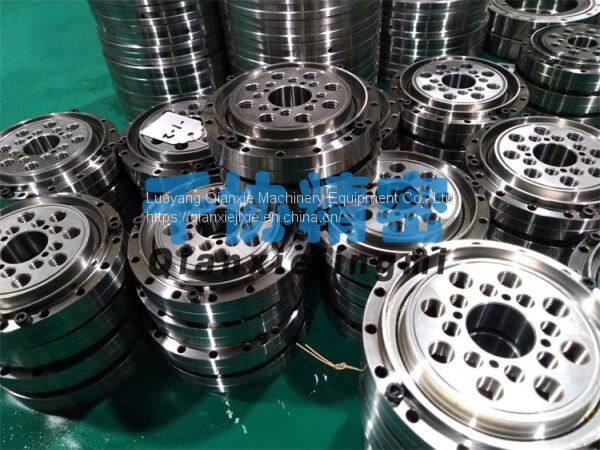

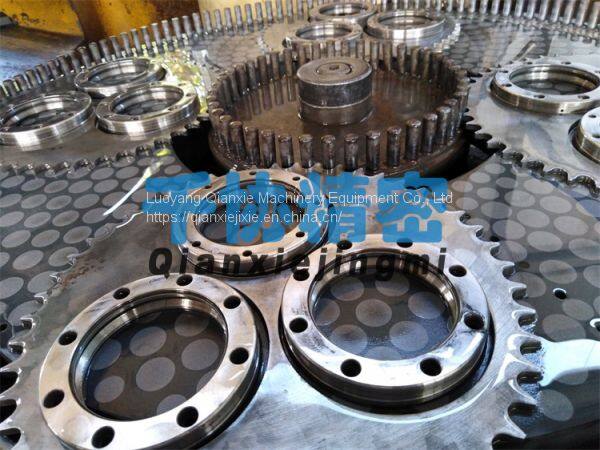

Harmonic drive bearing is cross roller structure.According to its application area there are two types one is our ring split and inner ring integraty another one is outer ring and inner ring all integraty.Rolling body are cylindrical rollers which arranged orthogonality,this structure can make one bearing can bear the load from every direction e.g. radial,axial and tilting torque etc. Bearing with high rigidity,rotation accurancy and load carrying capacity. This series bearing has compact appearance,with mounting hole,customer can mount directly,suitable for every kinds of harmonic drives.

Harmonic drive bearing series

SHF(SHG) series(Outer ring integraty,inner ring integraty)

Outer ring and inner ring are all integraty structure,mounting will have no affect on performance ,it can abtain stable running accurancy and torque.suitable for every kinds of SHF(SHG) series harmonic drives.

SHF/SHG series models (Dimension- dx D x H mm):

SHF-14/SHG-14 Dimension-38x70x15.1mm

SHF-17/SHG-17 Dimension 47x80x17mm

SHF-20/SHG-20 Dimension-54x90x18.5mm

SHF-25/SHG-25 Dimension-68x110x20.7mm

SHF-32/SHG-32 Dimension-88x142x24.4mm

SHF-40/SHG-40 Dimension-108x170x30mm

SHF-50/SHG-50 Dimension-135x214x36mm

Model	Inner ring mounting hole			Basic load rating		Weight
	Center diameter dm	Mounting hole size（On the front the seal）	Mounting hole size（On the front the seal）	Cr	Cor	KG
				KN	KN
SHG(SHF)-14	44	12-M3(Thread depth6）		6.1	14	0.11
SHG(SHF)-17	54	20-M3(Thread depth6）		9.4	16.1	0.36
SHG(SHF)-20	62	16-M3(Thread depth6）	4-M3(Thread depth6）	20.2	31.1	0.44
SHG(SHF)-25	77	16-M4(Thread depth8）	4-M3(Thread depth6）	28.5	45.2	0.7
SHG(SHF)-32	100	16-M5(Thread depth8）	4-M4(Thread depth8）	47.3	77.3	1.57
SHG(SHF)-40	122	16-M6(Thread depth10）	4-M5(Thread depth10）	35.5	71.2	2.4
SHG(SHF)-50	154	16-M8(Thread depth112）	8-M5(Thread depth10）	80.4	151.9	4.5
