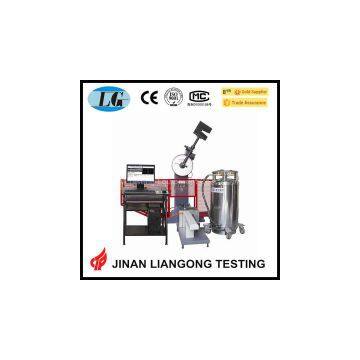

Pendulum Izod Impact Testing Machine/impact Test Equipment

Pendulum Izod Impact Testing Machine/impact Test Equipment thumbnail-1
Pendulum Izod Impact Testing Machine/impact Test Equipment thumbnail-2
Pendulum Izod Impact Testing Machine/impact Test Equipment thumbnail-3
Pendulum Izod Impact Testing Machine/impact Test Equipment photo-1
Pendulum Izod Impact Testing Machine/impact Test Equipment photo-2
Pendulum Izod Impact Testing Machine/impact Test Equipment photo-3
US$ 2000 - 2000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2008
Factory Size:
3,000-5,000 square meters
Contact Supplier Request Quote Chat Now
ASTM Testing Equipment Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us

pendulum izod impact testing machine/impact test equipment


Main Technical Parameters:


1. Impact energy: 500J, 250J, 300J, 150J
2. Pendulum force value (the impact of constants):

 0-500J     267.9492N.m
 0-250J     133.9746N.m
3. Angel of the Pendulum rises in advance: 150 °
4. Distance from the center of hammer to impact point (specimen center): 800mm
5. Impact speed: 5.4m / s
6. Span of sample branch seat: 40mm
7. Radius of arc circle of sample branch seat: R(1-1.5)mm
8. Arc circle radius of impact knife: R(2-2.5)mm
9. Specimen specifications: (10 × 10 × 55)mm
10. Net Weight of the machine: 500kg
11. Size of outline of the machine: (2500 × 600 × 1400)mm
12. Power Supply: Three-phase four-wire 50Hz, 380V, 250W (main motor)
13. Working conditions:
   1. Room temperature range of  20°C±5°C
   2. Relative humidity of less than 85%;
   3. Around no corrosive medium, no vibration, no strong electromagnetic interference environment;
  4. Installed in the thickness of more than 200mm of concrete foundations or fixed at the basis of more than 1400Kg;
   5. Machine seat is installed to the level of 0.2/1000 degrees.

pendulum semiautomatic izod impact testing machine/impact test equipment
