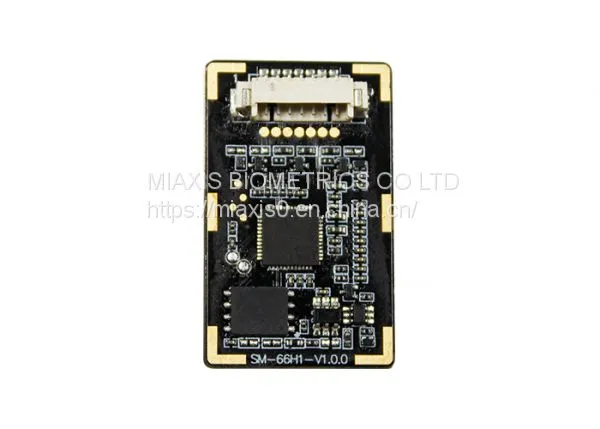

Integrated Capacitive Fingerprint Module SM-66H1 Biometric Hardwares
Biometric OEM Module
OVERVIEW:
Miaxis SM-66H1 is an Inexpensive,compact,power efficient integrated fingerprint module with adopted capacitive sensor and Miaxis's high speed fingerprint authentication algorithm. It has all essential components to support fingerprint identification purpose,ideal for Lock and Safe industry.
Integrated Fingerprint Module FEATURES:
●508 dpi capacitive sensor
●Compact design (board size as small as sensor size) for volume-limited applications
●Extra low power-consumption
●Sleep mode current less than 5uA
●Touch wake-up function
Capacitive Fingerprint Module SPECIFICATION:
Specification |
SM-66H1 |
CPU |
200MHz, Cortex-M4F |
Flash memory |
512KB (Expandable up to 16MB) |
Product size(L x W x H) |
33.1 x 20.3 x 6.2mm |
Sensor type |
Capacitive |
Active platen area |
9.6 x 9.6mm |
Image Size |
192 x 192 pixel |
Image resolution |
508dpi |
Grey scale |
8 bit (256 levels) |
Power-on time |
≤0.2s |
Enrollment time |
≤200ms |
1:1 Verification time |
≤200ms |
1:N Matching time |
≤1s,N=160 |
FAR |
≤0.001% |
FRR |
≤1.5% |
Template size |
4096 bytes default |
Fingerprint capacity |
100 templates(Expandable) |
Live finger detection |
Yes |
ESD immunity |
±8kV contact discharge |
Supply voltage |
DC 3.3±0.3V |
Supply current |
≤60mA |
Supply current Sleep mode |
≤5uA |
Communication interface |
UART(default) or USB |
Operating Temperature |
-20°C to +60°C |
Storage Temperature |
-40°C to +85°C |
Operating humidity |
20%RH～90%RH |
Note: the 1:1 verification time* is calculated based the time of input template matched to the stored template.
The company is Chinese's industry-leading developer and manufacturer of biometric system and fingerprint recognition algorithm. Based on over 18 years of industry experience and we are the key vendor of fingerprint scanner for Chinese resident ID card program approved by the ministry of Public Security.
