Miaxis SM-62UT Capacitive Fingerprint Module Fingerprint Authentication Modules
Biometric OEM Module
OVERVIEW:

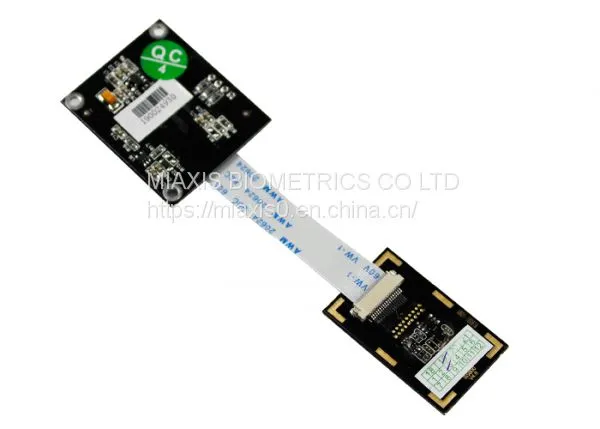

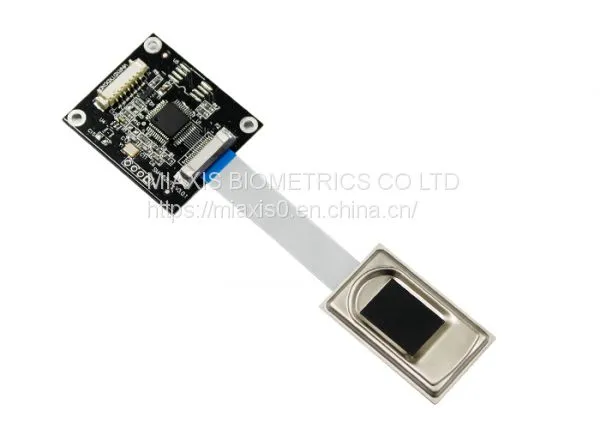

Miaxis SM-62UT is a standalone Capacitive Fingerprint Module, consisting of semi-conductor fingerprint sensor, low power consumption & high-performance ARM core processor and FLASH etc chips.
The module supports on-board fingerprint image processing, template extraction, fingerprint matching (including 1: 1 and 1: N), template storage and other functions.
FEATURES:
• 508 dpi resolution
• 1:500 identification time<1sec
• Live finger detection
• Power control function for for embedded applications to turn-on/off module
• Touch wake-up function
custom Biometric scanner SPECIFICATION:
Specification | SM-62UT |
CPU | 108MHz, Cortex-M4 |
Flash memory | 512KB |
Board Size(L x W x H) | 35.0× 30.0× 7.5mm |
Sensor Size(L x W x H) | 33.4 x 20.4 x 3.6mm |
Sensor type | Capacitive |
Active platen area | 9.6 x 12.8mm |
Image Size | 192*256 pixel |
Image resolution | 508dpi |
Grey scale | 8 bit (256 levels) |
Power-on time | ≤200ms |
Enrollment time | ≤200ms |
1:1 Verification time* | ≤200ms |
1:N Matching time | <1s,N=500 |
FAR | ≤0. 001 % |
FRR | ≤1.5 % |
Template size | 810 bytes default |
Fingerprint capacity | 500 templates |
Live finger detection | Yes |
ESD immunity | ±8kV contact discharge |
Supply voltage | DC 4.3V-7.0V |
Supply current | ≤100mA |
Supply current Sleep mode | ≤10uA |
Communication interface | UART |
Operating Temperature | -20°C to +60°C |
Storage Temperature | -30°C to +75°C |
Operating humidity | 20%RH～90%RH |
Note: the 1:1 verification time* is calculated based the time of input template matched to the stored template.
The company is Chinese's industry-leading developer and manufacturer of biometric system and fingerprint recognition algorithm. Based on over 18 years of industry experience and we are the key vendor of fingerprint scanner for Chinese resident ID card program approved by the ministry of Public Security.
If you are interested in our products, please click here!
