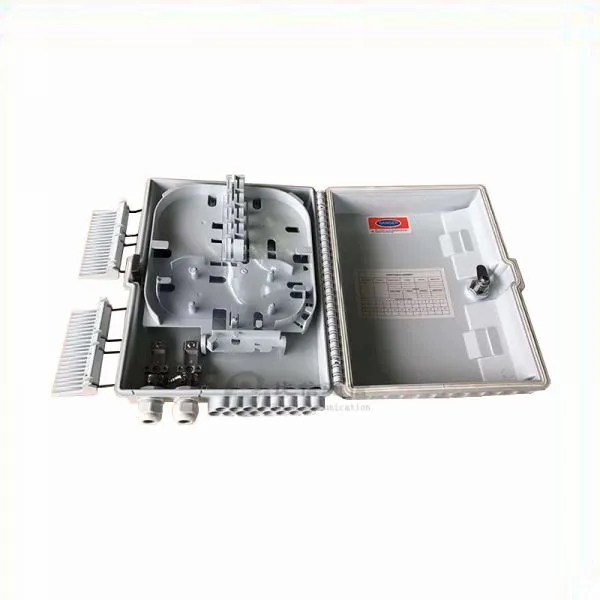

24 core optical fiber junction box 24 core optical fiber junction box
boxImage and text analysis of fiber distribution box configuration:
1、 The client wiring equipment in FTTH Optical Network of concept optical fiber distribution box is mainly used for the functions of optical transmission terminal, such as terminal fusion, light distribution, wiring output, etc., which can effectively terminate, protect and manage the optical cable, and is the necessary equipment in the optical network transmission process.
2、 Product features Two point one This product is made of engineering plastics, flame-retardant ABS box, polycarbonate material, mixed with high-temperature living plastic after manufacturing. It has the reputation of alloy steel in plastics. The product has smooth lines, strong impact resistance and protection ability up to IP55. 2.2 this product is a multi-purpose wiring equipment, which can be used as an optical distribution box or as an optical distribution box
Fiber distribution box, FTTH fiber distribution box, FTTH fiber distribution box, FTTx fiber distribution box, ODB) optical fiber distribution box (YD / T 778-2006 optical fiber distribution box) Q / CT 2354-2011 technical requirements for optical fiber distribution box is applicable to the wiring connection between optical fiber cable and optical communication equipment. Through the adapter in the distribution box, optical jumper is used to lead out the optical signal and realize the optical wiring function. It is suitable for the protective connection of optical cable and wiring pigtail, and also suitable for the optical fiber terminal point in the optical fiber access network to use the optical fiber distribution box. It is suitable for a variety of use scenarios: indoor, outdoor, wall hanging, pole hanging, new and old buildings, FTTH Optical fiber access network. Bixin communication's products are various in specifications, novel in style, perfect in quality, exquisite in workmanship, reasonable in price, convenient in transaction, perfect in service and after-sale for life. Bixin adheres to the spirit of people-oriented, quality first and quality service. Optical fiber junction box: optical fiber junction box, optical fiber junction box, optical fiber junction box In order to adapt to the promotion of three networks integration and FTTx, BICOM introduces the FTTx optical distribution network solution from the office end to the user desktop. The products mainly include omdf optical fiber distribution frame, three in one optical distribution frame, ODF optical fiber distribution frame, three in one optical fiber distribution frame, optical cable junction box, three in one optical junction box, four in one optical junction box, three in one box, four in one optical fiber distribution box, optical cable junction box, optical cable terminal box , cold connector, quick connector, jumper, distribution cable, leather cable, local wiring cable, passive components, line auxiliary facilities, etc. Than the letter of communication FTTx wiring everything, quality assurance! Welcome to consult at any time!!! With strong technical strength and perfect service, Bixin Communication Co., Ltd. welcomes the bright future of optical communication with the enterprise spirit of "innovation, efficiency and pragmatism" and the development strategy of "innovation, change and speed". Partners: China Telecom, China Mobile, China Unicom, China Radio and television, Great Wall broadband and other pull type 48 core optical cable terminal box!

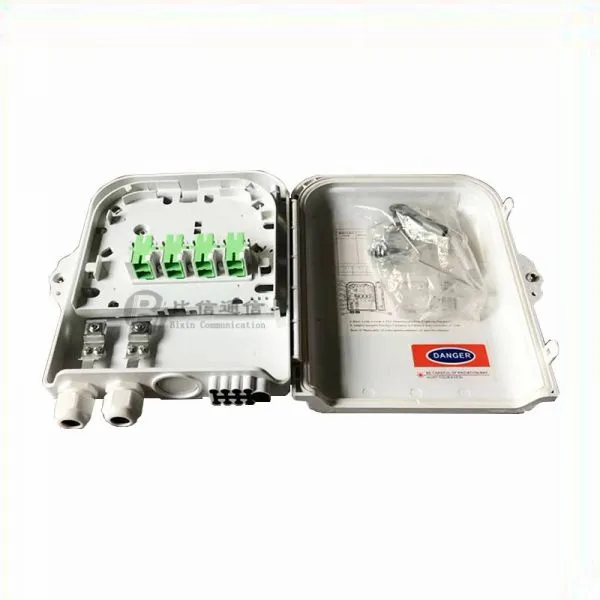

1、 The optical fiber distribution box is suitable for the connection point of the distribution optical cable and the incoming leather optical cable in the optical fiber access network. The box body adopts the wall hanging or holding pole installation mode, which is suitable for indoor and outdoor use; the connection and dispatching between the armored optical cable of the external line and the incoming leather optical cable are carried out through SC type optical fiber adapter and quick connector.
2、 Performance index working temperature: - 40 ℃ ~ + 70 ℃; storage temperature: - 40 ℃ ~ + 70 ℃; working humidity: ≤ 90% (+ 30 ℃); atmospheric pressure: 62kpa ～ 106kpa; insulation resistance: the insulation resistance between the grounding device and the box metalwork is not less than 2x104m Ω / 500V (DC); voltage resistance: the voltage resistance between the grounding device and the box metalwork is not less than 3000V (DC) / 1min; Insertion loss: Il ≤ 0.3dB (PC type); IL ≤ 0.3dB (APC type); return loss: RL ≥ 40dB (PC type); RL ≥ 50dB (UPC type); RL ≥ 60dB (APC type); interchangeability: ≤ 0.2dB 。

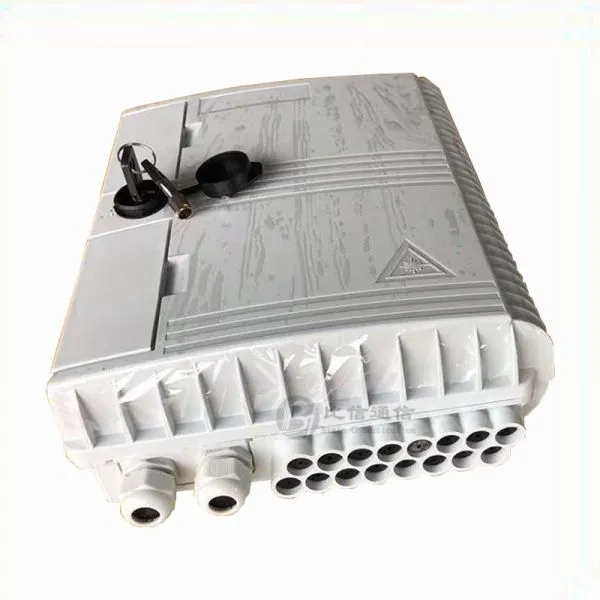

3、 Function Description: the box body is made of high-quality fire-retardant engineering plastics with good sealing and weather resistance, which is suitable for indoor and outdoor wall hanging and derrick installation, with the protection grade up to IP55; the special leather cable is fixed and positioned to ensure that the pull off force of the leather cable after fixation is not less than 20n; There are special quick connector passing holes, and the leather cable can be terminated outside the box. It is more convenient to terminate the quick connector; reliable armored cable introduction, fixation, stripping protection and grounding device, * multiple fixed 2 outdoor armored cables; multi-functional fusion protection seat, which can meet the requirements of 36 core fusion protection sleeve or 18 core cold connector; The flap structure design makes full use of the box space to ensure the sufficient bending radius of the optical fiber throughout the whole process, which is more convenient for the user to reserve appropriate redundant optical fiber and reasonable fiber route; the 12 optical fiber distribution box is suitable for the connection point of the distribution optical cable and the incoming leather optical cable in the optical fiber access network. The box body adopts the wall hanging or holding pole installation mode, which is suitable for indoor and outdoor use; the connection and dispatching between the armored optical cable of the external line and the incoming leather optical cable are carried out through SC type optical fiber adapter and quick connector. Installation hole distance: the box body adopts 3-point fixing mode, 2 points above and 1 point below. The installation is simple and convenient. The straight-line distance between the upper and lower parts is 307 mm, and the horizontal distance between the left and right is 197 mm.
