24 Cores ftth fiber optic splitter box
- 1000000 Piece / Pieces per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
- 24 Cores outdoor fiber distribution box for ftth
- 340*265*120 ftth outdoor optical fiber distribution box
- 24 Cores Type ftth fiber optic distribution box
- 380*245*115 16 core optic fiber distribution box for ftth
- lower price outdoor fiber optic distribution box
- Sixteen Cores optical distribution gepon box
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | TDTX | Model Number: | TDGFX-24B |
Packaging Details
Box/ carton
Product Description

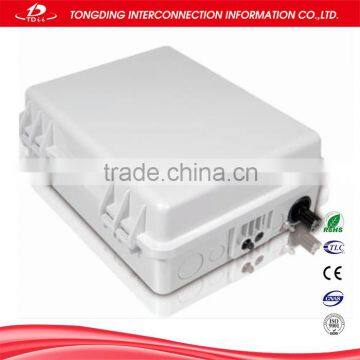

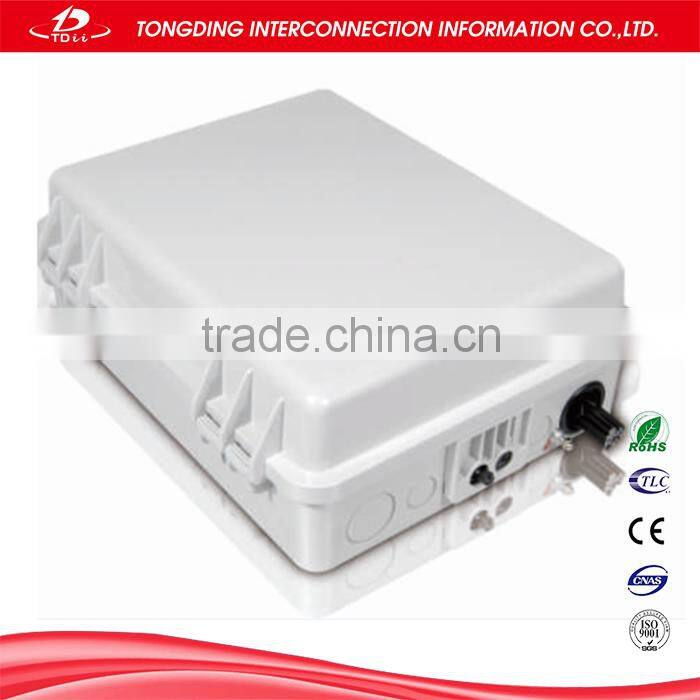

24 Cores ftth fiber optic splitter box
1,Description:
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
2,Features:
1,Total enclosed structure, be in nice shape.
2,Material is PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP65.
3,Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

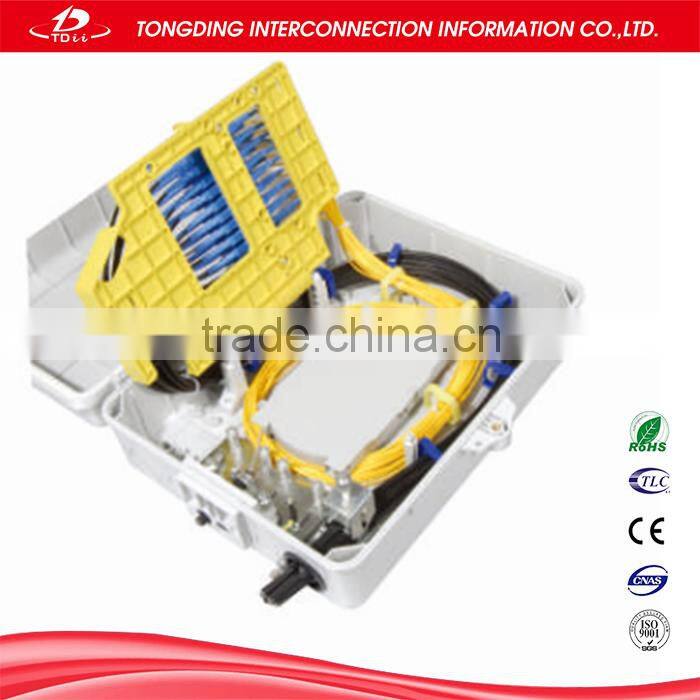

4,Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC/LC/PLC adaptor installation, easy maintenance.
5,Distribution panel can be flipped up, feeder cable can be placed by express port, easy for maintenance and installation.

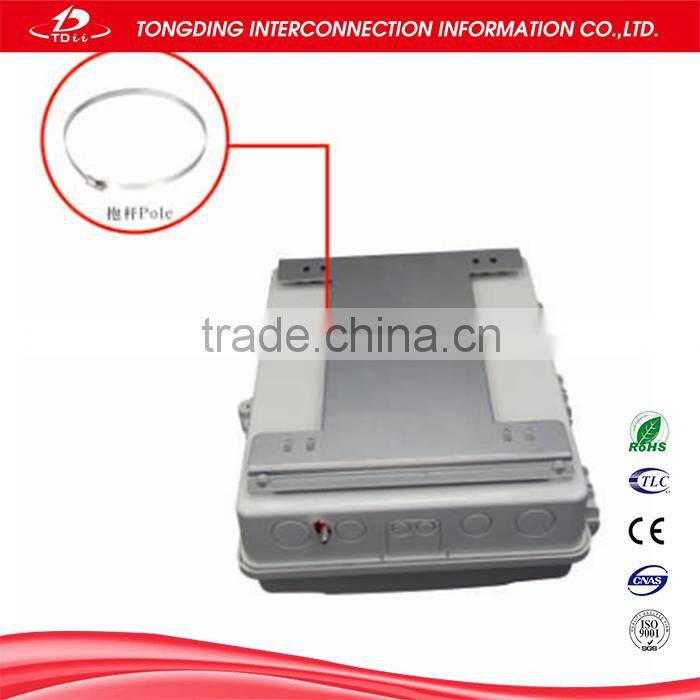

6,Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
3,Specification:
1,Environmental requirement
Working temperature:-40℃~+85℃
Relative humidity:≤85%(+30℃)
Atmospheric pressure:70KPa~106Kpa
2,Main technical datasheet
Insertion loss:≤0.2dB
UPC return loss:≥50dB
APC return loss:≥60dB
Life of insertion and extraction:>1000 times
3,Thunder-proof technical datasheet
The grounding device is isolated with the cabinet, isolation resistance is less than 20000MΩ/500V(DC);
IR≥20000MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover;U≥3000V
Package Notice:
There are different packages for different fiber optic components or devices.
The usual package is Carton. For Fiber Optic Adapter,Fiber Optic Pigtail, Fiber Optic Patch Cord,Fiber Optic Attenuator,Fiber Optic Terminal Box, Fiber Optic Splice Closure.They have an inner package individually and then will be packed into an outer carton.For Fiber Optic Cable, It is Wooden Drum.
Lead Time & Shipment Practice:
We usually send goods via DHL / UPS / Fedex / EMS / ARAMEX and airway for small order.We would arrange it for you if you have special requirements on it. Generally speaking, goods can be sent in 3-8 working days (depends on your order) after received payment.
For bulk order,We will arrange shipment by Air or by Sea after agreement with our customers.
Terms of Payment?
Usually, we accept payment by 100% T/T in advance (Telegraphic Transfer), West Union, PayPal and International Credit Card (small amount of money).
Q: Can you supply OEM or Odm Service?
A: We can supply OEM/ODM service absolutely!
Q: May I get free sample?
A: Normally, our product need sample fee, But we will charge your sample fee as less as we can, even sometimes free sample available. However, you have to pay us the courier cost like: DHL.FEDEX.UPS.TNT...
Q: What kind of payment methods and price term?
A: EXW, CIF, CFR, FOB ..etc. We accept Paypal, West Union, T/T usually. But we also accept L/C or OA under special situation.
Q: Warranty?
A: Products against defects are found to be defective under normal use within 1 year will be repaired without charge. If assume defects can’t be repaired will be replaced without charge within 1 year.
Company Profile
Jiangsu Tongding Optic-electronic Stock Co., Ltd. is a professional manufacturer of Optical Fiber, Fiber Optic Cables, Communication telephone Cables, LAN cables, Railway Signal Cables and Coaxial cables.
The company located in Wujiang city of Jiangsu province, occupies an area of 7,000,000 square meters and has 1924 employees. The annual output is over USD850.00 million.
The annual capacity of communication cable production is 2.5 million pair kilometers. The company is equipped with 62 most advanced insulation production lines, 16 cabling machines, 88 high-speed pair twisters and 15 jacket production lines.
The annual capacity of fiber optic cable is 7.50 million fiber-kilometers. The company is equipped with 22 coloring machines from MS company of Australian, 2 fiber ribbon forming machines form Nextrom of Finland, 14 secondary coating lines (among which 1 is from Rosendahl Austria and 3 is from Nextrom Finland), 20 cabling lines and 25 jacketing lines and inspection equipments and instruments for all electrical, mechanical, temperature and environmental performance.
The brand of TDGD has been awarded as Quality Free-Inspection certificate and China Top Brand certificate.
The company invested USD25.80 million in 2005 to develop railway signal cables, digital cable, inner shield digital cable, axis counting cable, responder cable and city subway cable. The 22000 square meter facility and inspection center has been built. The company purchased a three-layer co extrusion physical foam-skin line from Austrian Rosendahl Co., high-speed twister from French Podia Co., and equipped with advanced inner shield, cabling line, argon-arc welding and jacket equipments and purchased whole inspection equipment from Germany, American and Japan.
The company has passed the ISO9001 quality system in 2008, ISO14001-2004 environment system in 2008 and provincial measurement certificate in the same year. The cable products have been approved by TLC Approval Center and got the network access license from Broadcasting Bureau, General Staff Headquarters and National Telecommunications. The products have been broadly used by China Telecommunication, NetCom, China Mobile, UniCom, Railway Communication and Broadcasting, National Defense, Power supply, Railway, Highway, mine and oil field and covered 28 provinces, cities and autonomous regions.
The company has been recognized as provincial high-tech enterprise, and the products are recognized as provincial high-tech products and Tongding Optics is recognized as provincial famous brand name. The company has been rendered among Top 100 Private Enterprises and major taxation contributor of Wujiang from 2003 to 2006. Also in 2006, our company was awarded Top 10 Charity Enterprises of Wujiang.
The pursuit of providing high-quality product and service never stops. Our goal is to win the first place among competitors and challenge world famous enterprises. We will continue to develop our company and support national economy with the spirit of practice, innovation, honesty and endeavor.
You are welcome to visit our company!
