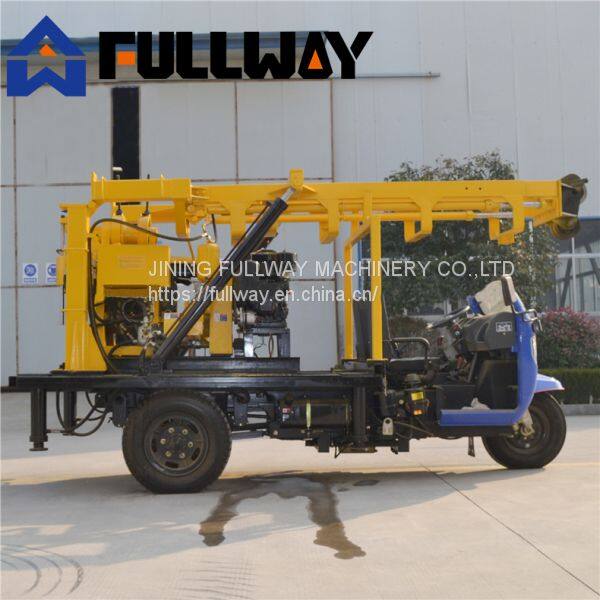

XYC-200A tricycle-mounted hydraulic core drilling rig
1. Characteristics of XYC-200A tricycle-mounted hydraulic core drilling rig
XYC-200A tricycle-mounted hydraulic core drilling rig is multi-function hydraulic vehicle-mounted core drilling machine .
The tricycle is Tricar. The drilling rig, engine, BW-160 pump and hydraulic drill tower are all installed on the tricycle, so it us easy for transportation.
XYC-200A tricycle-mounted hydraulic core drilling rig with BW160 pump which has high pressure and high flux, to ensure the drilling depth and hole diameter.
The tricycle drilling rig is equipped with shift unit,so the drilling rig can move back and forth
The highest speed can reach 1045r/min with 5 gears, which improves the drilling efficiency
The drilling rig is Adopted 53*59 drilling rod, which has high rigidity and strong delivery torque
Equipped with taper clutch, made the machine easy to operate and free of maintenance.
Use large module planetary gear and add supporting frame, highly increased hoisting and braking ability of the winch.
Vertical spindle are fixed by four groups of bearings to ensure that the core rig is rigid enough for gravel layer and other complex geological conditions.
2. Parameters of XYC-200A tricycle-mounted hydraulic core drilling rig
Drilling depth |
200m |
Max. open hole diameter |
75-260mm |
End hole diameter(mm) |
75 |
Drill rod diameter |
50mm |
Drilling tower height |
6500mm |
Drilling angle |
90-75 |
Spindle | |
Spindle speed |
64/128/287/557r/min |
Spindle stroke |
450mm |
Hoist | |
Max. single line hoisting capacity |
1600kg |
Single line lifting speed |
17/35/75/151r/min |
Tightrope diameter |
12.5mm |
Tightrope cubic measure |
35mm |
Hug floodgate belt width |
70mm |
Mud Pump | |
Type |
Horizontal Single Urn Twin-action |
Discharge displacement |
170l/min. |
Diesel |
S1115 22HP |
Electric motor |
15kw,1440r/min |
Max. pressure |
1.5mpa |
Work pressure |
0.7mpa |
Water inlet diameter |
30mm |
Water outlet diameter |
25mm |
Triangle conveyre belt |
B1728mm |
Chassis | |
Chassis |
Tricar(Pictures of vehicle-mounted drilling rigs for reference only) |
JINING FULLWAY MACHINERY CO.,LTD
Sales Manager:Tina Chen
Tel:0537-2341918
Mob: 008618053705706
Wechat:008618053705706
Whatsapp:008618753711678
QQ:2788526367
E-mail:sale@fullwaygroup.com
Send Inquiry to This Supplier
