XYX-200 Concrete Holes Core Drilling Machine Soil Drilling Machine for Agriculture
- qingdao
- T/T L/C D/P D/A Money Gram Credit Card PayPal Other Cash Escrow
- 5 days
You May Like
-
200m Rock Core Sampling Drilling Machine Core Drill Rig Machine Special With Low Price
-
Hydraulic Rotary Core Drilling Rig Portable Mini Sampling Drilling Machine Sales Africa
-
Truck-mounted Drilling Rig for Drilling Rig Machine Hydraulic Core Sampling
-
Low Price Sale Portable Hydraulic Drilling Rig Cheap Borehole Drilling Machine
-
600m Rock Core Sampling Drilling Machine SPT Rig Sales With High Quality
-
Xyx-3 Core Drilling Machine Price Sample Drilling Rig for Sale
Product Details
| Brand Name | Fullway | Place of Origin | China | |
| Type | Core Drilling Rig | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | one year | |
| Weight | 1300kg | Dimension(L*W*H) | 3800*2300*4500 | |
| Power Type | Diesel | Voltage | XYX-200 | |
| Condition | New | Power(W) | 16.2kw |
Product Description

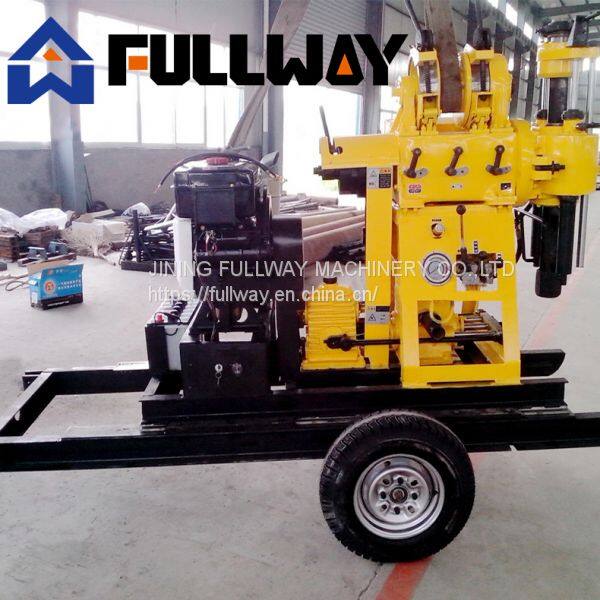

XYX-200 wheeled hydraulic core drilling rig
1. Characteristics of XYX-200 wheeled hydraulic core drilling rig
hydraulic cylinder, high efficiency
wheeled walking mechanism, very convenient for transport and adjusting the drilling rig level.
pressure gauge display the condition of the bottom of the drill hole.
the drilling rig is equipped with a ball card holding mechanism instead of chuck, and it can be operated without stopping the rod.
the working efficiency is high and the operation is convenient, safe and reliable.
2. Technical parameters of XYX-200 wheeled hydraulic core drilling rig
XYX-200 wheeled hydraulic core drilling rig | |
Drill hole depth | 200m |
Maximum opening diameter | 300mm |
Final hole diameter | 75mm |
Drill pipe diameter | 60mm |
Borehole inclination | 90°-75° |
Rig weight (without power) | 1300kg |
Trigonometric belt | B950*4 B1700*3 |
Active moving distance | 300mm |
Power | Diesel engine/motor 22hp/16.2kw |
A vertical scroll of painting | |
Shaft rotation speed | 64/128/ 287/ 557 r/min |
Vertical axis stroke | 450mm |
Windlass | |
Maximum lifting weight of single rope | 2400kg |
Single rope lifting speed | 0.41/ 0.82/1.64m/s |
Wire rope diameter | 13mm |
Wire rope capacity | 35m |
Hug floodgate caliber | 260mm |
Hug floodgate belt width | 70mm |
Mud pump | |
Type | Horizontal single cylinder double action |
Maximum displacement | Diesel engine 170L/min Matching motor 150L/min |
Maximum pressure | 3Mpa |
Work pressure | 1.5Mpa |
Inlet pipe caliber | 40mm |
Outlet pipe caliber | 30mm |
Triangle conveyer belt | B1728mm |
Type | CBT-F-314 |
Triangle conveyer belt | B1100*1 |
