200m Investigation Drilling Machine for Hard Rock Core Rig
- qingdao
- T/T L/C D/P D/A Money Gram Credit Card PayPal Other Cash Escrow
- 5 days
You May Like
-
Mining Diamond Core Drilling Machine of Hydraulic Portable Core Drilling Machine
-
Fullway Sale Mining Diamond Rotary Drilling Machine Small Drilling Rig Portable
-
Modern Simple Borehole Drilling Machine and Portable Hydraulic Drilling Rig for Sale
-
Agricultural Mobile Drilling Machine Borehole Drill Machine on Drill
-
200m Geological Diamond Core Drilling Machine Gold Mining Drilling Rig for Sale
-
Shallow Sampling Drilling Rig Soil and Core Sampling Drilling Machine for Sale
Product Details
| Brand Name | Fullway | Place of Origin | China | |
| Model Number | XYC-200 | Type | Core Drilling Rig | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | one year | Weight | 7000 | |
| Dimension(L*W*H) | 1110*725*965 | Power Type | Diesel | |
| Voltage | 220V | Usage | Coal | |
| Condition | New | Power(W) | 22HP |
Product Description

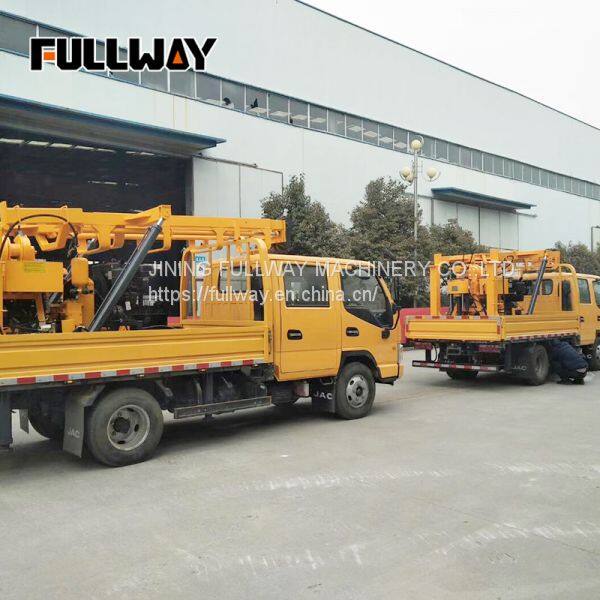

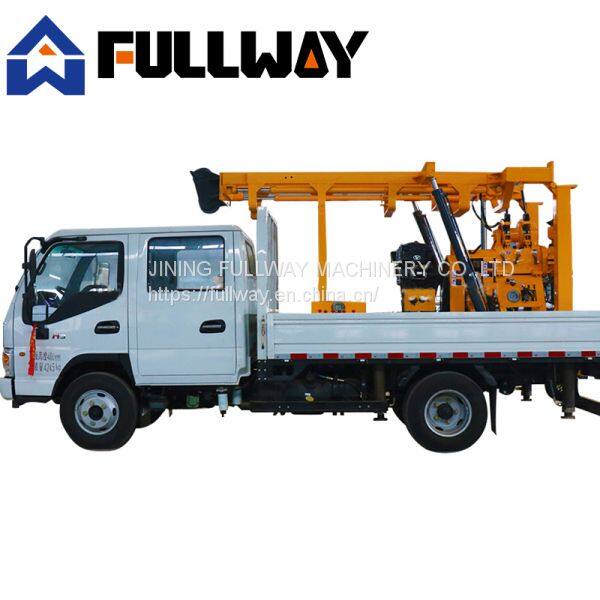

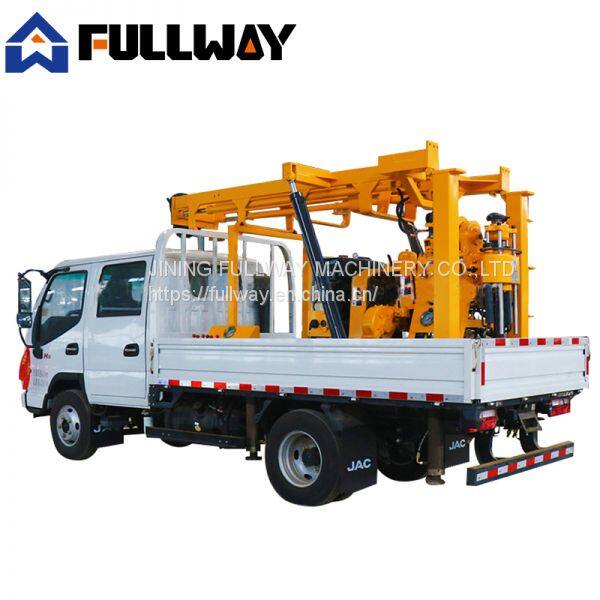

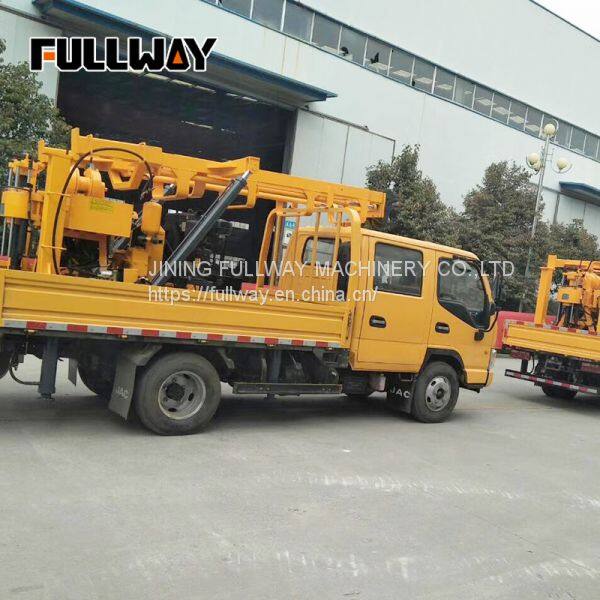

XYC-200 vehicle-mounted hydraulic core drilling rig
1. Characteristics of XYC-200 vehicle-mounted hydraulic core drilling rig
XYC-200 is a multi-function vehicle-mounted hydraulic core drilling rig.Automobile chassis chassis, transmission system and rig winch, mud pump and other important accessories installed in the chassis. the layout is reasonable, compact, and easy to operate.
It is equipped with high pressure,big flow BW160 mud pump,which can ensure drilling depth and diameter.
the rig has shifting device, it can move on the vehicle and is convenient to operate while drilling.
the hydraulic folding mast is safe and convenient to transport
2.Applications of XYC-200 vehicle-mounted hydraulic core drilling rig
road and high-rise building foundation exploration
all kinds of concrete structure inspection holes
river embankments
subgrade grouting holes
drilling and direct grouting
civil water well
ground temperature central air conditioners.
3. Parameters of XYC-200 vehicle-mounted hydraulic core drilling rig
XYC-200 vehicle-mounted hydraulic core drilling rig | ||
Drilling depth(m) | 30-200 | |
Drilling diameter(mm) | 300-75 | |
Drilling angel(mm) | 90-75 | |
Spindle rotating speed(r/min) | 64/128/287/557 | |
Spindle stroke(mm) | 450 | |
Main hoisting capacity (single line)(Kg) | 1600 | |
Main hoisting line capacity (m) | 35 | |
Hoisting speed(r/s) | 17/35/75/151 | |
Wireline diameter(mm) | 12.5 | |
Mast height(mm) | 7000 | |
Mast effective height(mm) | 6500 | |
Kelly/active pipe(mm) | 59*53 | |
Drill rod(mm) | 42/50/60 | |
Drill rig weight(kg) | 1150 | |
Power unit | Model | ZS1115 diesel engine |
Rated power | 14.7kw/2200rpm | |
BW-160 mud pump | Rated flow(l/min) | 160 |
Rated pressure(mpa) | 1.3 | |
Driving power(kw) | 5.15 | |
Main machine weight (kg) | 190 | |
Dimension(mm) | 1110*725*965 | |
Chassis | light truck(Pictures of vehicle-mounted drilling rigs for reference only) | |
