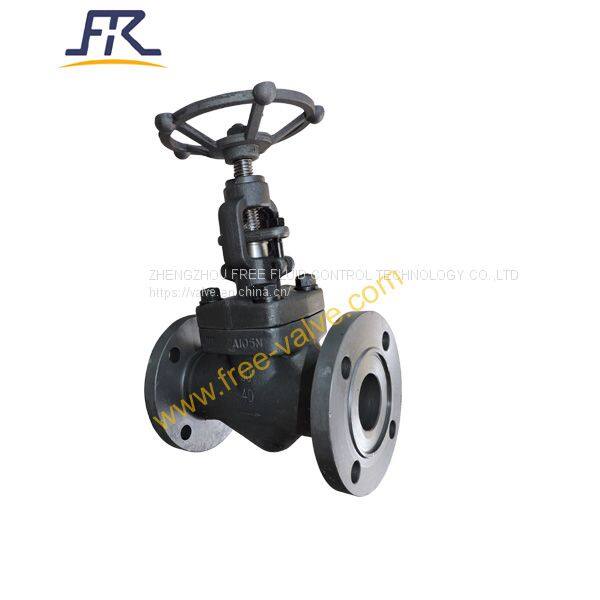

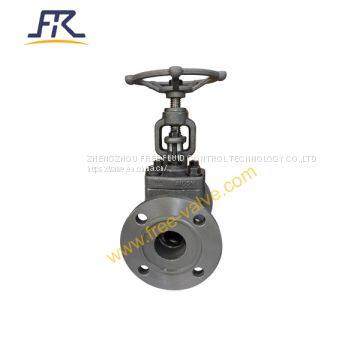

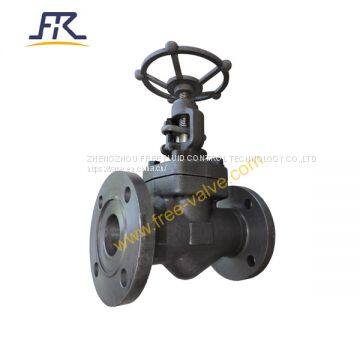

Industrial API602 Forged Steel A105 Stop Globe Valve FRZ41H 800Lb

FREE-VALVE’s flanged end forged steel globe valve is compact, sturdy and ideal for high pressure and high temperature applications and consist of a disc and stem connection designed for on/off. Stem seal consists of flexible graphite packing with anti extrusion rings for optimum stem sealing. These valves are outside screw and yoke type (OS & Y) with rising stem and rising handwheel.

Features

1. Flanged end forged steel globe valve have the advantages of more uniform structure, greater density, higher strength integrity,so that the flanged end forged steel globe valves are applicable for high pressure and high temperature working conditions.

2. Efficient packing seal at backseat to ensure no leakage from stem.

3. Outside Screw & Yoke construction facilitate stuffing box maintenance.

4. Metallic ring gasket or spiral wound gasket can be applied to ensure the tight seal of body/bonnet joint.

5. Fully guided disc ensures accurate alignment of disc and seat and reduces wear on seating surfaces.

6. Flange end forged steel globe valves with the same structure as screwed end & socket weld globe valve except the connection end, there are two types for the flange connection, one is integral type, which is a entirety with the valve body, another type is welded flange, the flange was welded on the SW end globe valves

Technical Specification

1. Flange connection :ASME B16.5,GB/T9113

2. Design standard:API 602, ASME B16.34

3. Pressure Range: Class150～ Class2500

4. Size Range:1/2”～2”

5. Material:Forged Carbon, Stainless or Alloy Steel Materials

6. Working Temperature ≤500℃

7. Operating Type:Handwheel

8. Sealing surface material:Alloy

9. Pressure test GB/T13927, API598

10. Face to Face GB/T12221, ASME B16.10

Application

FREE-VALVE’s flanged ends forged steel globe valves offer high performance, reliability and safety. The Globe Valve are especially suitable for high pressure and high temperature application in steam, oil and gas processing, power industries, in chemical and petrochemical industries.

Model:FRJ41Y

Price:100-2000USD/set

Price terms:FOB,CFR,FCA,CIF

Payment terms:TT,LC

Origin:China
