1.Overviews:
industrial water pump is a new generation product which
is developed on the basis of the lastest technology and craftwork.
A hole is addad to make sure that stronger sewage can be cleaned quickly when pump is jammed.
The unique lubrication oil mechanical seal makes the performance more reliable and avoids to damage mechanical seal when it operates without water.
2.Main usage:
♦ Municipal Project,Sewage Project,Instruction Project.
♦ Transportion of the sewage of uptown.
♦ Sewage transportion in Hospital,Hotel and so on.
♦ Classification of municipal sewage treatment factory and concentrate treatment
systems engineering.
♦ Tansportation of the factory and contaminated water.
3.Operation condition:
1. The temperature of medium no more than 80°C,
the density of medium is 1.0 ~1.3* 10³kg/m³
PH is within 5~9
2.Max. diameter of solid should be less than 75mm.
3.Max. suction lift no more than 7m.
4. Technical Specification:
Specification: | ||
1.Inlet/Outlet |
2''(50mm), 3''(75mm), 4''(100mm), 6''(150mm), 8''(200mm), 10''(250mm), 12''(300mm) |
|
2.Impeller Diameter |
158.74mm-457.2mm |
|
3.Rotary Speed |
550RPM-2150 RPM |
|
4.Flow Rates |
8m3/h-1275m3/h |
20GPM-5500GPM |
5.Head |
6m-63m |
|
6.Horsepower |
1HP-125HP |
|
7.N.W |
92KG-998KG |
|
8.G.W |
114KG-1066KG |
|
9.Solid Passing |
20.63mm-76.2mm |
|
10.Material |
Cast Iron, ADI, CD4MCU, 316 SS, Alloy 20, C276. |
|
11.Diesel Driving |
Water cooled or air cooled |
|
12.Method of Connection |
Self-priming pumps are available as basic units or may be flex-coupled, V-belt driven or engine mounted. |
|
13.Drive Variation |
Cummins, Deutz, Ricardo, Perkins or Chinese Diesel, Electric Motor |
|

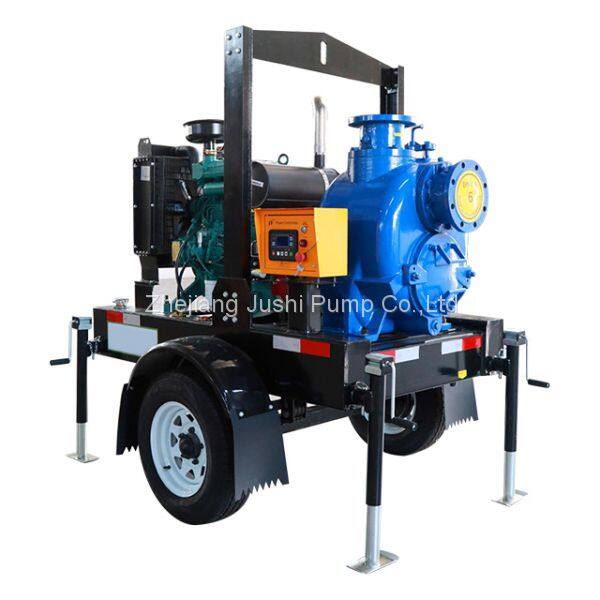

14.Skid Mounted on Trailer |
2 or 4 wheels Trailer/Trailor,Cart |
|
15.Package |
Exporting plywood case |
|
16.Certification |
CE , ISO9001:2000 |
|
