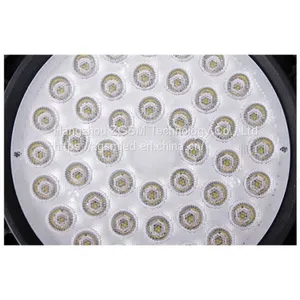

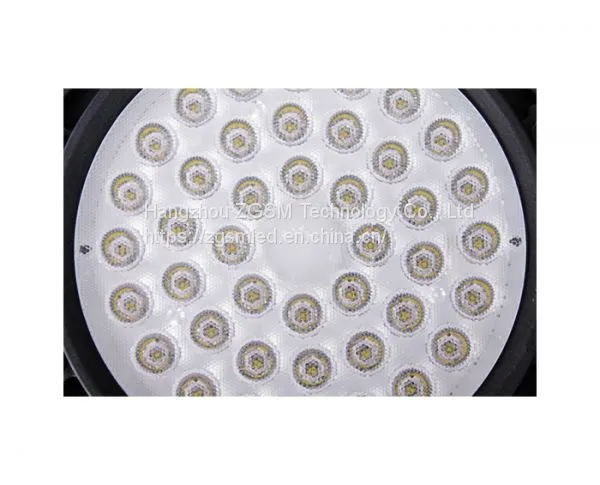

280W HIGH TOWER LED PROJECTOR LIGHT
Series J LED Projector Light
Model:
ZGSM-TGD280J
Application：
Stadium | Arena | Golf course | Tennis court | Airport
KEY FEATURES
1. Up to 840W, max lumens is 94, 000lm.
2. Special circuit design, single LED’s damage won't affect others' normal work.
3. Modular design for easy installation, replacement and maintenance.
4. Mounting bracket for 360 degree adjustment.
5. Multiple lighting control options are available, e.g. DALI, 1-10V.
6. Designed to last at least 100, 000 hours at L70.
7. Multiple lighting distributions are available.
SPECIFICATIONS
Model |
ZGSM-TGD280J |
LED Brand |
Philips LUXEON® TX |
Driver Brand |
INVENTRONICS EUC Series |
Norminal Wattage |
280W |
LED Quantity |
126 Pcs |
Input Voltage |
100-240/277VAC, 50/60Hz |
Power Efficiency |
>90% |
Power Factor |
>0.95 |
Lamp Rated Luminous Efficiency |
>112lm/w |
Lamp Rated Lumen output |
31360 lm (Lumen tolerance +/- 5%) |
Color Rendering Index |
Ra>70 |
Color Temperature |
3000K, 4000K, 5000K or 5700K |
Photometric Type |
30，45, 60 degrees |
Optimal Operating Temperature |
25℃ |
Storage Temperatures |
‘-40℃~+50℃ |
Working Environment |
Between-40°C~+50°C, 10%~90%RH |
Total Harmonic Distortion |
|
Lumen Maintenance |
> 100,000 hours -L70, @25 ºC (77 ºF) |
Body and Shell Materials |
Stretched Aluminium Alloy |
IP Rating |
IP66 with test report |
Certification |
CE,ROHS |
Optional Function |
1-10V DC Dimming |
Warranty |
5 years |
PACKING DETAILS
Fixture Dimension |
634 x 192 x 291 mm |
Fixture Weight |
14.0 kg / 30.9 lbs |
Packing Dimension |
680 x 225 x 380 mm |
Packing Weight |
15.5 kg /34.2 lbs |
