280W HIGH TOWER LED PROJECTOR LIGHT

Hangzhou ZGSM Technology Co., Ltd

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Working Temperature(℃):

Payment & Shipping

Payment Methods:

Port of Shipment:

HANGZHOU

Delivery Detail:

7 days

Working Temperature(℃) ,

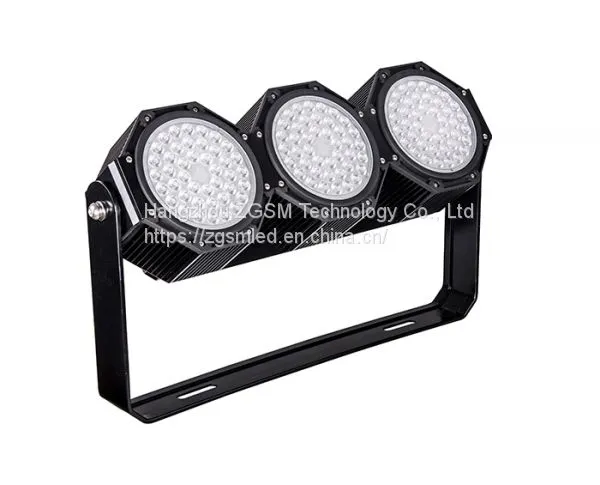

280W HIGH TOWER LED PROJECTOR LIGHT

Series J LED Projector Light

Model:

ZGSM-TGD280J

Application：

Stadium | Arena | Golf course | Tennis court | Airport

KEY FEATURES

1. Up to 840W, max lumens is 94, 000lm.

2. Special circuit design, single LED’s damage won't affect others' normal work.

3. Modular design for easy installation, replacement and maintenance.

4. Mounting bracket for 360 degree adjustment.

5. Multiple lighting control options are available, e.g. DALI, 1-10V.

6. Designed to last at least 100, 000 hours at L70.

7. Multiple lighting distributions are available.

SPECIFICATIONS

Model	ZGSM-TGD280J
LED Brand	Philips LUXEON® TX
Driver Brand	INVENTRONICS EUC Series
Norminal Wattage	280W
LED Quantity	126 Pcs
Input Voltage	100-240/277VAC, 50/60Hz
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	>112lm/w
Lamp Rated Lumen output	31360 lm (Lumen tolerance +/- 5%)
Color Rendering Index	Ra>70
Color Temperature	3000K, 4000K, 5000K or 5700K
Photometric Type	30，45, 60 degrees
Optimal Operating Temperature	25℃
Storage Temperatures	‘-40℃~+50℃
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	<10%
Lumen Maintenance	> 100,000 hours -L70, @25 ºC (77 ºF)
Body and Shell Materials	Stretched Aluminium Alloy
IP Rating	IP66 with test report
Certification	CE,ROHS
Optional Function	1-10V DC Dimming
Warranty	5 years
