Mining in the Open Double-suction Centrifugal Pumps

Mining in the Open Double-suction Centrifugal Pumps thumbnail-1
Mining in the Open Double-suction Centrifugal Pumps thumbnail-2
Mining in the Open Double-suction Centrifugal Pumps photo-1

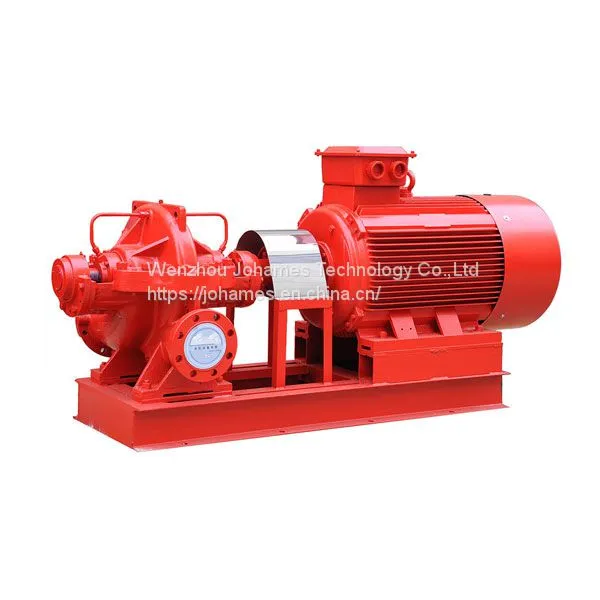

Mining in the Open Double-suction Centrifugal Pumps photo-2
US$ 1200 - 5000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
JOHAMES
Place of Origin:
China
Model Number:
S
Contact Supplier Request Quote Chat Now
Zhejiang Jushi Pump Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name JOHAMES
Place of Origin China
Model Number S
Application Maritime
Fuel Diesel
Power Electric
Usage Water
Theory Centrifugal Pump
Standard or Nonstandard Standard
Structure Single-stage Pump
Pressure High Pressure

Summarize:



1.mining in the open double-suction centrifugal pumps use is a single stage double suction split casing pump with high capacity and pressure, which can transmit clean water or similar liquids(Oil).

2. S,XS single stage double suction split case are widely used in delivering liquids to the water plant,circulation water system of airconditioner,pipe net syetem of supplying heated water,construction,drainage pumping station,power station,industrial water supply system,ship industry,mine and etc.



Product details:



Pump Type

Split Casing Pump

Casing Material

HT200

Impeller

SS304,SS316,Copper,HT200

Pump Sealing

Packing seal,Mechanical seal

Capacity Range

126m3/h~8520m3/h

Head Range

8m~140m

Inlet/Outlet diameter

6"(150mm)~32"(800mm)

Rotary Speed

1450rmp/2950rpm/585rpm/730rpm/970rpm

NPSH(r)

2.5m~7.5m

N.weight

165kgs~2550kgs

Pump Parts

Casing,Pump cover,Impeller,Shaft, Double suction sealing ring

Shaft sleeve,Bearing etc

Certificate

ISO9001:2008,CE,TUV





Model

CapacityQ

HeadH

Speed n

Power(KW)

effeciencyη

NPSH     r (m)

( m3/h)

(m)

(r/min)

aix power

motor power

(%)

100S90

80

90

2950

30.1

37

65

2.5

100S90A

72

75

23

30

64

2.5

150S100

160

100

59.8

75

73

3.5

150S78

160

78

45

55

73.5

3.5

150S78A

144

62

33.8

45

72

3.5

150S50

160

50

27.3

37

80

3.9

150S50A

144

40

20.9

30

75

3.9

150S50B

133

36

18.6

22

70

3.9

200S95

280

95

91.7

110

79.2

5.3

200S95A

270

75

73.5

90

75

5.3

200S63

280

63

58.3

75

82.7

5.8

200S63A

270

46

45.1

55

75

5.8

200S42

280

42

38.1

45

84.2

6

200S42A

270

36

33.1

37

80

6

250S65

485

65

1450

109

132

78.6

3

250S65A

468

54

89.4

110

77

3

250S39

485

39

61.5

75

83.6

3.2

250S39A

468

30.5

49.3

55

79

3.2

250S24

485

24

36.9

45

85.8

3.5

250S24A

414

20.3

27.6

37

83

3.5

250S14

485

14

21.5

30

85.8

3.8

250S14A

432

11

15.8

18.5

82

3.8

300S110

790

110

295.7

440

80

4

300S90

790

90

242.8

315

79.6

4

300S90A

756

78

217

280

74

4

300S90B

720

67

180

220

73

4

300S58

790

58

149.9

180

84.2

4.4

300S58A

720

49

118.6

160

81

4.4

300S58B

684

43

100

132

80

4.4

300S32

790

32

79.2

110

86.8

4.6

300S32A

720

26

60.7

75

84

4.6

300S19

790

19

47

55

86.8

5.2

300S19A

720

16

39.2

45

80

5.2

300S12

790

12

30.4

37

84.8

5.5

300S12A

684

10

3.9

30

78

5.5

350S125

1260

125

534

710

80.5

5.4

350S125A

1181

112

462

630

78

5.4

350S125B

1098

96

373

500

77

5.4

350S75

1260

75

303

355

85.2

5.8

350S75A

1170

65

247

280

84

5.8

350S75B

1080

55

197

220

82

5.8

350S44

1260

44

173

220

87.5

6.3

350S44A

1116

36

131

160

84

6.3

350S26

1260

26

102

132

87.5

6.7

350S26A

1116

21.5

78.8

90

83

6.7

350S16

1260

16

64.5

75

85.3

7.1

350S16A

1044

13.4

48.8

55

48

7.1

500S98

2020

95

970

678

800

79.5

4

500S98A

1872

83

540

630

78.5

4

500S98B

1746

74

452

560

78

4

500S59

2020

59

391

450

83

4.5

500S59A

1872

49

333

400

75

4.5

500S59B

1746

40

257

315

74

4.5

500S35

2020

35

219

280

88

4.8

500S35A

1746

27

151

220

85

4.8

500S22

2020

22

144.1

185

84

5.2

500S22A

1746

17

101

132

80

5.2

500S13

2020

13

86.2

110

83

5.7

600S75

3170

75

727

800

89

7.5

600S75A

2880

65

580

630

88

7.5

600S47

3170

47

465

560

88

7.5

600S32

3170

32

310

400

89

7.5

600S32A

2880

27

238

280

89

7.5

600S22

3170

22

223

280

85

7.5

600S22A

2880

18.2

168.5

200

84.5

7.5
