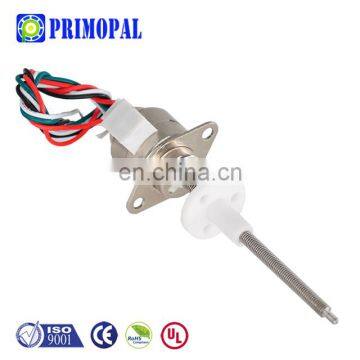

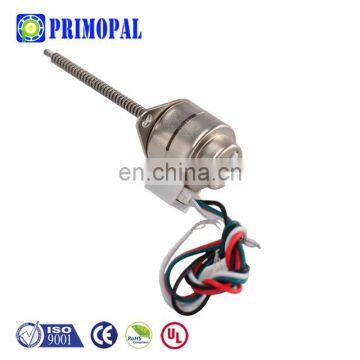

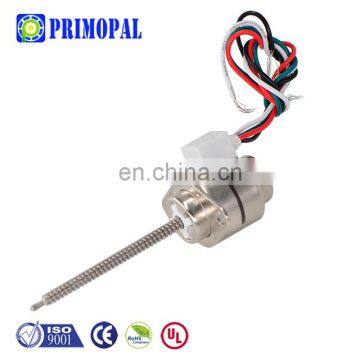

6v 30mm 35mm 2 Axis xy Low Speed Non Captive Small PM Stepper Linear Motor Actuator With Lead Screw and Quick Release for Camera
US$ 15 - 60
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
PrimoPal
Place of Origin:
Shanghai, China
Model Number:
PPML20 Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC Hollow Shaft Waterproof Closed Loop Customizable Stepper Motor, Mini Nema 17 23 34 Hybrid Stepper MotorUS$ 10 - 20MOQ: 1 Piece -
18 Degree 12v Cheap Low Voltage High Precision 10mm PM Stepper MotorUS$ 1 - 5MOQ: 1 Piece
-
Nema 23 2 Phase High Quality Micro Step Closed Loop Servo Stepper DriverUS$ 31.3 - 33.2MOQ: 1 Unit
-
8.2A 80 VAC 2 Phase Digit Input Leadshin Laser for ic Ethercat 5 Axi Dmx Nema 34 Close Loop Step DriverUS$ 53.3 - 56.5MOQ: 1 Unit
-
8.2A 80 VDC 5000cpr Motion Silent Torque Bipolar for ic 5 Axi 3d Printer Nema 34 Close Loop Step Motor With DriverUS$ 41.4 - 44MOQ: 1 Unit
Brand Name
PrimoPal
Place of Origin
Shanghai, China
Model Number
PPML20 Series
Type
Hybrid
Phase
2
Certification
CE, ISO, ROHS, UL
Current / Phase
Variable, can be custom

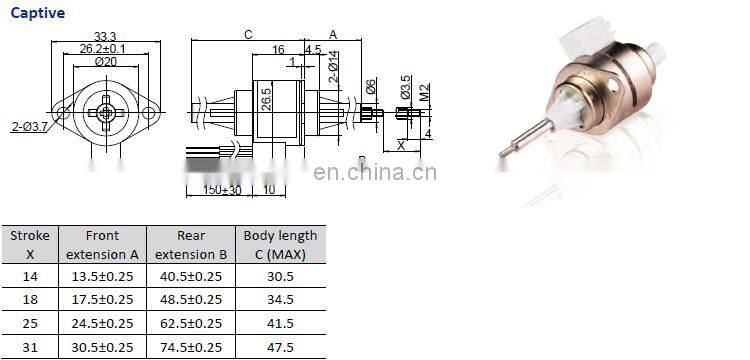

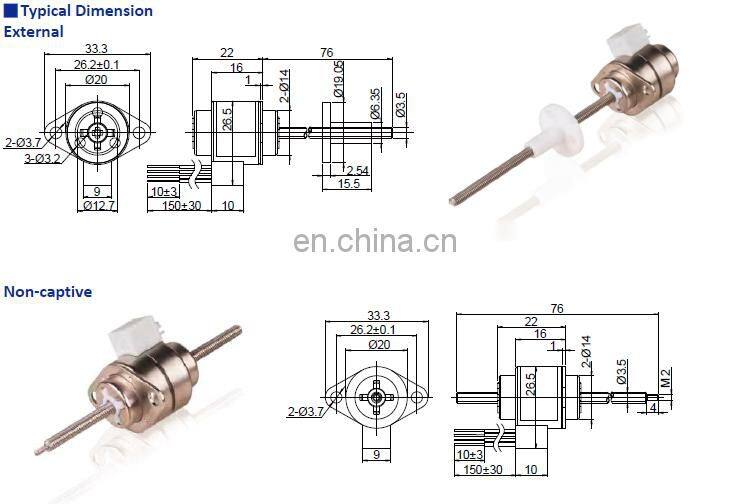

PrimoPal provides three sizes 20 mm, 25 mm and 36 mm PM stepper linear actuators. For each size, three types of
linear structures are available non captive, external and captive. Step travel varies from 0.00625 to 0.3333 mm/step
and the maximum linear force can reach 115 N.
| Ambient Temperature | -10 °C ~ +50 °C |
| Dielectric Strength | 500 VAC for one minute |
| Insulation Resistance | Class B |
