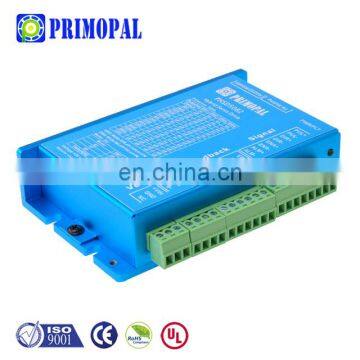

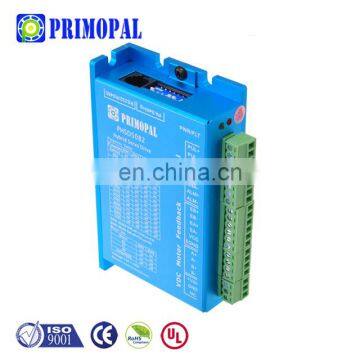

Nema 23 2 Phase High Quality Micro Step Closed Loop Servo Stepper Driver
US$ 31.3 - 33.2
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
PrimoPal
Place of Origin:
Shanghai, China
Model Number:
PHSD5082
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
8.2A 80 VAC 2 Phase Digit Input Leadshin Laser for ic Ethercat 5 Axi Dmx Nema 34 Close Loop Step DriverUS$ 53.3 - 56.5MOQ: 1 Unit -
8.2A 80 VDC 5000cpr Motion Silent Torque Bipolar for ic 5 Axi 3d Printer Nema 34 Close Loop Step Motor With DriverUS$ 41.4 - 44MOQ: 1 Unit
-
8.2A 130 VAC Ethercat 2phase 5 Axi Dmx Price Long for Cnc Board Jmc Digital Intellig Close Loop Step DriverUS$ 93 - 98.7MOQ: 1 Unit
-
8.2A 130 VAC Micro Control and Set Unipolar Cnc Micro Bipolar for Cnc Router Close Loop Stepper Driver MotorUS$ 93 - 98.7MOQ: 1 Unit
-
80 VDC 2 Phase Micro Control Strong Low Price for Sewing Machine Nema 34 Hybrid Step Servo Motor and DriverUS$ 41.4 - 44MOQ: 1 Unit
Brand Name
PrimoPal
Place of Origin
Shanghai, China
Model Number
PHSD5082
The hybrid servo drive PHSD5082 is a versatility fully digital stepper drive, adopting the latest DSP with advanced variable current and variable frequency control algorithm. It provides a high-performance and cost-effective driving solution of stepper servo system. The drive PHSD5082 has compact size, reducing the electromagnetic interference between the lines. When working with PrimoPal’s stepper servo motor, it combines features of both open loop steppers and brushless servo systems, and offers many unique advanced features for excellent motion control system performance, while at a fraction of the cost of a servo system.
