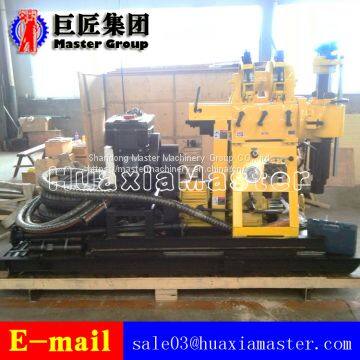

Help CenterXYX-130 Wheel Type Hydraulic Drill Water Well Machine
Related Products
-
XYD-130 Crawler Type Hydraulic Rock Layer Exploration Drilling MachineUS$ 6000 - 7500MOQ: 1 Set -
HZ-200Y Type Civil Water Well Conditioning Drilling MachineUS$ 4000 - 8000MOQ: 1 Set
-
HZ-200YY Hydraulic Core Sampling Drilling MachineUS$ 4000 - 6000MOQ: 1 Set
-
XYX-200 200 Meters Depth Night Pressure Exploration Mechanical EquipmentUS$ 4000 - 6000MOQ: 1 Set
-
XYD-200 Crawler Hydraulic Water Well Drilling Rig Exploration Sampling MachineryUS$ 4000 - 7000MOQ: 1 Set
1. Application range of XYX-130 wheeled drilling rig
Geological survey and exploration, basic exploration for roads and high-rise buildings, inspection holes for various concrete structures, river embankments, subgrade grouting holes, direct grouting, civil wells and ground temperature central air conditioners.
2.Main features of XYX-130 wheeled hydraulic drilling rig

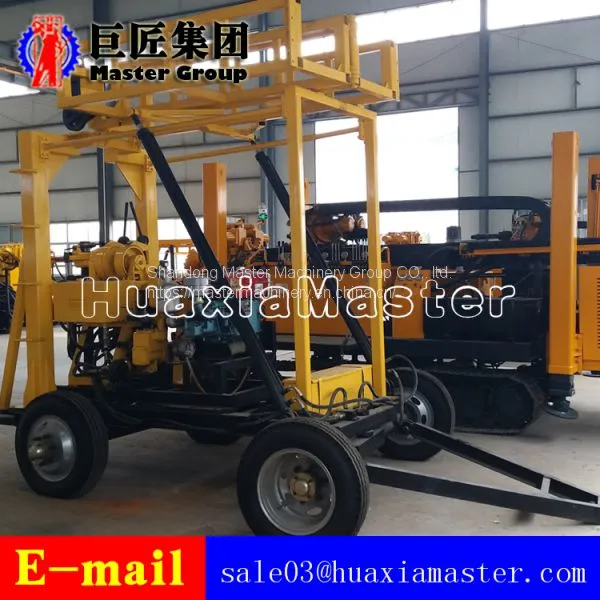

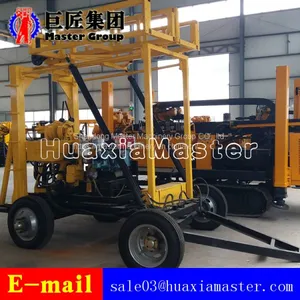

The rig is equipped with a wheeled walking mechanism, which is convenient for the whole machine to move.
With oil pressure feeding mechanism to improve drilling efficiency.
The drill rig is equipped with a ball card holding mechanism instead of chuck, and it can be operated without stopping the rod. The working efficiency is high and the operation is convenient and safe and reliable.
Equipped with pressure gauge at the bottom of the hole to facilitate mastering the hole in the hole.
3.Technical parameters of XYX-130 wheeled drilling rig
XYX-130 wheeled drilling rig | |
Drilling depth |
130m |
Max open hole caliber |
220mm |
End hole caliber |
75mm |
Drilling Rod diameter |
50mm |
Drilling angle |
90°-75° |
Drill weight |
950kg |
Spindle | |
Spindle speed |
142 285 570r/min |
Spindle stroke |
450mm |
Windlass | |
Maximum lifting weight of single rope |
1600kg |
Single rope lifting speed |
0.41 0.82 1.64m/s |
Drum diameter |
140mm |
Wire rope diameter |
13mm |
Wire rope capacity |
27m |
Mud pump | |
Type |
Horizontal single cylinder double action |
Displacement diesel engine / motor |
95/77L/min |
Maximum pressure |
1.2Mpa |
Work pressure |
0.7Mpa |
Inlet Size |
30mm |
Outlet pipe diameter |
20mm |
Trigonometric belt |
B1575mm |
