XY-200 Borehole Drilling Diamond Core Sample Machine Artesian Well Water Well Drilling Rig

XY-200 Borehole Drilling Diamond Core Sample Machine Artesian Well Water Well Drilling Rig thumbnail-1
XY-200 Borehole Drilling Diamond Core Sample Machine Artesian Well Water Well Drilling Rig thumbnail-2
XY-200 Borehole Drilling Diamond Core Sample Machine Artesian Well Water Well Drilling Rig thumbnail-3
XY-200 Borehole Drilling Diamond Core Sample Machine Artesian Well Water Well Drilling Rig thumbnail-4
XY-200 Borehole Drilling Diamond Core Sample Machine Artesian Well Water Well Drilling Rig thumbnail-5
XY-200 Borehole Drilling Diamond Core Sample Machine Artesian Well Water Well Drilling Rig photo-1

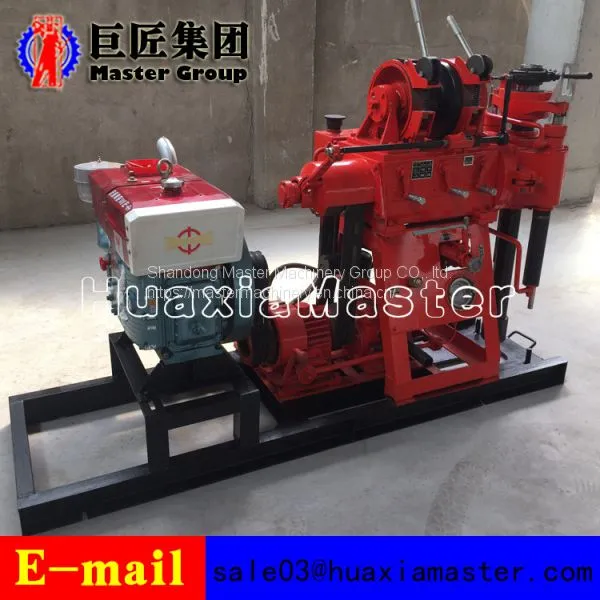

XY-200 Borehole Drilling Diamond Core Sample Machine Artesian Well Water Well Drilling Rig photo-2

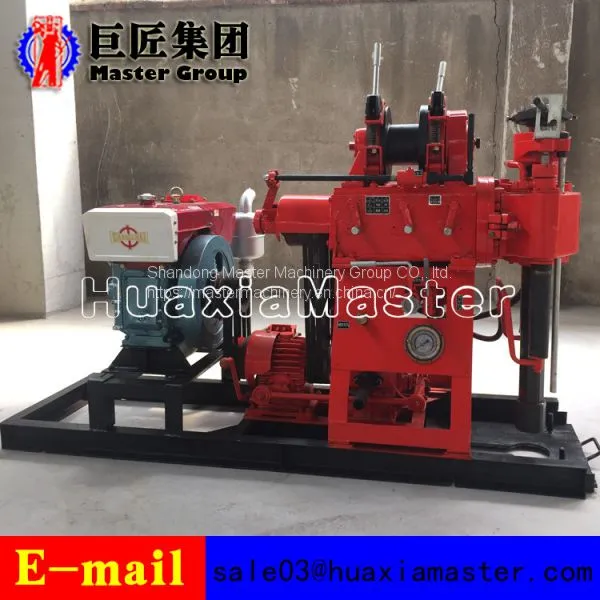

XY-200 Borehole Drilling Diamond Core Sample Machine Artesian Well Water Well Drilling Rig photo-3

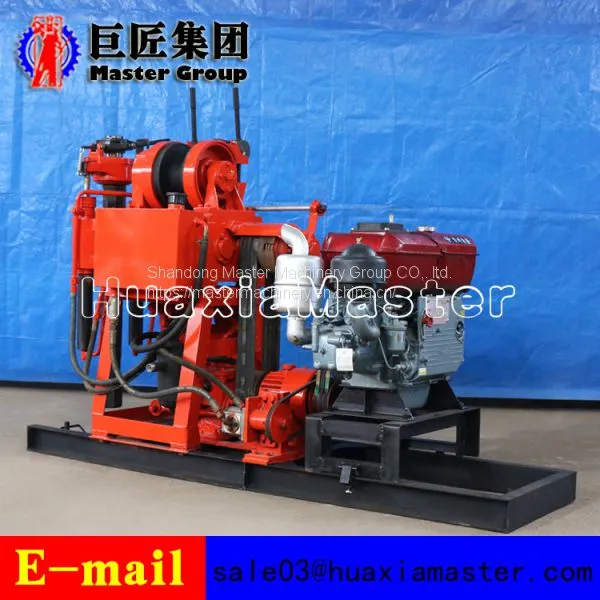

XY-200 Borehole Drilling Diamond Core Sample Machine Artesian Well Water Well Drilling Rig photo-4

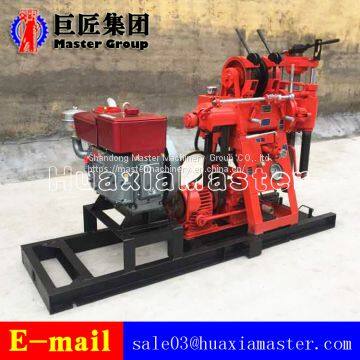

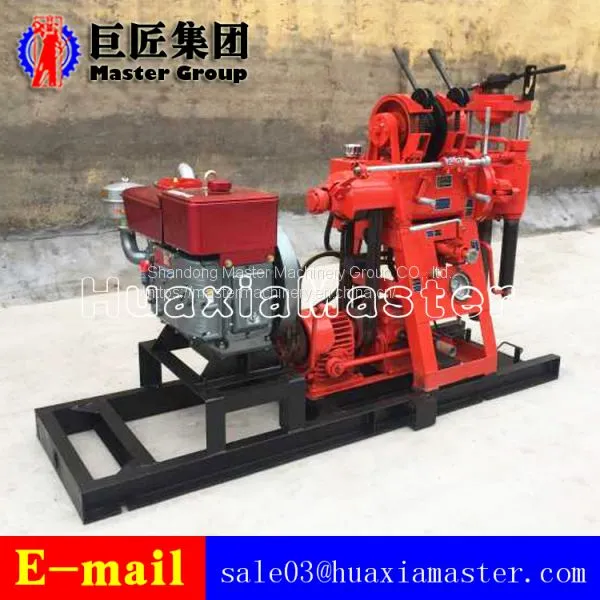

XY-200 Borehole Drilling Diamond Core Sample Machine Artesian Well Water Well Drilling Rig photo-5
US$ 4000 - 6000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Master Machinery
Place of Origin:
China
Model Number:
xy-180
Contact Supplier Request Quote Chat Now
Shandong Master Machinery Group CO,. Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Master Machinery
Place of Origin China
Model Number xy-180
Type Rotary Drilling Rig
Certification ISO-9001
After-sales Service Provided Engineers available to service machinery overseas
Warranty Six Months
Power Type Diesel
Usage Water Well
Condition New
Power(W) Diesel

1.The main charateristic of XY-180 water well drilling rig

a.The XY-180 drill is designed on the basis of the XY-150 drill. It is a low speed and high torque portable drilling machine with oil pressure.

b.This drill is suitable for engineering geological survey of railway, hydropower, traffic, bridge, dam foundation and other buildings.

c.Geological core drilling and physical investigation.

d.Drilling holes for small holes and blasting holes.

e.A small water well drilled.

2.The technical parameter of XY-180 drilling rig

Drilling depth（m）

180,150,120,90,70,30

Borehole diameter（mm）

75,91,110,130,150,300

Maximum opening diameter（mm）

375

drill pipe diameter（mm）

42、50

Spindle Speed (r/min)

71,142,310,620

SpindleStroke（mm）

450

Upgrading Ability (KN)

15

Diameter of steel wire（mm）

12

Type

gear pump

Model

YBC-12/80

Rated pressure (MPa)

8

Rated speed (r/m)

1500

Displacement（ml/r）

8

Power supply

ZS1115 diesel engine and 15kw motor


Product Tags: Water Well , Hydraulic , Drilling rig , Drilling Machine
