Home > Products > Ready to ship products > 1.8 degree 26mm length 4 wires 0.6A holding torque 14Ncm 2 phase hybrid NEMA 16 stepper motor shaft options single round D-cut
1.8 degree 26mm length 4 wires 0.6A holding torque 14Ncm 2 phase hybrid NEMA 16 stepper motor shaft options single round D-cut
USD $5.6 - $6
/ Piece
1 Piece(Min.Order)
- 1000 Piece / Pieces per Month
- T/T Credit Card
You May Like
-
1.8 degree 4 wire 3A 2 phase 76mm length 180N.cm Square high quality nema 23 stepper motor shaft options Single double round D-
-
1.8 degree 4 wire 2.5A 2 phase 51mm length 90N.cm Square high quality nema 23 stepper motor shaft options Single double D-cut
-
1.8 degree 4 wire 1.3A 2 phase shaft 64mm length 150N.cm Square nema 23 stepper motor shaft options Single double round D-cut
-
Nema 42 1.8degree 4 wire 6A 2 phase 150mm length 22N.cm holding torque key shaft square stepper motor
-
1.8 degree 34mm length 4 wires 1.2A holding torque 16Ncm 2 phase hybrid NEMA 16 stepper motor shaft options single double D-cut
-
1.8 degree 4 wire 3A 2 phase 56mm length 110N.cm Square cheap nema 23 stepper motor shaft options Single double round D-cut
Product Details
| Brand Name: | PrimoPal | Place of Origin: | Shanghai, China | Model Number: | PHB39Y Series |
| Type: | Hybrid | Phase: | 2 | Certification: | CE, ISO, ROHS, UL |
| Current / Phase: | Variable, can be custom |
Product Description

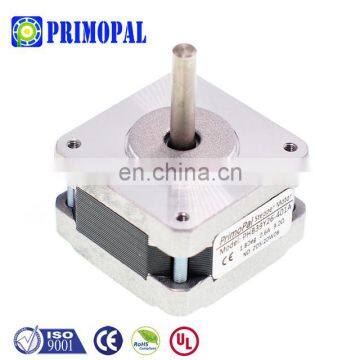

This stepper motor (MPN PHB39Y26-401) is supplied by one of the China's top stepper motor suppliers (PrimoPalMotor). It's a bipolar NEMA 16 hybrid stepper motor with 1.8° step angle (200 steps/revolution), made of high-quality cold rolled steel sheet and anti-high temperature permanent magnet. The rated current is 0.6A per phase, allowing for the holding torque of 14.0Ncm (19.8oz-in). This high-performance and high-reliability motor is terminated with 4 flying ended lead wires, and easily connected to the constant current or chopper drive controller.

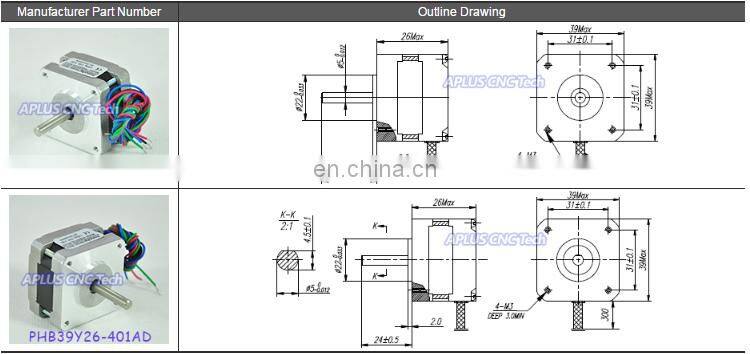

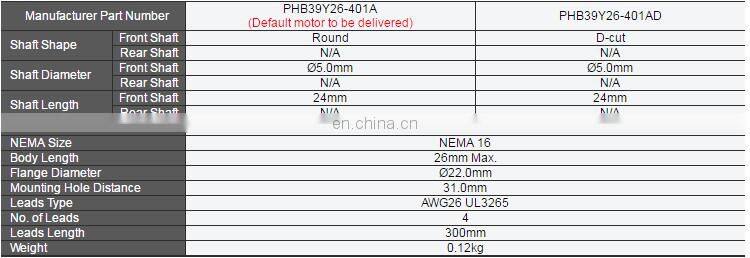

NOTE: 1.This stepper motor (MPN PHB39Y26-401) could be supplied to you with different mechanical specs of shaft, and the detailed info could be found in the following tables. When placing your order, PLEASE LEAVE A MESSAGE TO US with the exact part number you need. Once the ordered item is shipped out of our warehouse, any requirement of changing the item is NOT acceptable.
2.Custom design could be met by us. Please contact us for confirmation, if different electrical or mechanical specifications are needed.
