High Brightness 7 Inch Touch Monitor For Ev Kiosk

Touch Type

Capacitive

Interface

VGA+HDMI

View angle

80°/80°/80°/80°

Power Supply

DC 12V

Feature

Auto dimming

IP Grade

Front IP65

LCD panel

Panel size

7"

Resolution

1024*600

Aspect ratio

16:9

 Support Color

16.7M colors

Brightness (cd/m²)

1000 nits, sunlight readable

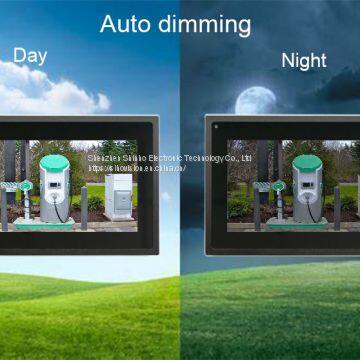

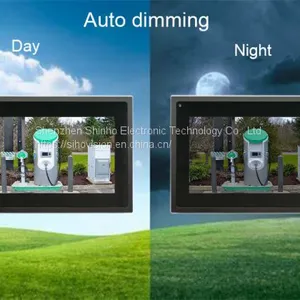

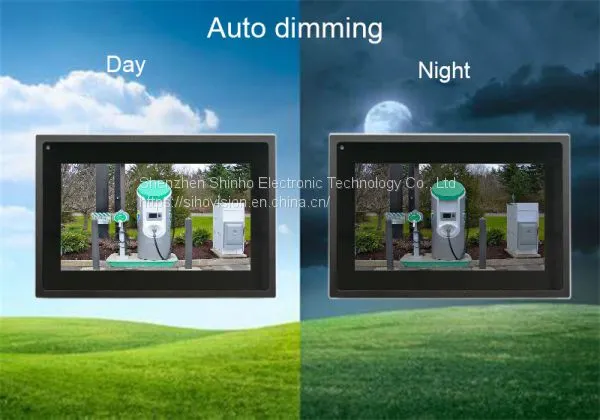

Dimming

light sensor, auto dimming

Contrast ratio

800:1

View angle

75°/75°/70°/75° (R/L/U/D)

Touch panel

Touchscreen Type

Project Capacitive Touch (10 points )

Surface Hardness

7H

Luminousness

90%

Touch Interface

USB

Touch response time

2ms

Working Life

>50 million times

Surface Treatment

Anti-glare

Touch options

(4 wires resistive touch,  IR  touch optional)

Singal Ports

VGA

1×VGA

HDMI

1×HDMI

DVI

optional

AV

optional

Audio in/out

optional

OSD

OSD control

Brightness, contrast ratio, auto adjustment, H/V position,  language select etc.

Support languages

English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.

Support OS

Windows XP , Windwows /7/8/10 ,  Linux,  Mac OS X,  Android   ect.

Power Supply

External Power Supply

AC 100 - 240V

Working voltage

DC 12V

Power consumption

≤10W

Enclosure

Appearance

Flat panel

Material

aluminium alloy bezel+High strength cold rolled steel back case

Color

Black, white, Silver , color can be customized

VESA mounting

75×75mm

IP Grade

front panel IP65 waterproof

Operating Environment

Temperature Range

operating: -20 to 70°C,  storage :-30 to 80°C

Relative humidity

operating: 10% to 90% ,  storage :5% to 90%

Packing Details

Net weight

1.85kg

Gross weight

2.5kg

Product Dimension

19.1×12.8×3.4 cm

Packing size

37×28×10 cm

Accessories

Power adapter, HDMI /VGAcable,  USB touch cable

Other

Mounting

Embedded screws

wall mounting brackets  (optional)

desk stand holder (optional)

Warranty

1 year warranty

Certificates

CE, FCC, RoHS
