SEAFLO Deep Well High Flow Submersible Automatic Solar Water Pump 2 Inch Diameter

SEAFLO Deep Well High Flow Submersible Automatic Solar Water Pump 2 Inch Diameter photo-1
SEAFLO Deep Well High Flow Submersible Automatic Solar Water Pump 2 Inch Diameter photo-2
SEAFLO Deep Well High Flow Submersible Automatic Solar Water Pump 2 Inch Diameter photo-3
SEAFLO Deep Well High Flow Submersible Automatic Solar Water Pump 2 Inch Diameter photo-4
SEAFLO Deep Well High Flow Submersible Automatic Solar Water Pump 2 Inch Diameter photo-5

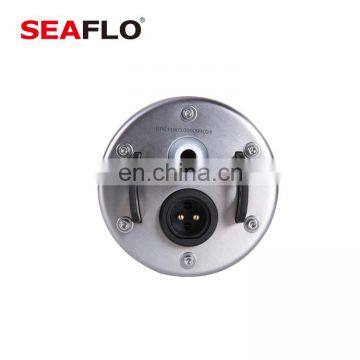

SEAFLO Deep Well High Flow Submersible Automatic Solar Water Pump 2 Inch Diameter photo-6
US$ 87.05 - 95.77 MOQ: 8 Pieces
Key Specifications
Get Latest Price
Brand Name:
SEAFLO
Place of Origin:
Fujian, China
Model Number:
SFBP2-G103-01
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name SEAFLO
Place of Origin Fujian, China
Model Number SFBP2-G103-01
SEAFLO Profile

SEAFLO Deep Well High Flow Submersible Automatic Solar Water Pump 2 Inch Diameter

Product Description
Features & Benefits



1.Up to 1.0GPM [3.8LPM] at 230ft [70m]
3.Designed for solar panels and battery
5.Run dry without damage
7.304 stainless steel prevent from leaking and anti aging

9.Accepts a variety of jacketed cables

2.Internal bypass for pump protection

4.Multi Viton O-rings sealing

6.Thermal protection at 239 °F [115° C]

8.Apply in livestock watering, irrigation, ponds, islands, remote homes and cabins



Product NameSEAFLO Deep Well High Flow Submersible Automatic Solar Water Pump 2 Inch Diameter
Pump Type3 Chambers Positive Displacement Diaphragm Pump
Max Flow Rate103 GPH [390 LPM]
Working Flow Rate1.0 GPM [3.8 LPM] at 230 ft [70 m]
Max Lift230' [70 m]
Max Diving100' [30 m]
Voltage24 VDC, and 12V, other voltage are available
Max Amp6.0 A
Fuse9.0 A
Switch TypeBy Pass
DiameterFit 4" or larger wells
Inlet Port50 mesh stainless steel filter
Outlet Port1/2" [12.7 mm] Barb
Diaphragm MaterialSantoprene
Valve MaterialViton or EPDM
Housing Material304 stainless steel for better sealing from leaking and anti aging
Thermal ProtectionYes
Max Fluid Temp140 °F [60 °C]
Lead6.7' [2 m] 16 AWG or OEM



The SEAFLO submersible solar deep well pump is a positive displacement diaphragm type 24VDC pump of high efficiency. The pump offers a solution to your remote water pumping needs. It’s rugged, durable and built to last. This pump delivers approximately 1.0 GPM (3.8 LPM) at 230 feet (70.1 meter) total lift. It incorporates a unique, water-blocked cable connector that is impervious to water leakage and condensation problems preventing water wicking. Typical applications are in livestock watering, irrigation, ponds, islands, remote homes and cabins.



Product Show

SEAFLO Deep Well High Flow Submersible Automatic Solar Water Pump 2 Inch Diameter

Dimensions

 SEAFLO Deep Well High Flow Submersible Automatic Solar Water Pump 2 Inch Diameter



Performance





Product Details

Lacking

STANDARD PUMP CONFIGURATIONS

ModelVoltage

Open Flow

GPH [LPH]

Max Draw

FuseMax LiftMax Diving
SFBP1-G103-0112 V103 [390]12.0 A18.0 A230 ft [70 m]100 ft [30 m]
SFBP2-G103-0124 V103 [390]6.0 A9.0 A230 ft [70 m]100 ft [30 m]



OEM/ODM service: Pls contact us for more open flow, max lift, max diving and material etc.



Application

Packaging & Shipping

Package Infomation

Unit Pump Weight8.15 lbs [3.70 kg]
Selling Unit Size (L x W x H)

12.72" x 5.70" x 5.31" [32.3 14.5 13.5 cm]

Selling Unit Weight9.48 lbs [4.3 kg]
Master Carton Qty4 pcs / carton
Master Carton Size (L x W x H)

13.42" x 12.60" x 12.00" [34.1 x 32.0 x 30.5 cm]

Master Carton Weight41.89 lbs [19.0 kg]



SEAFLO Deep Well High Flow Submersible Automatic Solar Water Pump 2 Inch Diameter

Company Information

SEAFLO Deep Well High Flow Submersible Automatic Solar Water Pump 2 Inch DiameterSEAFLO Deep Well High Flow Submersible Automatic Solar Water Pump 2 Inch DiameterSEAFLO Deep Well High Flow Submersible Automatic Solar Water Pump 2 Inch Diameter

More Products

SEAFLO Deep Well High Flow Submersible Automatic Solar Water Pump 2 Inch Diameter



SEAFLO Deep Well High Flow Submersible Automatic Solar Water Pump 2 Inch Diameter

FAQ

Q: What is your MOQ?
A: 100 pieces in general, but no MOQ requirement for sample testing.



Q: Do you accept OEM/ODM service?
A: Yes. We are also the OEM/ODM supplier for many famous companies, such as Volvo, Bunnings etc.



Q: How can I pay for my order?
A: Please send order details to us. We will issue an order on Alibaba Trade Assurance, and send you the payment link.



Q: What is your terms of payment?
A: Payment≤3000USD, 100% in advance. Payment≥3000USD, 30% T/T in advance, balance against the copy of B/L. If you have another questions, pls feel free to contact us.



Q: What is the delivery time?
A: It depends on the order quantity. It usually takes 15-25 days upon receipt of your 30% deposit by T/T. Sample can be delivered within 7 days.



Q: Can I buy different products in one container?
A: Yes, you can mix different models of pumps in one container.



Q: What is your warranty?
A: 1 year, and within 24 hours reply will be provided to solve customers' problems.



Q: What is your port of loading?
A: Xiamen port.



Q: Do you have oversea agents?
A: We dont have oversea agents for Agriculture and Industrial. But for SEAFLO pumps applied in Marine & RV, we have agents in USA, UK, Denmark, Spain, Australia, Turkey, Yemen, Lebanon etc.



Q: Can I get more info?
A: Please visit or www.seafloin.en.china.cn for more information.
