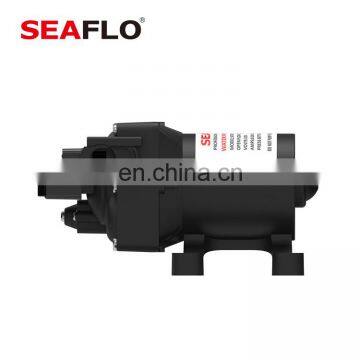

SEAFLO 3.0gpm 12 volt Self-priming Transfer Water Camping Pump
- 1000 Piece / Pieces per Month
- T/T Credit Card
- SEAFLO 12V 5.3LPM Solar Water Car Wash Pressure Pumps
- SEAFLO 3l min dc 24v High Pressure High Head RO Booster Pump
- SEAFLO 12V 120PSI 10 Inch water Diaphragm Car Wash Pump
- SEAFLO 12V DC 120PSI 8 Bar Low RPM Solar Power Ice Maker
- SEAFLO 12V 120PSI 100 gpm Battery Powered Solar Fuel Pump
- SEAFLO 12V 120PSI Mist Sprayer Electric Sprayers Water Drone
Product Details
Brand Name: | SEAFLO | Place of Origin: | Fujian, China | Model Number: | SFDP1-030-055-43 |
Structure: | Diaphragm Pump |
Packaging Details

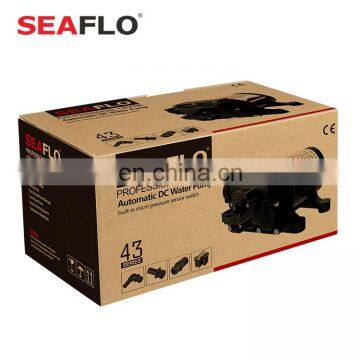

Each piece in a color box and 8 pieces into a master carton. Or each piece in a plastic bag and 8 pieces into a industrial package.
Product Description
Features & Benefits |
1.Flow rate up to 3.0 GPM [11.3 LPM] 3.Automatically turn on and off 5.Quiet operation 7.On demand use & by pass use | 2.Can run dry without damage 4.Self priming & built-in check valve 6.Chemically resistant materials 8.Designed for spraying and fluid transfer |
Product Name | SEAFLO 3.0gpm 12 volt Self-priming Transfer Water Camping Pump |
Pump Type | 4 Chambers Positive Displacement Diaphragm Pump |
Max Flow Rate | 3.0 GPM [11.3 LPM] |
Max Pressure | 55PSI [3.8 Bar] |
Voltage | 12 VDC, and 24V, 115V, 230V are available |
Max Amp | 7.5 A |
Fuse | 11.3 A |
Switch Type | On Demand [Cut-off Switch] & By Pass, and none switch is available |
Diaphragm Material | Santoprene |
Valve Material | Viton, and EPDM is available |
Duty Cycle | Intermittent |
Self Priming | 6' [1.8 m] suction |
Max Fluid Temp | 140 °F [60 °C] |
Inlet & Outlet Port | 3/4" [19 mm] Quick Connect, and contact us for more ports |
Lead | 13" [33 cm] 16 AWG lead |
The 43 Series pumps are designed for vessels requiring a smooth low flow, 12 or 24 volt DC pump at an attractive low price. These new pumps are internally grounded, four chamber diaphragm on-demand pumps with the performance characteristics to match the needs of a typical vessel with a shower, water heater and up to three faucets. It provides up to 3 gpm (11.3 lpm), all are fitted with a built-in pulsation dampening by-pass to control unwanted cycling and noise. We include quick-connect fittings for ease of pump installation. The new 43-series pumps provide exceptional flow and consistent water pressure to easily handle the demand of multiple outlets at one time. When onboard appliances are activated, the built in bypass design re-circulates back pressure into the pump to reduce cycling resulting in a quieter and smoother flow.
Product Show |
Dimensions |
Performance |
Motor Heat Rise |
Product Details |
Standard Pump Configurations
Model | Voltage | Open Flow GPM [LPM] | Cut off Pressure PSI [BAR] | Max Draw | Diaphragm | Valve |
SFDP1-030-055-43 | 12 V | 3.0 [11.3] | 55 [3.8] | 7.5 A | Santoprene | Viton |
SFDP2-030-055-43 | 24 V | 3.0 [11.3] | 55 [3.8] | 4.0 A | Santoprene | Viton |
OEM/ODM service: Cut off pressure can be adjusted from 17 PSI [1.17 Bar] to 60 PSI [4.1 Bar]; Open flow can be adjusted from 0.8 GPM [3.0 LPM] to 3.1 GPM [11.6 LPM]. Material can be adjusted according to your requirement.
Package Infomation
Unit Pump Weight | 4.35 lbs [1.97 kg] | |
Selling Unit Size (L x W x H) | 8.50" x 5.63" x 5.12" [26.4 x 14.3 x 13.0 cm] | |
Selling Unit Weight | 5.08 lbs [2.31 kg] | |
Master Carton Qty | 8 pcs / carton | |
Master Carton Size (L x W x H) | 23.62" x 10.83" x 11.50" [61.0 x 30.0 x 37.0 cm] | |
Master Carton Weight | 40.12 lbs [18.20 kg] |
More flow and pressure are available, please contact us to get catalog and price list.
Q: What is your MOQ?
A: 100 pieces in general, but no MOQ requirement for sample testing.
Q: Do you accept OEM/ODM service?
A: Yes. We are also the OEM/ODM supplier for many famous companies, such as Volvo, Bunnings etc.
Q: How can I pay for my order?
A: Please send order details to us. We will issue an order on Alibaba Trade Assurance, and send you the payment link.
Q: What is your terms of payment?
A: Payment≤3000USD, 100% in advance. Payment≥3000USD, 30% T/T in advance, balance against the copy of B/L. If you have another question, pls feel free to contact us.
Q: What is the delivery time?
A: It depends on the order quantity. It usually takes 15-25 days upon receipt of your 30% deposit by T/T. Sample can be delivered within 7 days.
Q: Can I buy different products in one container?
A: Yes, you can mix different models of pumps in one container.
Q: What is your warranty?
A: 1 year, and within 24 hours reply will be provided to solve customers' problems.
Q: What is your port of loading?
A: Xiamen port.
Q: Do you have oversea agents?
A: We dont have oversea agents for Agriculture and Industrial. But for SEAFLO pumps applied in Marine & RV, we have agents in USA, UK, Denmark, Spain, Australia, Turkey, Yemen, Lebanon etc.
Q: Can I get more info?
A: Please visit or www.seafloin.en.china.cn for more information.
Company Profile
SEAFLO specializes in the Research, Design, Manufacturing, Supply Chain Integration and Marketing of Marine, RV, Industrial, Agricultural & Water Sports parts and accessories since 2002. This includes the manufacturing of items used in water drainage system, ventilation systems, pressurized water systems, waste solutions, irrigation systems, kayaks, SUP, access hatches, portholes, and similar items used in yachts, RVs, agriculture, industrial and water sports applications.With 2 large manufacturing bases, we have established a powerful vertical integration of production chain, from design, proofing, part & mould processing, injection, installation to precision testing. SEAFLO main products are diaphragm pumps, bilge pumps, macerator pumps, gear pumps, hand pumps, blowers, switches, fuel tanks, sprayers, kayaks, sup, paddles, hatches, portholes and similar items, along with the precision molds. We have developed into a pump and blow molded factory with the most complete set of facilities and widest range of products in China. Meanwhile, equipped with a professional team responsible for the supply chain integration, we are able to provide a rich variety of the latest pumps and blow plastic products for the customers.SEAFLO currently employs more than 300 individuals, including 16 engineers. With the joint efforts of their technical staff members, the company has formed a semi-automated manufacturing process that encompasses all aspects of production, from the mold design to the manufacturing and testing of each unit. With 16 years of experience, we have grown into a pump and blow molded manufacturer with powerful R&D strength. They have obtained more than 30 national patents and have also received many international authentications including CE, RoHS, ISO 9001:2008.SEAFLO products have been exported to over 80 countries and regions globally through original equipment manufacturers, a network of established distributors, including SEAFLO's distribution center in Broadview Illinois, in USA. We have established long-term cooperation relationship with various brands worldwide, including Delavan, Remco, Osculati, Vetus, Dometic, etc.Listening to our customers with keenness and sincerity, grasping the demand on the market and working closely with our partners, we warmly welcome all customers to visit our factory!
