Home > Electrical & Electronics > Passive Components > Capacitor > 104K 275V/305V/310V Metallized Polypropylene Film X2 Capacitor

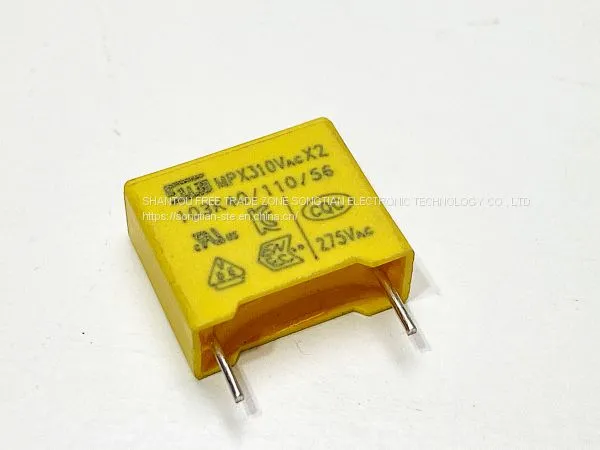

104K 275V/305V/310V Metallized Polypropylene Film X2 Capacitor
US$ 0.018 - 0.025
MOQ: 10000 Pieces
Key Specifications
Get Latest Price
Brand Name:
STE
Place of Origin:
China
Model Number:
X2 104K275VAC
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
15 days
Related Products
-
Zinc Metal Oxide Varistor (MOV) 20d102K High Voltage Power Surge ProtectorUS$ 0.084 - 0.194MOQ: 10000 Pieces -
Mf72 8d-7X Negative Temperature Coefficient Thermistor (NTC Thermistor)US$ 0.025 - 0.03MOQ: 10000 Pieces
-
Y Safety Standard Certified Ceramic Capacitors Y2-222mUS$ 0.04 - 0.06MOQ: 10000 Pieces
-
21SPC Vydyne Polyamide 66 Raw Material for Precision Electronic ComponentsUS$ 1.2 - 1.3MOQ: 1 Kilogram
-
RoHS REACH Compliant 304 Stainless Steel Coil 0.3mm-3mm For Electronic ComponentUS$ 1.65 - 2.85MOQ: 100 Kilograms
Brand Name
STE
Place of Origin
China
Model Number
X2 104K275VAC
Type
Polypropylene Film Capacitor
Application
Hight Voltage
Rated Voltage
0.001uF to 2.2uF
Operating Temperature
-40ºC~110ºC
Package Type
Through Hole
Capacitance
275vac/305vac/310vac
Feature
1,Wide capacitance range from 0.001uF to 2.2uF
2,Operating Temperature: -40ºC~110ºC
3,Storage Temperature: 15ºC~35ºC
4,Withstanding over-voltage stressing
5,Excellent active and passive flame resistant abilities (UL94V-0)ApplicationsWidely used in across-the-line,interference suprression circuit.ect.Applicable Standard
Widely used in across-the-line,interference suprression circuit.ect.
Feature1,Wide capacitance range from 0.001uF to 2.2uF
2,Operating Temperature: -40ºC~110ºC
3,Storage Temperature: 15ºC~35ºC
4,Withstanding over-voltage stressing
5,Excellent active and passive flame resistant abilities (UL94V-0)ApplicationsWidely used in across-the-line,interference suprression circuit.ect.Applicable Standard
Widely used in across-the-line,interference suprression circuit.ect.

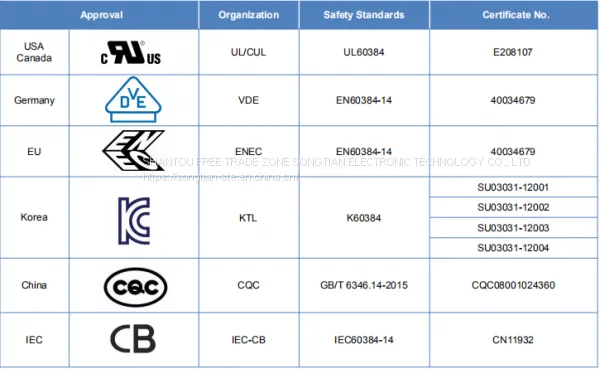

Applicable StandardSpecifications
| Climatic Category | 40/110/56 |
| Rated Voltage | 275VAC,305VAC,310VAC |
| Dissipation Factor(tanδ) | ≤0.1% |
| Withstand Voltage | Between terminals to case: 2UR+1500VAC Minimum of 2000VAC |
| Between terminals:4.3UR(DC)/5S | |
| Insulation Resistance (I.R.) | CR≤0.33μF,IR≥15000MΩ CR>0.33μF,IR≥6000S Note:T[s]=I.R.[MΩ]*CN [μF] 20ºC,100V,60S |

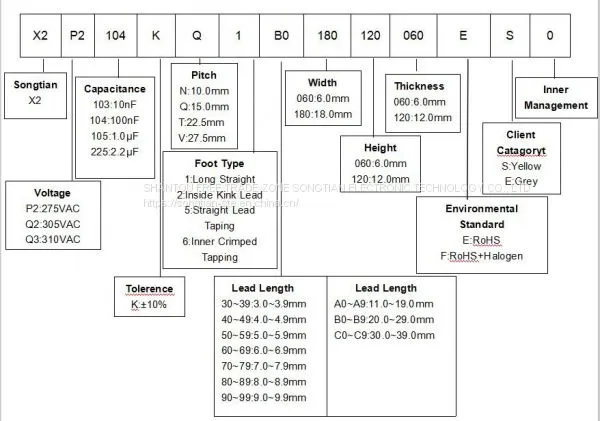

Part Number Code
Dimensions (mm) and Approval
|
Capacitance (uF) |
Rated Voltage | Size (mm) | ||||
| W±0.5 | H±0.5 | T±0.5 | P±1.0 | d±0.05 | ||
| 0.001 | 275VAC | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 |
| 305VAC | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | |
| 310VAC | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | |
| 0.0022 | 275VAC | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 |
| 305VAC | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | |
| 310VAC | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | |
| 0.0033 | 275VAC | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 |
| 305VAC | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | |
| 310VAC | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | |
| 0.0039 | 275VAC | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 |
| 305VAC | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | |
| 310VAC | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | |
| 0.0047 | 275VAC | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 |
| 305VAC | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | |
| 310VAC | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | |
| 0.01 | 275VAC | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 |
| 305VAC | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | |
| 310VAC | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | |
| 0.022 | 275VAC | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 |
| 305VAC | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | |
| 310VAC | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | |
| 0.033 | 275VAC | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 |
| 305VAC | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | |
| 310VAC | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | |
| 0.047 | 275VAC | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 |
| 305VAC | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | |
| 310VAC | 13.0 | 11.0 | 5.0 | 10.0 | 0.6 | |
| 0.068 | 275VAC | 13.0 | 12.0 | 6.0 | 10.0 | 0.6 |
| 305VAC | 13.0 | 12.0 | 6.0 | 10.0 | 0.6 | |
| 310VAC | 13.0 | 12.0 | 6.0 | 10.0 | 0.6 | |
| 0.082 | 275VAC | 13.0 | 12.0 | 6.0 | 10.0 | 0.6 |
| 305VAC | 13.0 | 12.0 | 6.0 | 10.0 | 0.6 | |
| 310VAC | 13.0 | 12.0 | 6.0 | 10.0 | 0.6 | |
| 0.1 | 275VAC | 13.0 | 12.0 | 6.0 | 10.0 | 0.6 |
| 305VAC | 13.0 | 12.0 | 6.0 | 10.0 | 0.6 | |
| 310VAC | 13.0 | 12.0 | 6.0 | 10.0 | 0.6 | |
| 0.15 | 275VAC | 13.0 | 12.0 | 6.0 | 10.0 | 0.6 |
| 0.22 | 275VAC | 13.0 | 15.0 | 8.0 | 10.0 | 0.6 |
| 0.033 | 275VAC | 18.0 | 11.0 | 5.0 | 15.0 | 0.8 |
| 305VAC | 18.0 | 11.0 | 5.0 | 15.0 | 0.8 | |
| 310VAC | 18.0 | 11.0 | 5.0 | 15.0 | 0.8 | |
| 0.047 | 275VAC | 18.0 | 11.0 | 5.0 | 15.0 | 0.8 |
| 305VAC | 18.0 | 11.0 | 5.0 | 15.0 | 0.8 | |
| 310VAC | 18.0 | 11.0 | 5.0 | 15.0 | 0.8 | |
| 0.068 | 275VAC | 18.0 | 11.0 | 5.0 | 15.0 | 0.8 |
| 305VAC | 18.0 | 11.0 | 5.0 | 15.0 | 0.8 | |
| 310VAC | 18.0 | 11.0 | 5.0 | 15.0 | 0.8 | |
| 0.082 | 275VAC | 18.0 | 12.0 | 6.0 | 15.0 | 0.8 |
| 305VAC | 18.0 | 12.0 | 6.0 | 15.0 | 0.8 | |
| 310VAC | 18.0 | 12.0 | 6.0 | 15.0 | 0.8 | |
| 0.1 | 275VAC | 18.0 | 12.0 | 6.0 | 15.0 | 0.8 |
| 305VAC | 18.0 | 12.0 | 6.0 | 15.0 | 0.8 | |
| 310VAC | 18.0 | 12.0 | 6.0 | 15.0 | 0.8 | |
| 0.15 | 275VAC | 18.0 | 12.0 | 6.0 | 15.0 | 0.8 |
| 305VAC | 18.0 | 12.0 | 6.0 | 15.0 | 0.8 | |
| 310VAC | 18.0 | 12.0 | 6.0 | 15.0 | 0.8 | |
| 0.22 | 275VAC | 18.0 | 14.5 | 8.5 | 15.0 | 0.8 |
| 305VAC | 18.0 | 14.5 | 8.5 | 15.0 | 0.8 | |
| 310VAC | 18.0 | 14.5 | 8.5 | 15.0 | 0.8 | |
| 0.33 | 275VAC | 18.0 | 14.5 | 8.5 | 15.0 | 0.8 |
| 305VAC | 18.0 | 16.0 | 10.0 | 15.0 | 0.8 | |
| 310VAC | 18.0 | 16.0 | 10.0 | 15.0 | 0.8 | |
| 0.47 | 275VAC | 18.0 | 16.0 | 10.0 | 15.0 | 0.8 |
| 305VAC | 18.0 | 16.0 | 10.0 | 15.0 | 0.8 | |
| 310VAC | 18.0 | 16.0 | 10.0 | 15.0 | 0.8 | |
| 0.56 | 275VAC | 18.0 | 16.0 | 10.0 | 15.0 | 0.8 |
| 305VAC | 18.0 | 16.0 | 10.0 | 15.0 | 0.8 | |
| 310VAC | 18.0 | 16.0 | 10.0 | 15.0 | 0.8 | |
| 0.68 | 275VAC | 18.0 | 19.0 | 11.0 | 15.0 | 0.8 |
| 305VAC | 18.0 | 19.0 | 11.0 | 15.0 | 0.8 | |
| 310VAC | 18.0 | 19.0 | 11.0 | 15.0 | 0.8 | |
| 0.22 | 275VAC | 26.5 | 16.5 | 7.0 | 22.5 | 0.8 |
| 305VAC | 26.5 | 16.5 | 7.0 | 22.5 | 0.8 | |
| 310VAC | 26.5 | 16.5 | 7.0 | 22.5 | 0.8 | |
| 0.27 | 275VAC | 26.5 | 16.5 | 7.0 | 22.5 | 0.8 |
| 305VAC | 26.5 | 16.5 | 7.0 | 22.5 | 0.8 | |
| 310VAC | 26.5 | 16.5 | 7.0 | 22.5 | 0.8 | |
| 0.33 | 275VAC | 26.5 | 17.0 | 8.5 | 22.5 | 0.8 |
| 305VAC | 26.5 | 17.0 | 8.5 | 22.5 | 0.8 | |
| 310VAC | 26.5 | 17.0 | 8.5 | 22.5 | 0.8 | |
| 0.47 | 275VAC | 26.5 | 19.0 | 10.0 | 22.5 | 0.8 |
| 305VAC | 26.5 | 19.0 | 10.0 | 22.5 | 0.8 | |
| 310VAC | 26.5 | 19.0 | 10.0 | 22.5 | 0.8 | |
| 0.56 | 275VAC | 26.5 | 19.0 | 10.0 | 22.5 | 0.8 |
| 305VAC | 26.5 | 19.0 | 10.0 | 22.5 | 0.8 | |
| 310VAC | 26.5 | 19.0 | 10.0 | 22.5 | 0.8 | |
| 0.68 | 275VAC | 26.5 | 17.0 | 8.5 | 22.5 | 0.8 |
| 305VAC | 26.5 | 17.0 | 8.5 | 22.5 | 0.8 | |
| 310VAC | 26.5 | 17.0 | 8.5 | 22.5 | 0.8 | |
| 0.82 | 275VAC | 26.5 | 19.0 | 10.0 | 22.5 | 0.8 |
| 305VAC | 26.5 | 19.0 | 10.0 | 22.5 | 0.8 | |
| 310VAC | 26.5 | 19.0 | 10.0 | 22.5 | 0.8 | |
| 1.0 | 275VAC | 26.5 | 17.0 | 8.5 | 22.5 | 0.8 |
| 305VAC | 26.5 | 20.0 | 11.0 | 22.5 | 0.8 | |
| 310VAC | 26.5 | 20.0 | 11.0 | 22.5 | 0.8 | |
| 1.2 | 275VAC | 26.5 | 19.0 | 10.0 | 22.5 | 0.8 |
| 305VAC | 26.5 | 22.0 | 12.5 | 22.5 | 0.8 | |
| 310VAC | 26.5 | 22.0 | 12.5 | 22.5 | 0.8 | |
| 1.5 | 275VAC | 26.5 | 20.0 | 11.0 | 22.5 | 0.8 |
| 305VAC | 26.5 | 22.0 | 12.5 | 22.5 | 0.8 | |
| 310VAC | 26.5 | 22.0 | 12.5 | 22.5 | 0.8 | |
| 0.68 | 275VAC | 32.0 | 20.0 | 11.0 | 27.5 | 0.8 |
| 305VAC | 32.0 | 20.0 | 11.0 | 27.5 | 0.8 | |
| 310VAC | 32.0 | 20.0 | 11.0 | 27.5 | 0.8 | |
| 0.82 | 275VAC | 32.0 | 20.0 | 11.0 | 27.5 | 0.8 |
| 305VAC | 32.0 | 20.0 | 11.0 | 27.5 | 0.8 | |
| 310VAC | 32.0 | 20.0 | 11.0 | 27.5 | 0.8 | |
| 1.0 | 275VAC | 32.0 | 20.0 | 11.0 | 27.5 | 0.8 |
| 305VAC | 32.0 | 20.0 | 11.0 | 27.5 | 0.8 | |
| 310VAC | 32.0 | 20.0 | 11.0 | 27.5 | 0.8 | |
| 1.2 | 275VAC | 32.0 | 20.0 | 11.0 | 27.5 | 0.8 |
| 305VAC | 32.0 | 20.0 | 11.0 | 27.5 | 0.8 | |
| 310VAC | 32.0 | 20.0 | 11.0 | 27.5 | 0.8 | |
| 1.5 | 275VAC | 32.0 | 22.0 | 13.0 | 27.5 | 0.8 |
| 305VAC | 32.0 | 22.0 | 13.0 | 27.5 | 0.8 | |
| 310VAC | 32.0 | 22.0 | 13.0 | 27.5 | 0.8 | |
| 2.0 | 275VAC | 32.0 | 22.0 | 13.0 | 27.5 | 0.8 |
| 305VAC | 32.0 | 25.0 | 14.0 | 27.5 | 0.8 | |
| 310VAC | 32.0 | 25.0 | 14.0 | 27.5 | 0.8 | |
| 2.2 | 275VAC | 32.0 | 22.0 | 13.0 | 27.5 | 0.8 |
| 305VAC | 32.0 | 25.0 | 14.0 | 27.5 | 0.8 | |
| 310VAC | 32.0 | 25.0 | 14.0 | 27.5 | 0.8 | |
Shippment
We can express by UPS/FEDEX/TNT/EMS/DHL
Packing
BULK:INNER BOX/OUTER CARTON
TAPING:INNER BOX/OUTER CARTON
