Home > Electrical & Electronics > Passive Components > Capacitor > Y Safety Standard Certified Ceramic Capacitors Y2-222m
Y Safety Standard Certified Ceramic Capacitors Y2-222m
US$ 0.04 - 0.06
MOQ: 10000 Pieces
Key Specifications
Get Latest Price
Brand Name:
STE
Place of Origin:
China
Model Number:
Y2-250VAC-222M
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
15 days
Related Products
-
104K 275V/305V/310V Metallized Polypropylene Film X2 CapacitorUS$ 0.018 - 0.025MOQ: 10000 Pieces -
Zinc Metal Oxide Varistor (MOV) 20d102K High Voltage Power Surge ProtectorUS$ 0.084 - 0.194MOQ: 10000 Pieces
-
Mf72 8d-7X Negative Temperature Coefficient Thermistor (NTC Thermistor)US$ 0.025 - 0.03MOQ: 10000 Pieces
-
Improve Lifespan on Marine Hardware With Our Verified Monel Alloy SheetsUS$ 28.5 - 66.8MOQ: 100 Kilograms
-
BASF PA6 Nylon Resin B3WG6 - UV-Stabilized for Construction HardwareUS$ 1 - 1.03MOQ: 1 Kilogram
Brand Name
STE
Place of Origin
China
Model Number
Y2-250VAC-222M
Type
Ceramic Capacitor
Application
Power
Rated Voltage
100pF to 10000pF
Operating Temperature
-40ºC~125ºC
Package Type
Through Hole
Capacitance
250vac /400vac
Feature
Wide operating voltage range from 100pF to 10000pF
Operating Temperature: -40ºC~125ºC
Storage Temperature: 15ºC~35ºC
Fix capacitors Y2 for electromagetic interference suppression and connection to the supply mains has high dielectric coefficient ceramic dielectric and flame retardant epoxy resin package
Applications
Can be used for power supply noise suppression circuit in cross connection and bypass.It is a primary and secondary coupling X/Y capacitor used as AC line filter and switching power supply and AC converter
Specifications
| Capacitance and Dissipation factor testing condition | 25ºC,1KHz,1Vrms |
| Dissipation Factor(tanδ) | ≤2.5% |
| Rated Voltage | 250VAC |
| Withstand Voltage | 2500VAC |
| Insulation Resistance (I.R.) | IR≥10000MΩ |
| Temperature Characteristic | Y5P,Y5U,Y5V |
Dimensions (mm) and Approval
| Part No. | Size (mm) | Approval | ||||||||
| D Max. | T Max. | F±0.8 | d±0.05 | CQC | VDE |
cUL (Canada) |
KTL | ENEC | ||
| Y2-Y5P-101K | 7.0 | 4.0 | 7.5 | 0.6 | √ | √ | √ | √ | √ | |
| Y2-Y5P-151K | 7.0 | 4.0 | 7.5 | 0.6 | √ | √ | √ | √ | √ | |
| Y2-Y5P-221K | 7.0 | 4.0 | 7.5 | 0.6 | √ | √ | √ | √ | √ | |
| Y2-Y5P-331K | 7.0 | 4.0 | 7.5 | 0.6 | √ | √ | √ | √ | √ | |
| Y2-Y5P-471K | 7.0 | 4.0 | 7.5 | 0.6 | √ | √ | √ | √ | √ | |
| Y2-Y5P-681K | 8.5 | 4.0 | 7.5 | 0.6 | √ | √ | √ | |||
| Y2-Y5U-681M | 7.0 | 4.0 | 7.5 | 0.6 | √ | √ | √ | |||
| Y2-Y5U-102M | 7.0 | 4.0 | 7.5 | 0.6 | √ | √ | √ | √ | √ | |
| Y2-Y5U-152M | 9.0 | 4.0 | 7.5 | 0.6 | √ | √ | √ | √ | √ | |
| Y2-Y5U-222M | 10.0 | 4.0 | 7.5 | 0.6 | √ | √ | √ | √ | √ | |
| Y2-Y5U-332M | 12.0 | 4.0 | 7.5 | 0.6 | √ | √ | √ | √ | √ | |
| Y2-Y5U-472M | 14.0 | 4.5 | 7.5 | 10.0 | 0.7 | √ | √ | √ | √ | √ |
| Y2-Y5U-103M | 18.0 | 4.5 | 7.5 | 10.0 | 0.7 | √ | √ | √ | √ | √ |
| Y2-Y5V-152M | 7.0 | 4.0 | 7.5 | 0.6 | √ | √ | √ | √ | √ | |
| Y2-Y5V-222M | 8.0 | 4.0 | 7.5 | 0.6 | √ | √ | √ | √ | √ | |
| Y2-Y5V-332M | 9.0 | 4.0 | 7.5 | 0.6 | √ | √ | √ | ||
Shippment
We can express by UPS/FEDEX/TNT/EMS/DHL
Packing
BULK:INNER BOX/OUTER CARTON

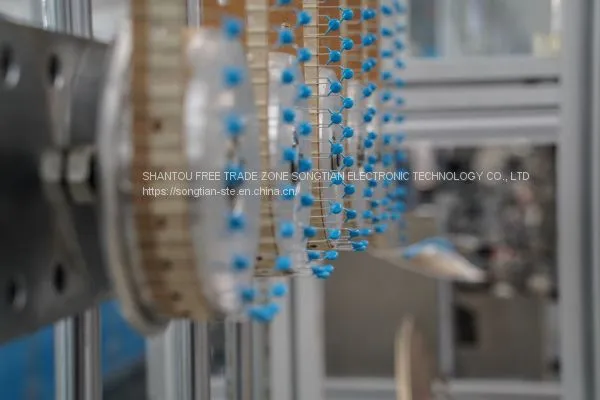

TAPING:INNER BOX/OUTER CARTON
