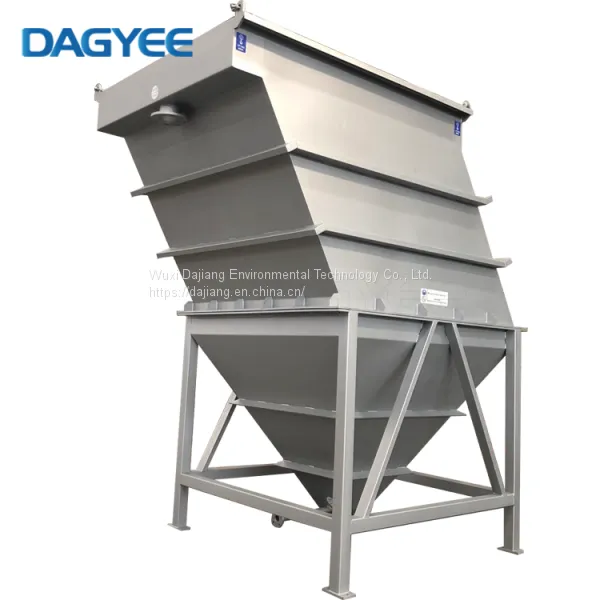

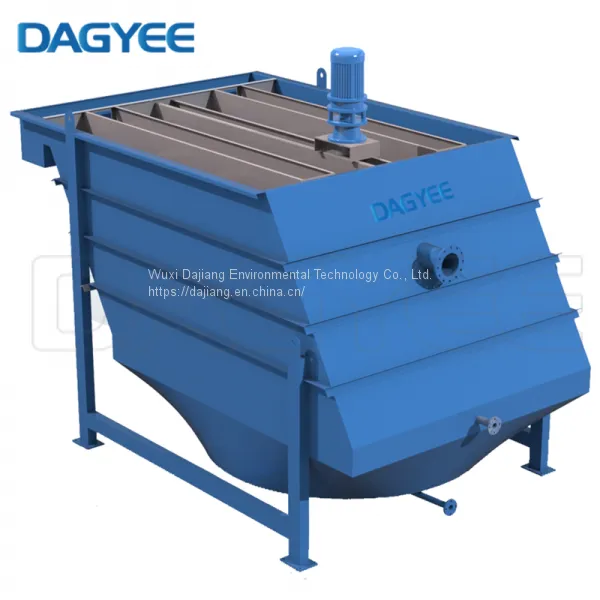

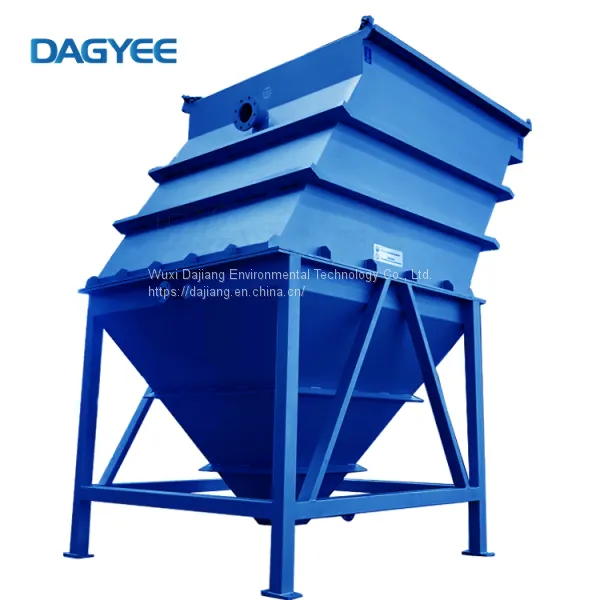

Inclined Plate Sedimentation Tank Lamella Clarifier For Industrial Sewage Water Treatment
US$ 9500 - 15000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
DAGYEE
Place of Origin:
China
Model Number:
DLC-020
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
20 days
Related Products
-
Lamella Separator Slant Plate Clarifier Klarifikasi Lamella for Secondary Wastewater Treatment PlantsUS$ 9500 - 15000MOQ: 1 Set -
Lamella Clarifier SUS304 60 M3 For River Water SedimentationUS$ 9500 - 15000MOQ: 1 Set
-
Lamella Clarifier SUS304 60 M3 For River Water SedimentationUS$ 9500 - 15000MOQ: 1 Set
-
Lamella Separator Slant Plate Clarifier for Secondary Wastewater Treatment PlantsUS$ 9500 - 15000MOQ: 1 Set
-
Lamella Separator Slant Plate Clarifier for Secondary Wastewater Treatment PlantsUS$ 9500 - 15000MOQ: 1 Set
Brand Name
DAGYEE
Place of Origin
China
Model Number
DLC-020

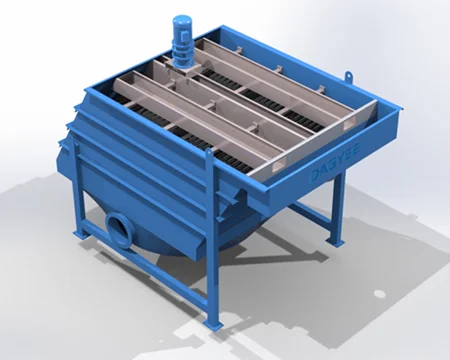

WHAT IS LAMELLA CLARIFIER
|
Dagyee Lamella clarifier is an efficient combined sedimentation tank, According to the shallow theory designed;Many dense inclined plates are set in the subsidence area to allow suspended solid in the wastewater to settling on the inclined plate. Water rises and flows upon the inclined plate .The separated sludge slides down the inclined plate to the bottom of the tank under the effect of gravity. Sludge can be discharged in a collector, which can increased capacity by 3 to 5 times on the same area. According to the test data of raw wastewater, different flow rate precipitators can be chosen. |

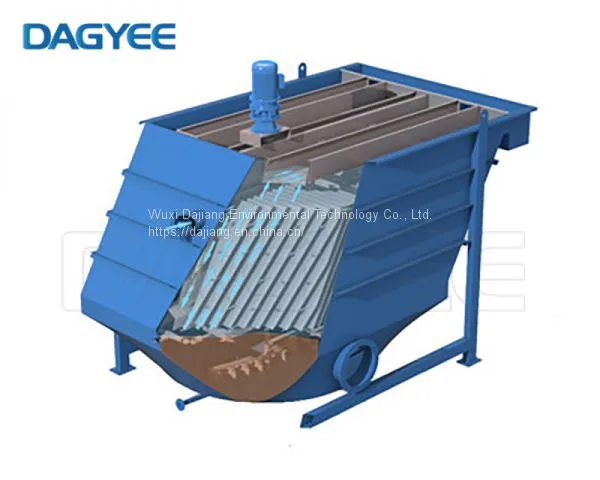

HOW DOES LAMELLA CLARIFIER WORK
|
When using, you can choose to add coagulant. The method is to install inclined plate component with an inclination angle of 60 degrees above the suspended layer of sludge. Suspended solids in the raw water, solids or floc alum flowers formed by adding a coagulant are added to the surface area of the inclined plate Accumulate into a thin mud layer, rely on gravity to slide back to the suspended sludge layer, and then sink into the mud hopper. The sewage pipe is discharged into the sludge tank for further treatment or comprehensive utilization. The supernatant gradually rises to the drain of the water collection , which can be directly discharged or reused. |
RANGE OF APPLICATION
|
Mining
Leachate clarification
|
|
ADVANTAGES
|
Smaller footprint
Large effective settling area
Improved overflow rates 2 to 4 times
Long time to be use
Normal use without clogging
Even clogging is provided with backwash device Less possibility for injury |
AVAILABLE DESIGNS
|
Inclined plate length 1–2 m
|
LAMELLA CLARIFIER EQUIPMENT SPECIFICATIONS

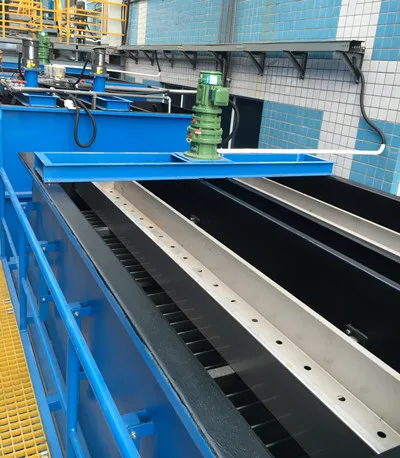

FACTORY TOUR
