Long shaft deep well Pump
Product introduction:

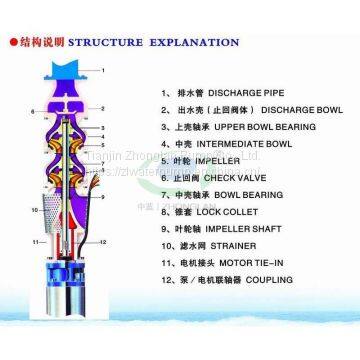

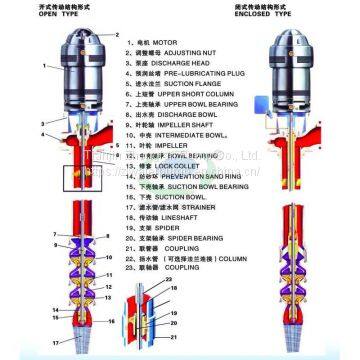

LJC series deep well pumps are new generation and energy-saving equipment for lifting water. They are with advanced structure, for they adopting the core produced with the resin sand and the impeller & diffuser adopting the new technique that topcoated with epoxy, advanced hydraulic model, excellent performance curve without hump and wide high efficiency range. The efficiency is 4-8% higher than that of JC or JD type deep well pumps in average, for they use whirl sand device and the maze-like structure which makes sand not able to enter the Bearings.shaft checked by flame method to ensure it's in line.it's a new generation pump design.
Performance parameters:
Flow: ≤5000m3/h
Water head range:s350m
Motor Power : 5.5-1600kW
Rated voltage:380V，6kV．10kV
Well diameter: 100-950mm
Max. discharge diameter:650mm
Use range:

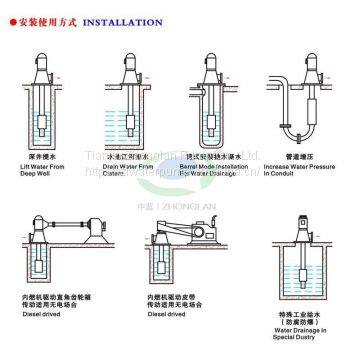

LJC series Zhonglan deep well pumps are applied to lift normal temperature clean water without erosive for water power plant(in an overhaul and leakage), power plant (when reduce the temperature in the recycle, and for domestic service), steel works (for scale pit), fire-fighting, urban water supply by water plant and agriculture irrigation.
If you want to know more related products, please click here.
/
