Help CenterYingxun Yx-007-f8 Conference Room Version Recording Jammer, for 8 and Below Conference Rooms, Direct Selling by the Manufacturer
Related Products
-
Manufacturer of Recording Shield, Anti Recording Jammer, Yx-007-n Concealed Recording Shield and Audio ShieldUS$ 5030 - 5072MOQ: 1 Set -
Manufacturer of Recording Shield, Anti Recording Jammer, Yx-007-n Recording Shield and Audio ShieldUS$ 5030 - 5072MOQ: 1 Set
-
Yingxun YX-007-BT Mobile Phone Information Security Protection BoxUS$ 430 - 432MOQ: 1 Piece
-
YX-007-ZM Desktop Type Recording ShieldUS$ 1950 - 2000MOQ: 1 Piece
-
Recording Jammer, Minimum Volume Recording Shielder, Handheld Recording Shielder YX-007mini-1US$ 596 - 681MOQ: 5 Boxes
Yx-007-fx distributed recording shielding system is a set of small meeting recording shielding system developed by our company according to the needs of users. It is applied to one-to-one or one to many recording and shielding conversation scenes. The system is composed of one main screen, X extenders, power adapter and remote controller. The extender and the main machine are connected through a special line to realize multi angle and multi-directional shielding.

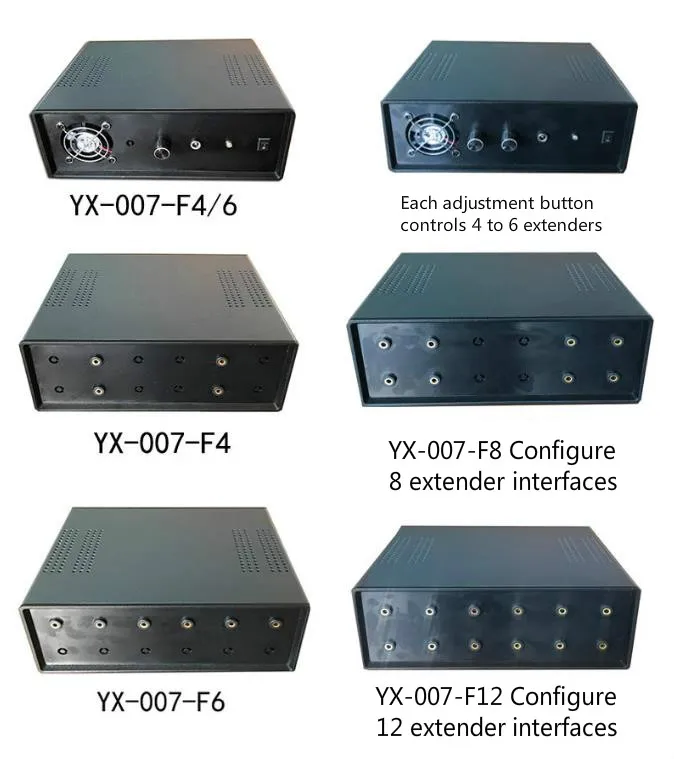

The host is equipped with power indicator, power switch, power adjustment knob, cooling fan, and X expander interfaces (yx-007-fx, x = 4 / 6 / 8 / 12) on the back of the host.

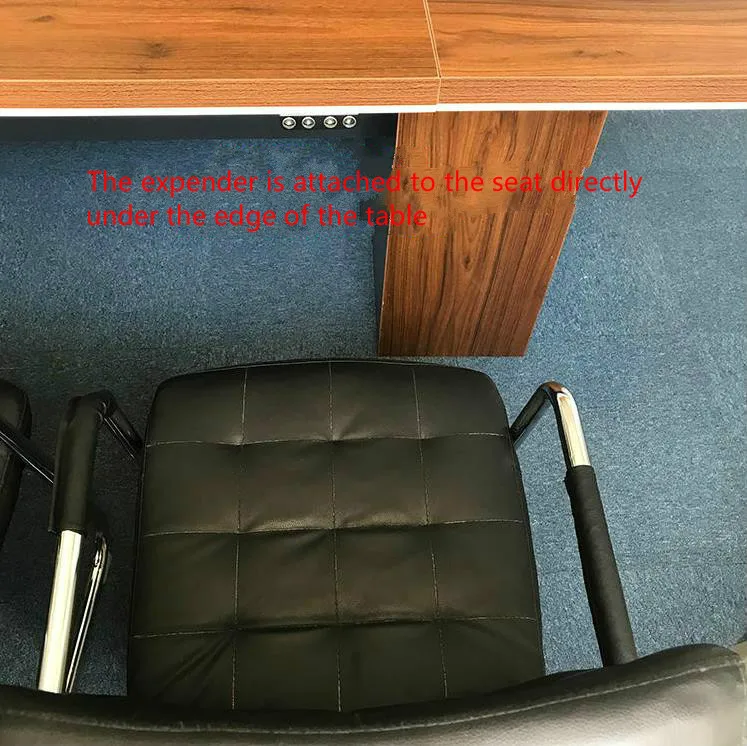

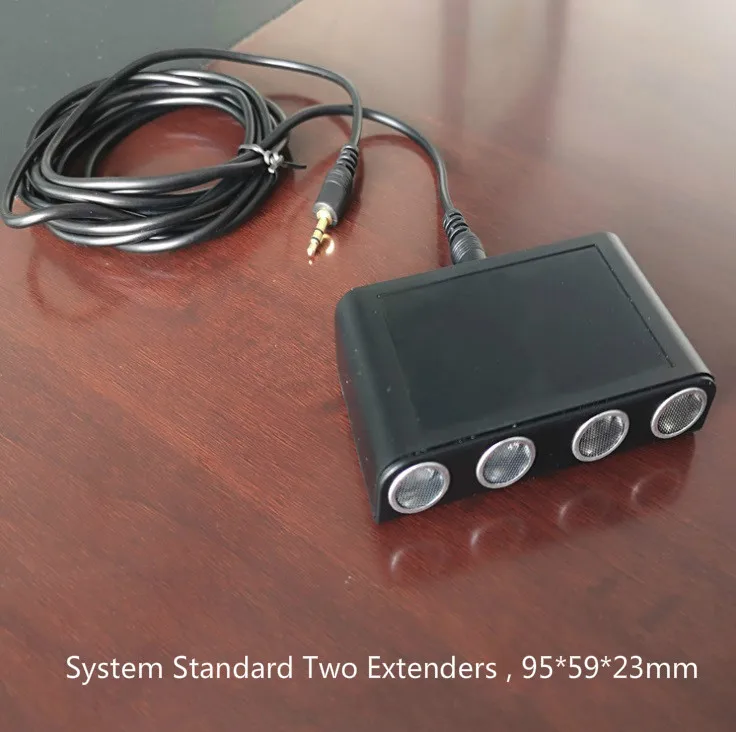

Expander: the expander adopts injection molding shell, with four metal signal transmitting terminals embedded in the front and special wire jack at the back. Its size is 95 * 59 * 23mm, small and easy to install and camouflage. When working, the signal transmitting terminal is aimed at the illegal recorder, and placed on the desktop or stuck on the lower edge of the desktop facing the illegal recorder's seat (in principle, the closer the illegal recorder is, the better the effect).
System features:
1. The system adopts distributed design. The host and the extender are connected by special line. The extender can be flexibly installed and configured according to the recording shielding scene, increasing the shielding angle and distance.
2. Good heat dissipation design ensures that the system can work stably for a long time.
3. The system is equipped with stepless power adjustment knob, so that the user can adjust the transmission power according to the scene.
4. The system is equipped with remote control, which is convenient for users to open and close remotely.
5. All connections of the system adopt error free direct plug-in design, convenient operation!
During the test, it is necessary to simulate the real use environment, communicate with the normal volume, and do not need to increase the volume deliberately. This product takes into account its own noise and the actual shielding distance, and adopts a more appropriate software version. If there are special needs, we can ask for a special version of the software!
project |
performance parameter |
Shielding type |
Voice collection equipment such as mobile phone and recording pen |
Shielding distance of single expander |
1-2Meters (different recording devices have differences) |
Action angle of single expander |
90-120degree |
Remote control distance |
More than 10 meters |
Host size |
220*195*80mm |
Expander |
95*59*23mm |
Host weight |
1.3KG |
Extender weight |
50g |
ambient temperature |
-40C ~ 55 C |
relative humidity |
35~ 85% |
Power consumption |
150W |
Power input |
AC 160V~240V |
Power output |
DC 12V/12.5A |
Shell material |
Metal alloy |
Packing instructions |
PP protective box |
Safety precautions
Please read the following safety precautions carefully before use: in case of the following situations, please turn off the equipment immediately and pull out the power supply configurator from the power socket.
1. Power failure or voltage instability
2. There is abnormal sound inside the equipment, the latter smell
3. Power supply equipment is damaged
4. The equipment is damaged due to falling, knocking and impact
5. Any liquid or other foreign matter transferred into the casing
