YX-007-FX (X=4/6/8/12) Distributed Recording Shielding System

YX-007-FX Distributed Recording Shielding System is  a set of small talks recording shielding system developed by our company  according to the needs of users. Applied to one-to-one or one-to-many recording  and shielding conversation scenes, the system consists of a shielder host, X  extenders, power adapters, remote controllers, and between the extender and the  host through a dedicated line connection to achieve multi-angle and  multi-direction shielding.

host:

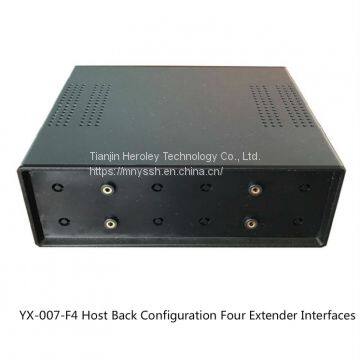

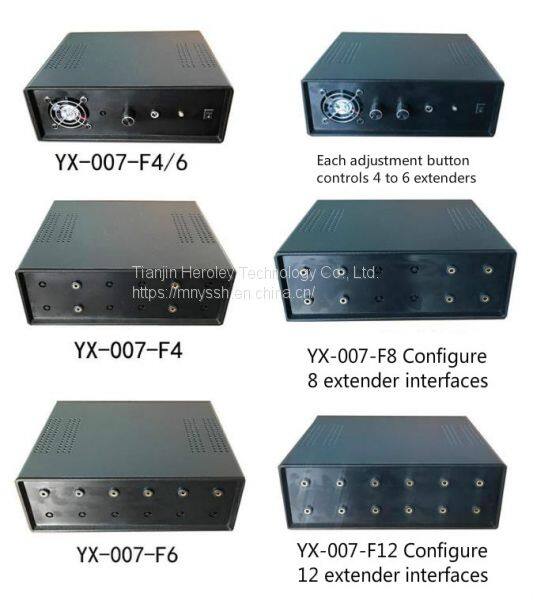

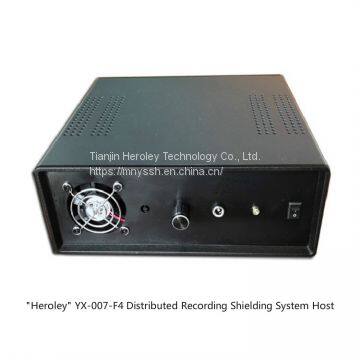

The  host is equipped with power indicator lamp,  power switch, power adjustment knob, heat dissipation fan, X expander interface  (YX-007-FX, X=4/6/8/12) on the back of the host.

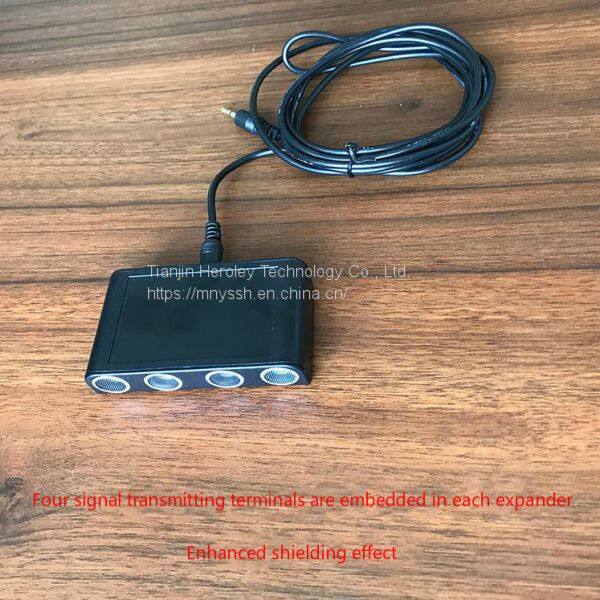

Expander: The expander uses an injection-moulded  shell with four metal signal transmitter terminals embedded in front and a  special line jack in the back. Its size is 95*59*23mm. It is compact and easy to  install and camouflage. When working, the signal transmitter terminal is aimed  at the illegal recorder and placed on the desktop or under the desktop opposite  to the illegal recorder seat (the closer the illegal recorder is, the better).  The shielding distance of a single expander is 1-2 meters (different recording  devices are different). The length of the expander and the host label wiring is  3 meters, which can fully meet the needs of general scenes. When the system  works, the host can be placed arbitrarily when the online length permits.

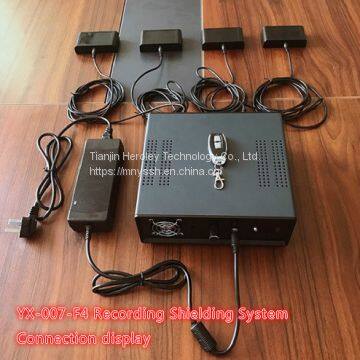

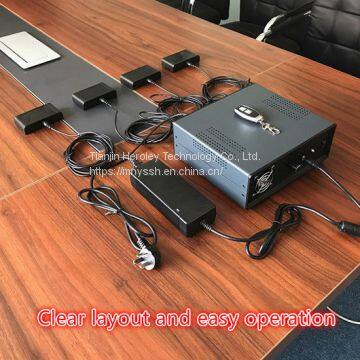

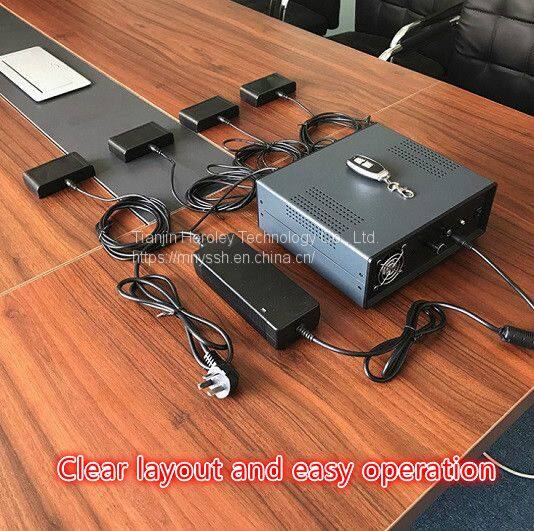

System Overall Display :

YX-007-FX ( X = 4, X = 6 or 8 or 12, the number of  extenders varies)

System characteristics:

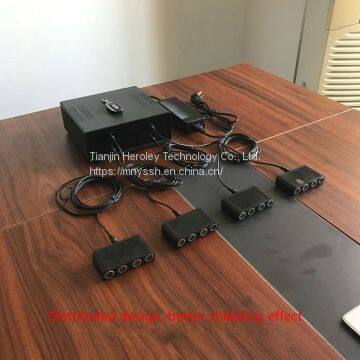

1. The system adopts  distributed design. The host and the expander are connected by a dedicated line.  The expander can be installed and configured flexibly according to the recording  shielding scene, which enlarges the shielding angle and distance.

2. Good  heat dissipation design ensures that the system can work stably for a long  time.

3. The system is equipped with a power stepless adjusting knob, so  that users can adjust the transmission power according to the scene.

4.  The system is equipped with remote control, which makes it convenient for users  to open and close remotely.

5. All connections of the system adopt  error-free direct plug-in design, easy to operate!

technical parameter

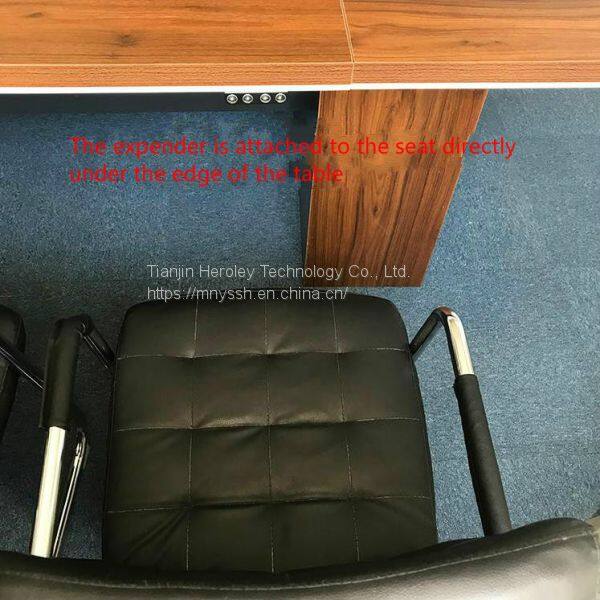

Expander physical installation drawings:

YX-007-FX (X=4/6/8/12) Recording Shielding System  Configuration Comparison Table
