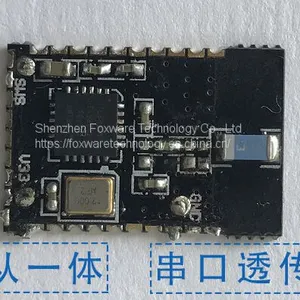

The FW-BT4.0 Bluetooth Module adopts the TLSR8261F128ET24 chip and is configured with 128KB flash. Users can change the serial port baud rate, device name, pairing password and other parameters as needed, which is flexible.
Supply Voltage: DC1.9---3.6V
One-way UART Interface
One-way Mode Output IO Port
One-way LED Indicator Interface
Receiving Sensitivity: -92dBm
Maximum Transmit Power: +7dB
Built-in 32-bit High-speed MCU
Working Frequency up to 48MHz
On-chip SRAM: 16KB
On-chip FLASH Program Space：128KB
Receive-Mode Current：12mA
Transmit-Mode Current：15mA
Communication Distance: >10M
Pause Mode (IO Port Wakeup)：10uA
Pause Mode (Timer Wakeup)：12uA
Deep-sleep Mode: 1.7uA
Operating Temperature: -40---+85℃
Application Area
Industrial Remote Control, Telemetry
Smart Home, Industrial Control
Portable Battery-powered Medical Instruments
Vehicle Testing Equipment
Automated Data Acquisition
Bluetooth Remote Control Toy, Model Airplane, GamePad
Bluetooth Printer
POS System
