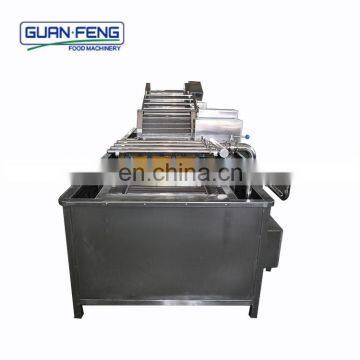

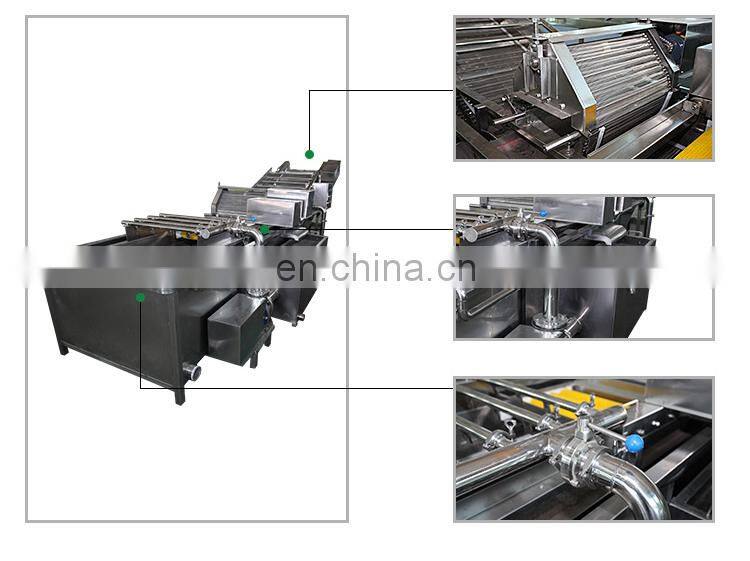

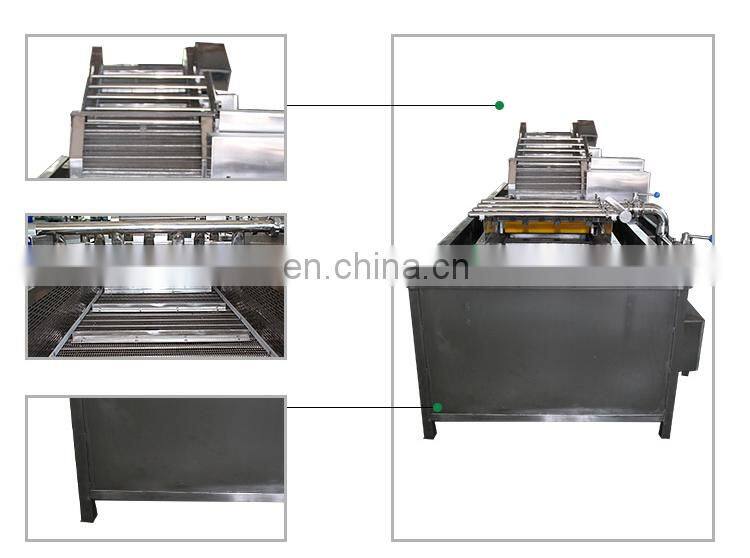

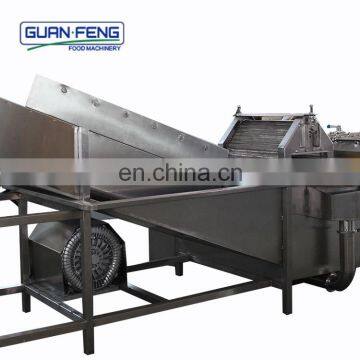

Wholesale multifunctional automatic ridge type chicken cleaning machine for sale

Name: Wholesale multifunctional automatic ridge type chicken cleaning machine for sale
Brand: Guanfeng
Availability: InStock
Rating: 4.6 (33 reviews)

FOB Price

USD $8,000 - $8,800 / Set

1 Set(Min.Order)

Supply Ability 500 Set / Sets per Month
Port SHANGHAI OR NINGBO PORT
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	Guanfeng	Place of Origin:	Zhejiang, China
Certification:	CE	Dimension(LWH):	435516101630mm
Condition:	New	Power(W):	7.1kw
Cleaning Type:	Clean-In-Place (CIP)	Cleaning Process:	Cold Water Cleaning

Packaging Details

WOODEN CASE">stainless steel steam jacketed kettle
WOODEN CASE

Product Description

Click Here to HOME >>> Product Categories >>>

Item Name	Wholesale multifunctional automatic ridge type chicken cleaning machine for sale
Overall dimension	435516101630mm
Product model	GQX-M-53
Installation power	7.1kw
Voltage	380V/50HZ
Water consumption	0.3~0.5T/h(cycling use of water)
Steam consumption	none
Cold consumption	none
Processing capacity	1~2T/h

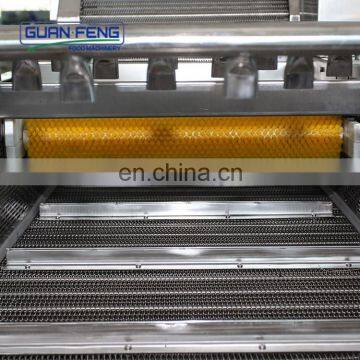

Feeding form	the width of net belt chain is 532mm;work in constant speed; With scouring device, egg removing device, hair removing device, ejecting device, bubbling device, spray device, filtrate water circulation device;
Electrical control	electrical component adopt CHINT Zhejiang
Material specification	SUS304 stainless steel except motor, electrical appliances and other standard parts

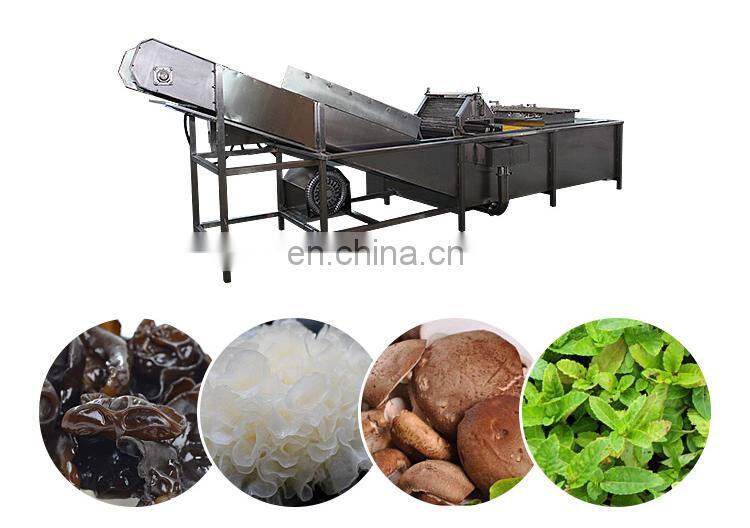

Application of equipment	washing for vegetables, fruit, aquatic products and herb, especially for fungus

1. Material of equipment:

The equipment is made of stainless steel:40*40*2/3mm Square tube,Protecting plate and Punching uniform wind plate 2mm,Liner Panel1.5mm,guide rail 5# angle iron; frame 80*40*2.5mm square tube,40*40*2mm square tube,Outer plate 2.0 Stainless plate(Screw fixation); Equipment ventilation part of the fan is made of carbon steel, the other including the wind pipe is made of stainless steel; heat insulating material:40~60mm Pure aluminum silicate(The surface temperature of the equipment is less than 40 degrees.);Equipment mesh belt is a stainless steel chain plate + punching plate structure.

2. Installed motor:

Heating fan 8sets,power 7.5KW/set; Mesh belt drive motor:P=1.5KW(frequency control) Cleaning brush motor:P=1.5KW(2 sets,frequency control)

3. Device color:

Materials used in the equipment are drawn stainless steel, and the appearance is beautiful.

4. Device heating:

8 temperature measuring points and temperature control points are set up, and the steam heat exchanger is used for heating,each evaporation area is 100mSH0.7x;2^; air inlet dimension is 1*1m, steam inlet is DN50,water outlet is DN40.The heating temperature is normal temperature to 150 degrees; Equipment each motor and control is equipped with a total electric control box(The electric control and equipment are installed separately to prevent the box temperature is too high.

5. Transport :

For transport considerations, both sides of the ventilation duct can be demolished, and the heat transfer and the wind turbine, the wind pipe can be demolished.

6. Quantity :

1 set,In order to facilitate the split, the installation of bolt connection.

7. Our Services :

Pre-Sales Service : (1)Inquiry and consulting support. (2)Working flow layout of equipment. (3) Plant layout of equipment. (4) Layout drawing fro related pipe lines. (5) Sample testing support. (6)View our Factory.

After-Sales Service : (1)Packing for equipment and domestic transportation. (2)Engineers available to service machinery overseas. (3)Equipment installation and commissioning. (4)Training for operation personnel. (5)Operation manual of equipment. (6)Others

8. How to contant :

You can contant us through the e-mail,telephone,whatsapp...
