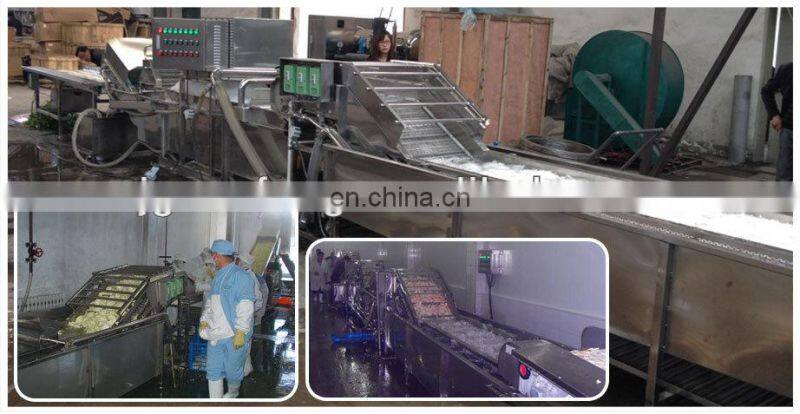

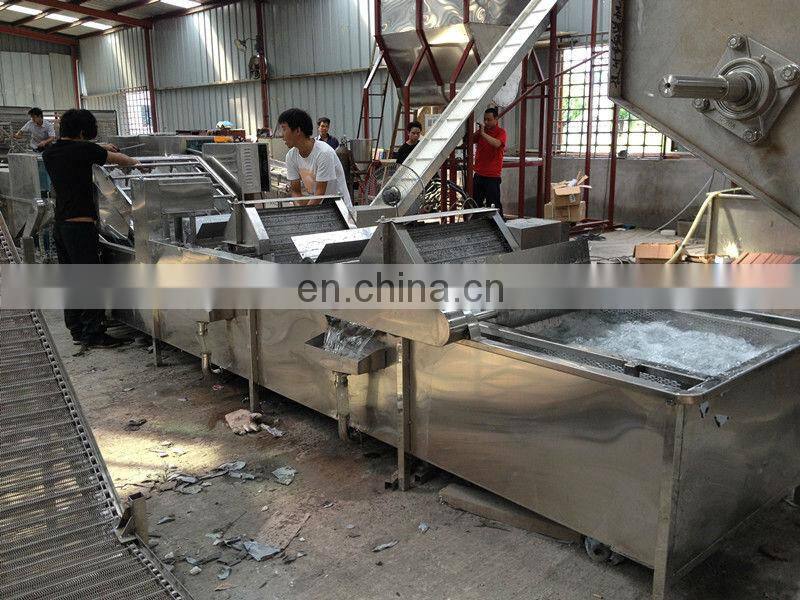

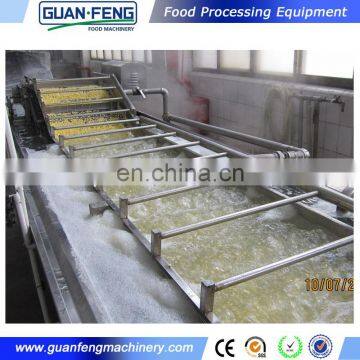

Wholesale Vegetable and Fruit Washing Machinary Bubble Vegetable Washer Machine

   1.  Material of equipment:

    The equipment is made of stainless steel:40*40*2/3mm Square tube,Protecting plate and Punching uniform wind plate 2mm,Liner Panel1.5mm,guide rail 5# angle iron; frame 80*40*2.5mm square tube,40*40*2mm square tube,Outer plate 2.0 Stainless plate(Screw fixation); Equipment ventilation part of the fan is made of carbon steel, the other including the wind pipe is made of stainless steel; heat insulating material:40~60mm Pure aluminum silicate(The surface temperature of the equipment is less than 40 degrees.);Equipment mesh belt is a stainless steel chain plate + punching plate structure.

    2. Installed motor:

    Heating fan 8sets,power 7.5KW/set; Mesh belt drive motor:P=1.5KW(frequency control) Cleaning brush motor:P=1.5KW(2 sets,frequency control)

    3. Device color:

    Materials used in the equipment are drawn stainless steel, and the appearance is beautiful.

    4. Device heating:

    8 temperature measuring points and temperature control points are set up, and the steam heat exchanger is used for heating,each evaporation area is 100mSH0.7x;2^; air inlet dimension is 1*1m, steam inlet is DN50,water outlet is DN40.The heating temperature is normal temperature to 150 degrees; Equipment each motor and control is equipped with a total electric control box(The electric control and equipment are installed separately to prevent the box temperature is too high.

    5. Transport :

    For transport considerations, both sides of the ventilation duct can be demolished, and the heat transfer and the wind turbine, the wind pipe can be demolished.

    6. Quantity :

    1 set,In order to facilitate the split, the installation of bolt connection.

    7. Our Services :

    Pre-Sales Service : (1)Inquiry and consulting support. (2)Working flow layout of equipment. (3) Plant layout of equipment. (4) Layout drawing fro related pipe lines. (5) Sample testing support. (6)View our Factory.

    After-Sales Service : (1)Packing for equipment and domestic transportation. (2)Engineers available to service machinery overseas. (3)Equipment installation and commissioning. (4)Training for operation personnel. (5)Operation manual of equipment. (6)Others

    8. How to contant :

    You can contant us through the e-mail,telephone,whatsapp...
