Wire And Cable Machinery Single Core 1mm2-16mm2 Cable Manufacturing Machine
Single core 1mm2-16mm2 cable manufacturing machine for power cable ,building cable
Process of single core cable (solid copper ) 1mm2-16mm2
1.8mm copper bar -- wire drawing to suitable size ( RBD wire drawing machine )
2. 80+35 extrusion machine ---- insulation
1. 8mm copper bar -- wire drawing to suitable size (RBD wire drawing machine)
| No. | Name | Qty./Unit | Note |
| 1 | Pay off Stand | 1set | |
| 2 | DL400-13 Drawing Machine | 1set | |
| 3 | TH5000 Annealer | 1set | |
| 4 | YG400 Joy Tension Rod | 1set | |
| 5 | SN630-2 Take up | 1set | |
| 6 | Operation Panel | 1set | |
| 7 | Electrical Control System | 1set | |
| 8 | Pointing Machine | 1set | |
| 9 | Welding Machine | 1 set |

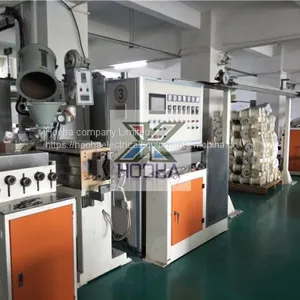

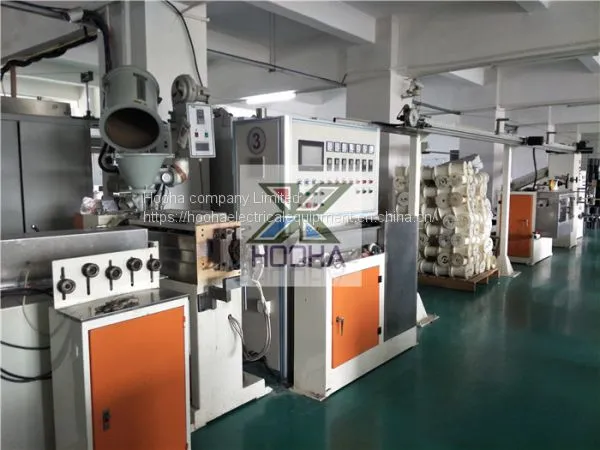

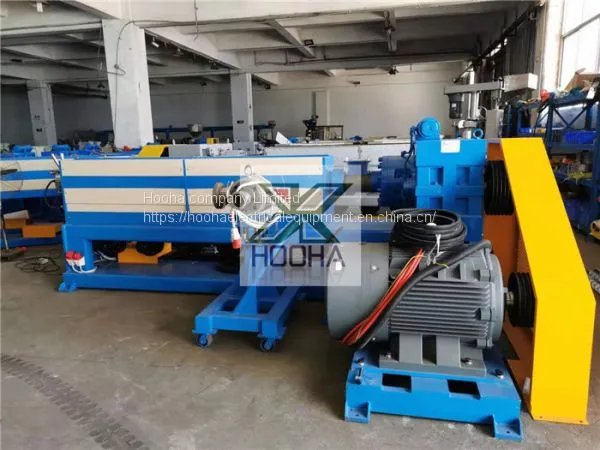

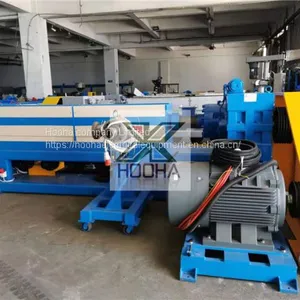

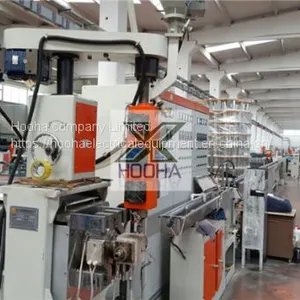

2. 80+35 extrusion machine
Machine technical feature
1.Concentricity: 93-97% OD tolerance: Solid +/-0.005
2.Wire specification: Φ1.5mm-12mm
3.The highest output: 140KG/hr The highest wire speed: 400M/MIN
4.Body temperature will be controlled within ±1ºC
5.Extrusion material: PVC, SR-PVC, PE, PP, PU etc.
6.Screw parameters:L/D ratio:26;1,compression ratio:2.7-3.2,screw material:
38CrMoAIA,vacuum heating treatment,surface grinding polishing chromium plating.
Machine parts
| No. | Parts name&Specs. | Qty |
| 1 | ø500-630mm motorized pay off stand | 1set |
| 2 | dancer | 1set |
| 3 | 80+35 mm extruder | 1set |
| 4 | PLC SIEMENS Electrical control cabinet | 1set |
| 5 | Hopper dryer feeding machine | 1set |
| 6 | 1.5M movable cooling water tank | 1set |
| 7 | Laser diameter tester (Eectrl) | 1set |
| 8 | 7.5M single layer cooling water tank | 1set |
| 9 | 10M high precision horizontal wire accumulator | 1set |
| 10 | ø570mm dual-wheels capstan | 1set |
| 11 | High frequency spark tester | 1set |
| 12 | ø500-630mm dual-axis take up |
1set |
| 13 | 1246 automatic packing and wrapping machine | 1 set |
Main parts brand
1.Motor: Siemens
2.Frequency converter: Yaskawa
3.Bearing: NSK (Japan brand)
4.Electrical component: Siemens or Omron
5.PLC controller: Siemens
Our Service
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install and how to use the machine
* Customized design support. * Engineers available to service machinery overseas.
1.did you want but feel difficult to invest a cable plants ?
2.did you feel that it is too long to payback what you invest ?
3.did you feel that the project take too long time and not finish since lacking and difficult to get locally ?
4.did you feel that there is much waste during the project working since the not good plant from the beginning ?
if our experiences and technical can help you , please free to contact with us
