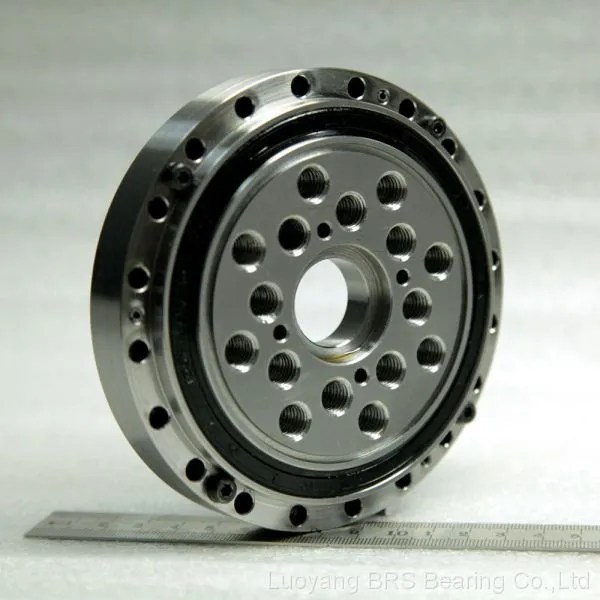

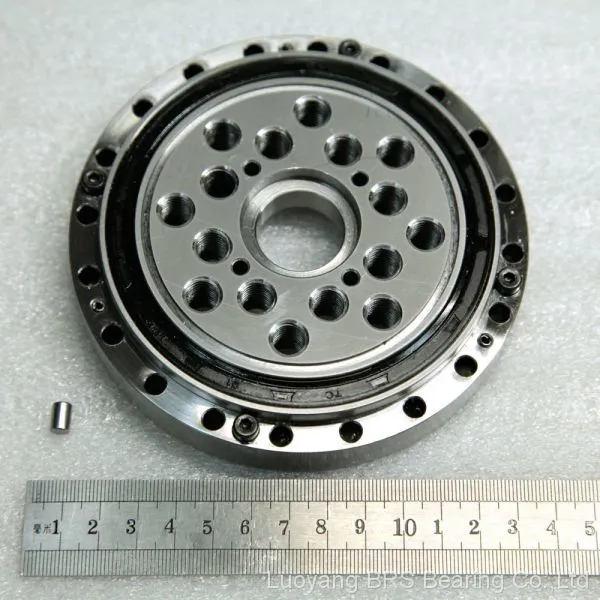

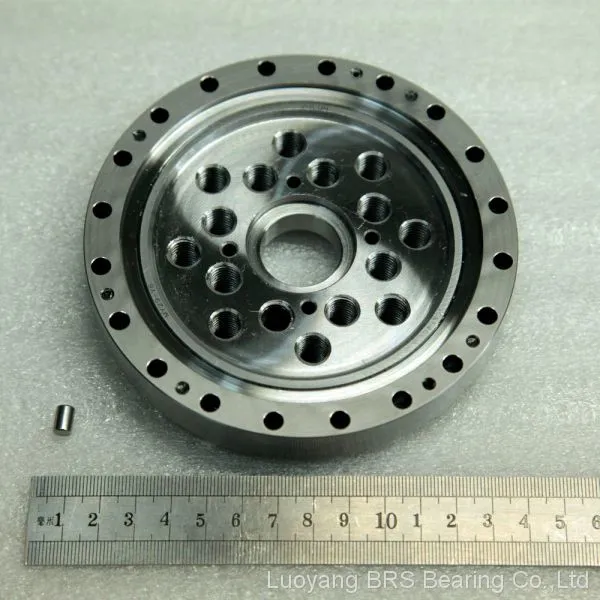

CSF-50 harmonic speed reducer crossed roller bearing for CSG-50 harmonic drive units
model: CSF50-XRB/CSF-50
structure: high rigidity crossed roller bearings with integrated inner ring and separable outer ring, with mounting holes
size: 32/40*157*31mm
sealing: sealed on one side
mass:3.6kg
BRS harmonic speed reducer bearing CSF-XRB Series is characterized by high precision, compact structure, good sealing effect, high loading capacity and high rigidity, it is specially designed for CSF/CSG harmonic speed reducer gear units. Both inner ring and outer ring contain multilayers of precision holes for connecting with working parts.
Models related to CSF-50 cross roller bearing:
| Models | Boundary Dimension (mm) | Mass | ||
| D | d | H | kg | |
| CSF14-XRB | 55 | 9 | 16.5 | 0.25 |
| CSF17-XRB | 62 | 10 | 16.5 | 0.27 |
| CSF20-XRB | 70 | 14 | 16.5 | 0.36 |
| CSF25-XRB | 85 | 20 | 18.5 | 0.65 |
| CSF32-XRB | 112 | 26 | 22.5 | 1.1 |
| CSF40-XRB | 126 | 24/32 | 24 | 1.6 |
| CSF50-XRB | 157 | 32/40 | 31 | 3.6 |
| CSF65-XRB | 210 | 44/52 | 39 | 7.8 |
Suited for hrmonic drive units models:
CSF-14-2UH
CSF-17-2UH
CSF-20-2UH
CSF-25-2UH
CSF-32-2UH
CSF-40-2UH
CSF-45-2UH
CSF-50-2UH
CSF-58-2UH
CSF-65-2UH
More info. of CSF-50 harmonic drive gear units crossed roller bearings are available upon request.
