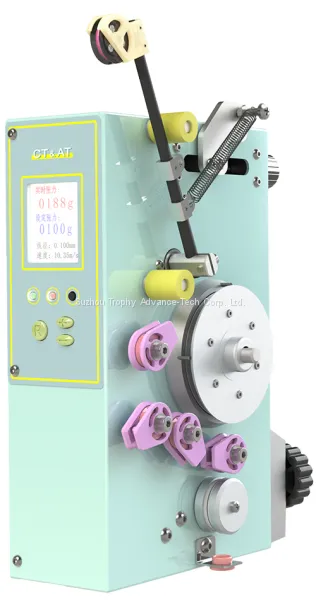

TROPHY Electronic Tensioner MET-SD series with real time tension display and multiple setting for coil winding machines
- 100 Unit / Units per Month
- SHANGHAI
- T/T
Product Details
Brand Name: | TROPHY | Place of Origin: | China | Model Number: | MET-NSD Series |
After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Product Description
MET-SD has a newly developed closed-loop automatic tension adjustment function. The actual tension can always be kept consistent with the pre-set tension.
The operation is simple, the display is intuitive, high precision tension control; extremely fast feedback system tracks the changes in wire travel speed and measure tension in real time; and adjust the output tension accordingly. MET-SD provides multi-stage tension alarm setting, also allows remote setting from winding machine’s PLC.
Advantages:
- Electronic constant tension control technology
- Multiple tension setting
- Switching between pre-set tensions are simple and easy
- Built-in wire break detection
- Built-in upper and lower limit alarm output (multiple setting)
- Compatible with stand-alone settings, and remote PLC settings for multiple tensioners
MET series
Part Number | Tension Range | Suitable Wire Size |
MET-NSD100 | 15-100g | 0.04-0.12mm |
MET-NSD300 | 30-300g | 0.06-0.22mm |
MET-NSD500 | 50-500g | 0.08-0.30mm |
MET-NSD1000 | 100-1000g | 0.10-0.45mm |
MET-NSD2000 | 200-2000g | 0.15-0.65mm |
