Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Cutting Machine > FLC-3015E-1000W Trade Assurance 1000W Raycus Laser CNC Sheet Metal Laser Fiber Lazer Cutting Machine

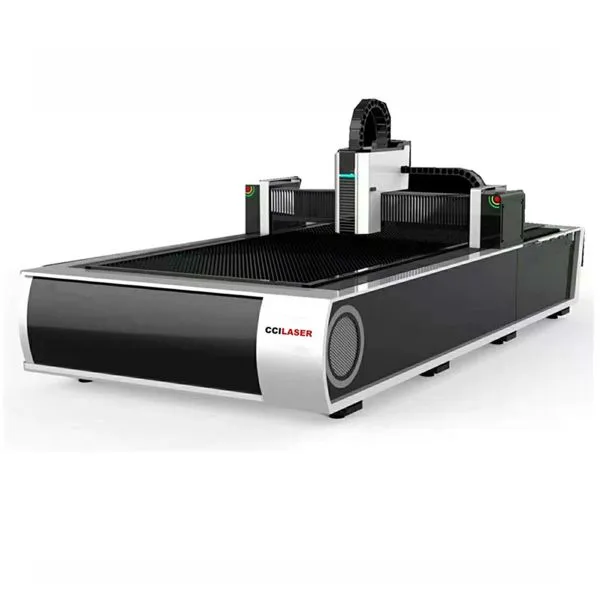

FLC-3015E-1000W Trade Assurance 1000W Raycus Laser CNC Sheet Metal Laser Fiber Lazer Cutting Machine
US$ 18500 - 22500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
CCILASER
Place of Origin:
China
Model Number:
FLC-3015E-1000W
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port, China
Delivery Detail:
15 days
Related Products
-
FLC-3015C-1500W Trade Assurance Heavy Duty 1500W IPG Carbon Steel Stainless Steel Fiber Laser Cutting MachineUS$ 42500 - 48500MOQ: 1 Set -
FLC-6020T 1000w Stainless Steel Carbon Steel Metal CNC Tube Fiber Laser Cutting MachineUS$ 35700 - 39286MOQ: 1 Set
-
Good Price Fiber Laser Cutting Machine for Metal 3015FR Fiber Laser Cutting Machine 1000wNegotiableMOQ: 1
-
Fiber Laser Cutting Equipment for Sheet Metal With 1500W Power OutputNegotiableMOQ: 100 Pieces
-
Energy Saving PM VSD 22 KW 37 KW 16 Bar 20 Bar Screw Air Compressor For Fiber Laser Cutting MachineUS$ 390 - 450MOQ: 1 Unit
Brand Name
CCILASER
Place of Origin
China
Model Number
FLC-3015E-1000W
Certification
CE, ISO
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Graphic Format Supported
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Control Software
CypCut flat cutting software
Cooling Mode
Water Cooling
CNC or Not
Yes
Cutting Speed
100m/min
Cutting Area
1500*3000mm/ 2000*4000mm/ 2000*6000mm
Cutting Thickness
10mm carbon steel and 6mm stainless steel
Applicable Material
Metal
Laser Type
Fiber Laser
Machine Name:
FLC-3015E-1000W Trade Assurance 1000W Raycus laser CNC sheet metal laser fiber lazer cutting machine
Machine Model:
FLC-3015E-1000W
Features:
High-rigidity heavy chassis is reducing the vibration generated during high speed cutting work greatly.
Gantry double-drive structure is installed imported rack & pinion transmission system, which improves the production efficiency.
High-performance cast aluminum guide rail, which passed finite element analysis. It can achieve high acceleration arc cutting work.
Open type workbench, easy to operate and small footprint.
Application material:
It can cut variety of metal plates. Such as stainless steel, carbon steel, manganese steel, galvanized sheet, various alloy sheets, rare metals.
Industry applications:
Kitchen fixtures, hardware cabinets, sheet metal processing, auto parts, refrigerators, air conditioners, elevators, hotel metal supplies, etc.
Technical Parameters:| Model | FLC-3015E/ FLC*4020E/ FLC-6020E |
Position accuracy | +/-0.01mm/1000mm |
| Cutting scope | 3000*1500mm/ 4000*2000mm/6000*2000mm | Reposition accuracy | +/-0.03mm/1000mm |
| Laser type | Fiber Laser Generator | Graphic format supported | CAD, DXF, etc. |
| Power rate | 1000-3000W | Working environment | Temp: 0-40 centi degree; Humidity: ≤80%; No condensation |
| Transmission system | Gantry Double-drive System | Total power | 380/220V 50/60Hz |
| Lubrication system | Full Automatic | Power rate | About 17Kw |
| Maxiumum speed | 100m/min | Overall Dimension | 4500/5500/7500*2450*1800mm |
| Maximum accelerated speed | 1.0G | Gross Weight | 3500/4500/6000Kgs |
